Motherboard Black Panther H61 DDR3 Socket LGA 1155

Detail Motherboard Black Panther H61 DDR3 Socket LGA 1155

Black Panther H61 DDR3 Socket LGA 1155
Garansi resmi 1 tahun.
Motherboard ini "Hanya support" sampai dengan Processor Intel SandyBridge 32nm.
(Tidak support Processor Intel Pentium IvyBridge 22nm seperti G2030).

MAINBOARD H61-B75 SUPPORT USB 3.0 SOKET 1155

>>>>>>>>>>>>>>>>>>>>>>>>

>>> Garansi Resmi
>>> Dapatkan Produk Yang Asli Dan Original Ditoko GT Computer

» Spesifikasi

⁂ CPU
⁂ INTEL LGA 1155 Socket
⁂ Support INTEL®Sandy Bridge
⁂ INTEL®Series Processors(32nm).
⁂ Chipset INTEL ®H61 Express Chipset.
⁂ Memory Dual Channel DDR3 memory technology
⁂ 2*240-pin DDR3 DIMM slots
⁂ Supports DDR3 1333/1066
⁂ non-ECC,un-buffered
⁂ memory Max 8GB.
⁂ Expansion Slots 1*PCI Express x 16 slot
⁂ 2*PCI Express x1 slots
⁂ Storage Embedded INTEL®H61 Chipset:
⁂ 4*Serial ATA2 3GB/s coonectors.
⁂ Audio 6-channel HD Audio CODEC
⁂ Ethernet LAN PCI-E Gigabit LAN
⁂ USB Embedded 8*USB 2.0/1.1
⁂ Special Feataures 3+1+1 Phase CPU Power Support
⁂ INTEL® H61 Express Chipset
⁂ Rear Panel I/O 4*USB 2.0/1.1 ports
⁂ 1*PS/2 keyboard/MS port
⁂ 1*RJ-45 port
⁂ 1*Audio I/O port
⁂ 1*Coaxial Output
⁂ 1*DVI Port & 1*VGA port
⁂ Internal I/O 4*USB 2.0/1.1 headers for 4
⁂ USB 2.0/1.1 port
⁂ CPU / Chassis Fan connectors
⁂ 1*8-pin ATX 12v power connector
⁂1*24 pin ATX Power connector
⁂ 1*COM port
⁂ 1*HDMI_SPDIF header
⁂ BIOS AMI 32MB SMT Flash ROM
⁂ Form Factor Micro-ATX Form Factor (245mm X 180mm)

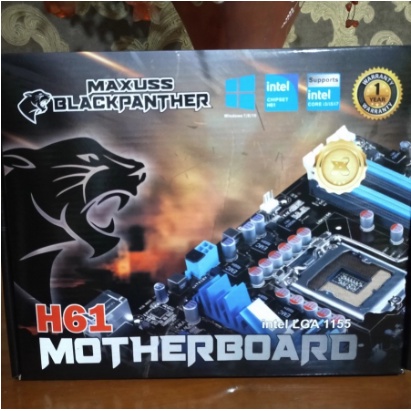

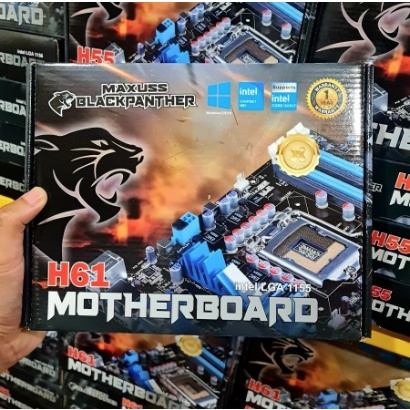

Gambar produk
