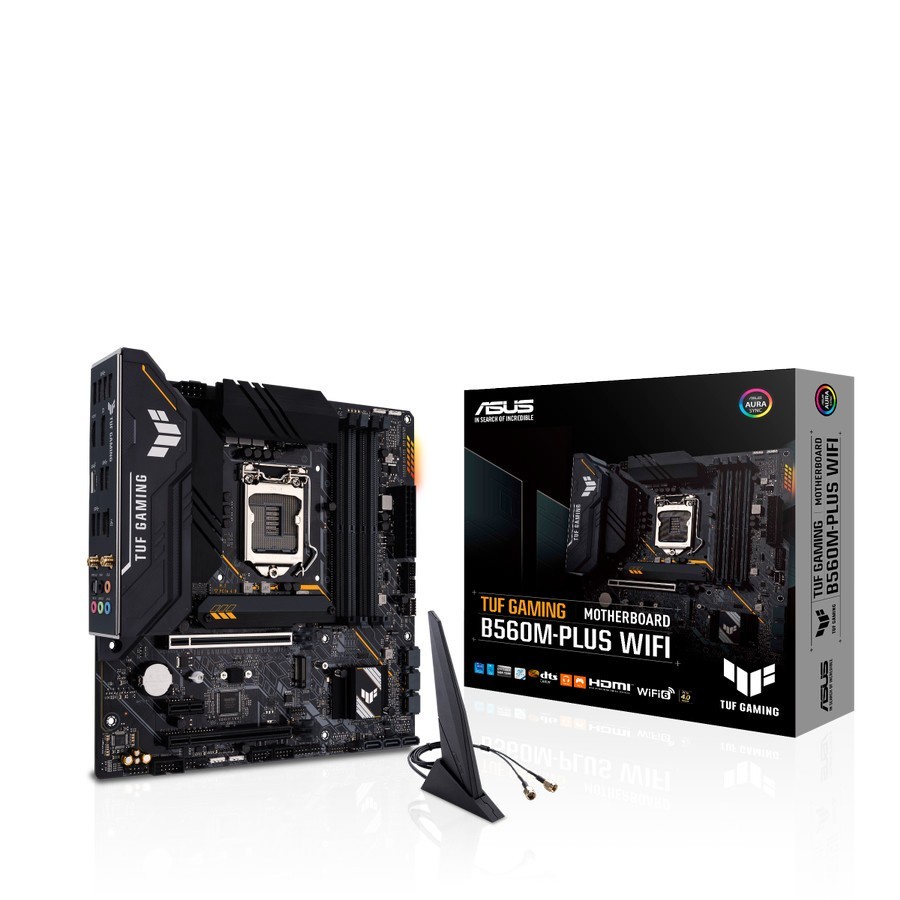

MOTHERBOARD ASUS TUF GAMING B560M PLUS WIFI LGA 1200 MAINBOARD INTEL

Detail MOTHERBOARD ASUS TUF GAMING B560M PLUS WIFI LGA 1200 MAINBOARD INTEL

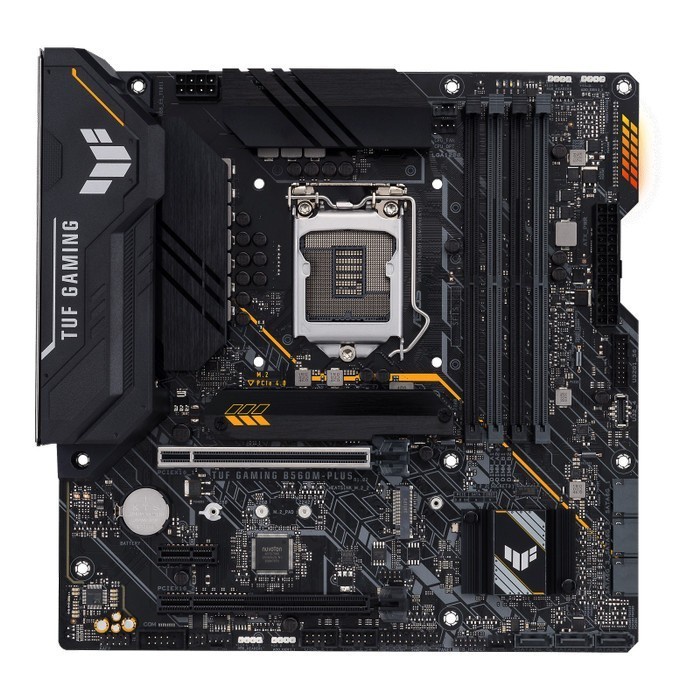

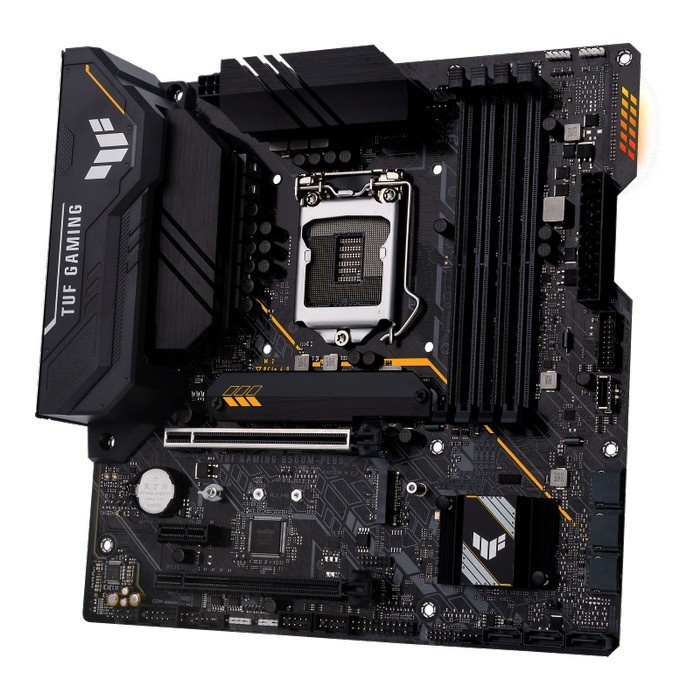

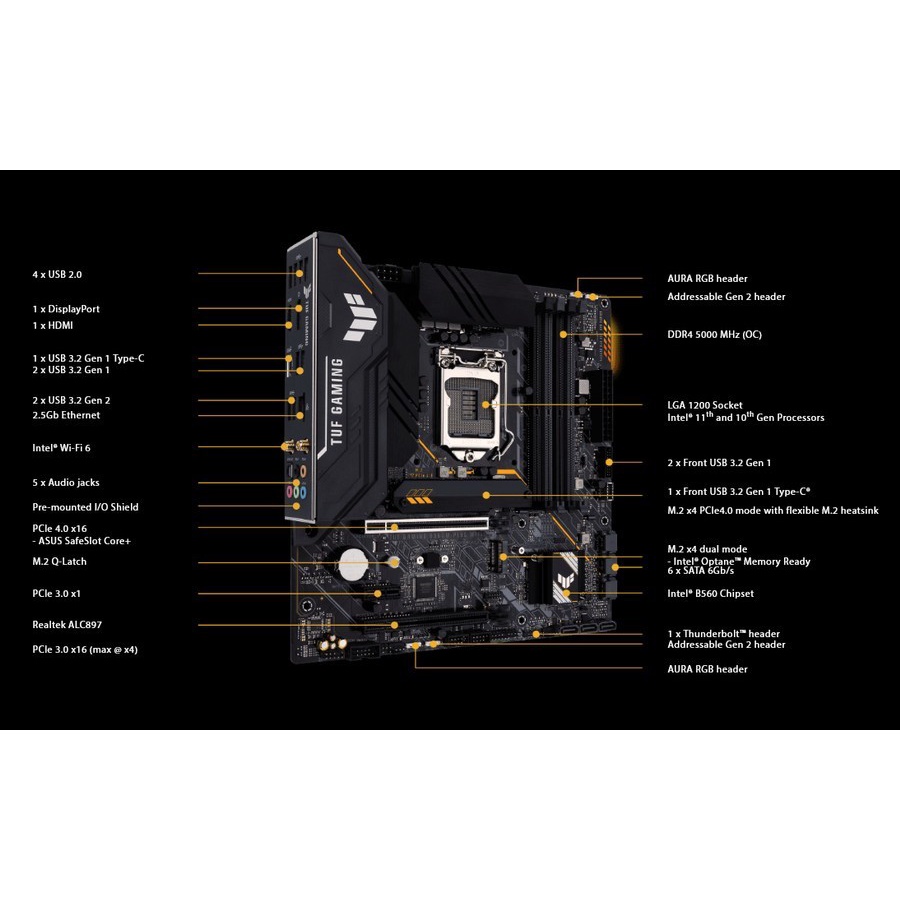

ASUS TUF GAMING B560M-PLUS WIFI Motherboard (DDR4, LGA1200)

CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset : B560
Memory
Max Memory Size:128GB
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
Graphics

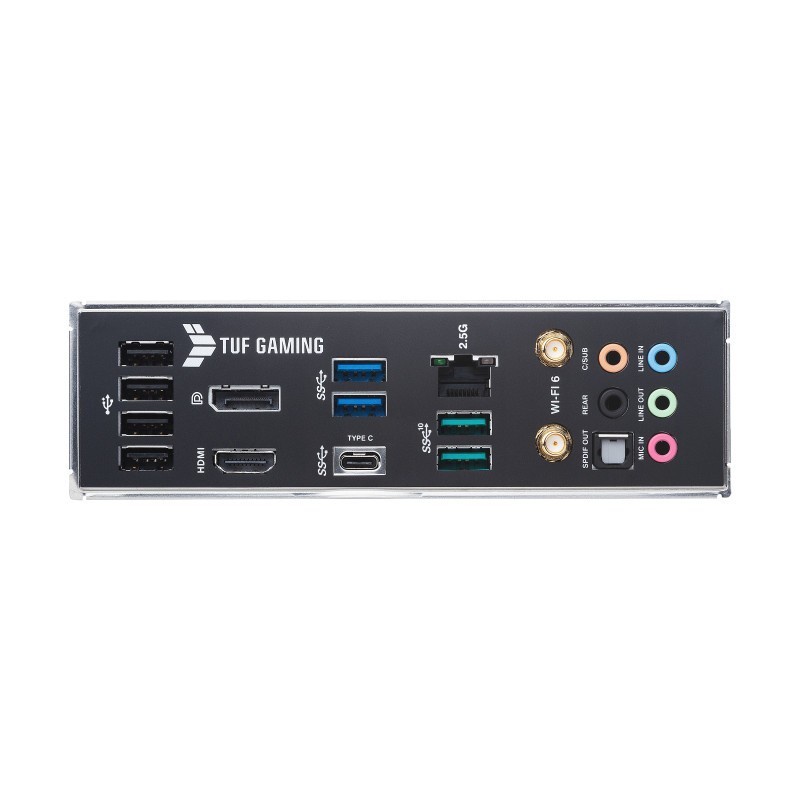

1 x DisplayPort 1.4
1 x HDMI™ 1.4 / 2.0**
* Graphics specifications may vary between CPU types.
** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .
Expansion Slots
1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot(s)*
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel®10th Gen processors support PCIe 3.0 x16
Intel® B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slots
Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports
Wireless & Bluetooth : Intel® Wi-Fi 6
2 x AURA Addressable Gen 2 header(s)
2 x AURA RGB header(s)

Garansi Resmi 3 Tahun
