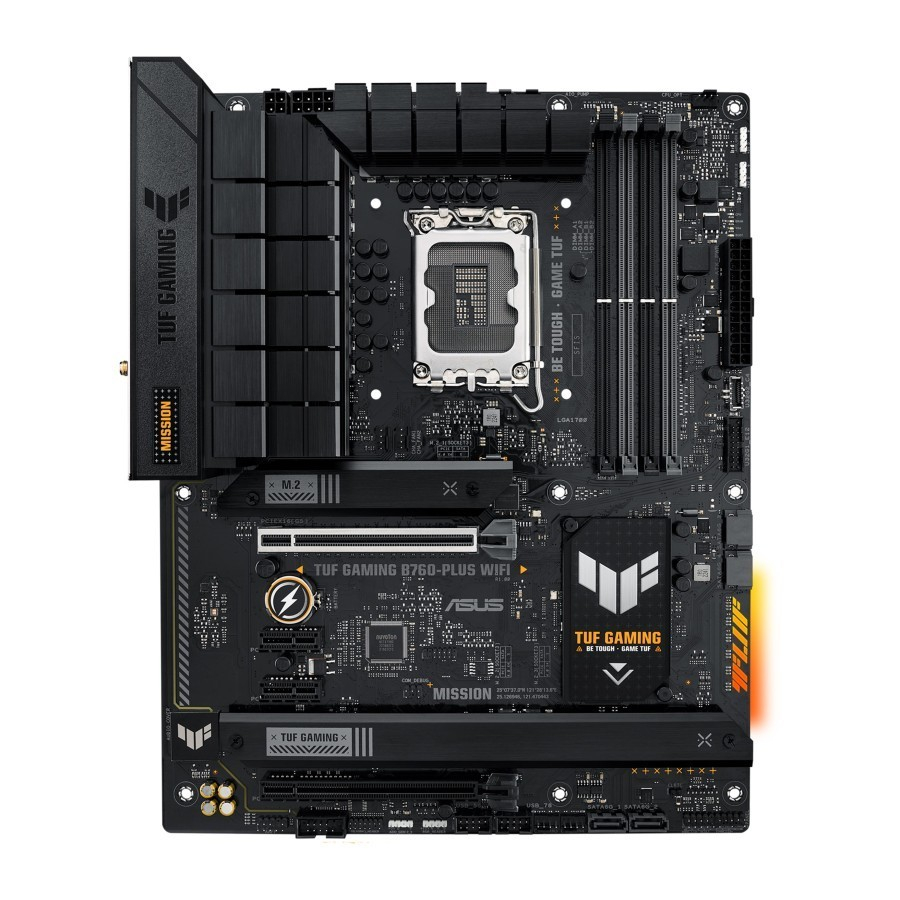

Motherboard ASUS TUF GAMING B760-PLUS WIFI DDR5 - Intel Motherboard LGA1700

Detail Motherboard ASUS TUF GAMING B760-PLUS WIFI DDR5 - Intel Motherboard LGA1700

CPU
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
- Intel® B760 Chipset

Memory
- 4 x DIMM, Max. 128GB, DDR5 Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II

Graphics
1 x DisplayPort
1 x HDMI™ Port

Expansion Slots
- Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
- Intel® B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1 slots*
* PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode

Storage
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
- Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard

Wireless & Bluetooth
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Bluetooth® v5.2

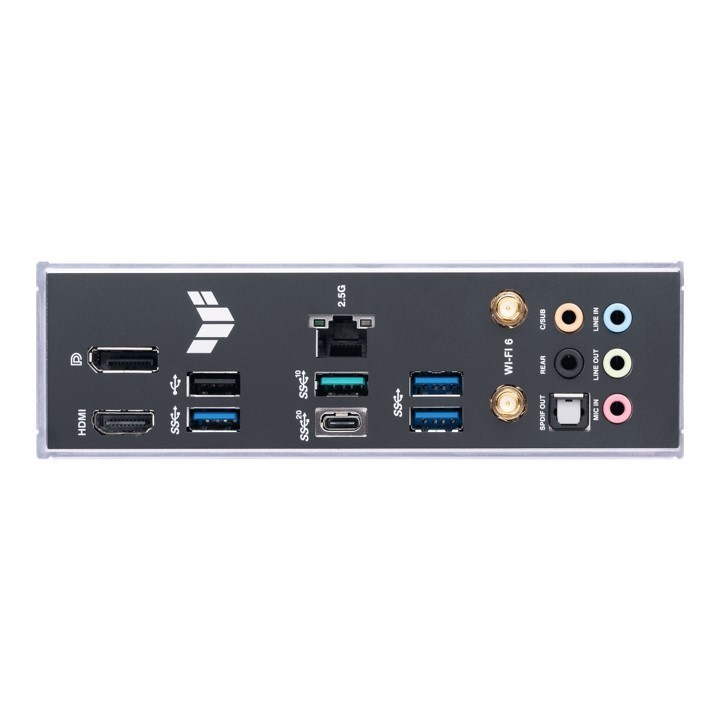

Back Panel I/O Ports
- 1 x USB 3.2 Gen 2x2 Port (1 x USB Type-C®)
- 1 x USB 3.2 Gen 2 Port (1 x Type-A)
- 3 x USB 3.2 Gen 1 Ports (3 x Type-A)
- 1 x USB 2.0 Port (1 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ Port
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet Port
- 5 x Audio Jacks
- 1 x Optical S/PDIF Out Port

Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC

Operating System
- Windows® 11, Windows® 10 64-bit

Form Factor
- ATX Form Factor (30.5 cm x 24.4 cm)
