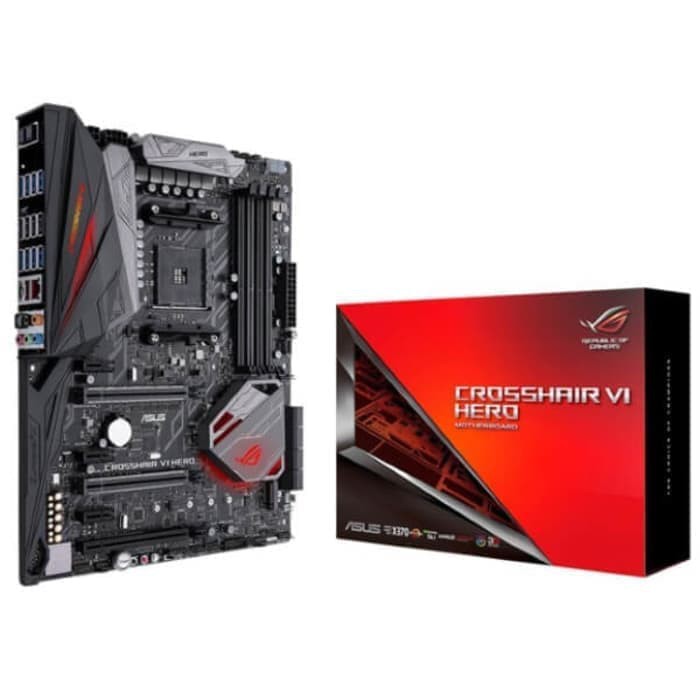

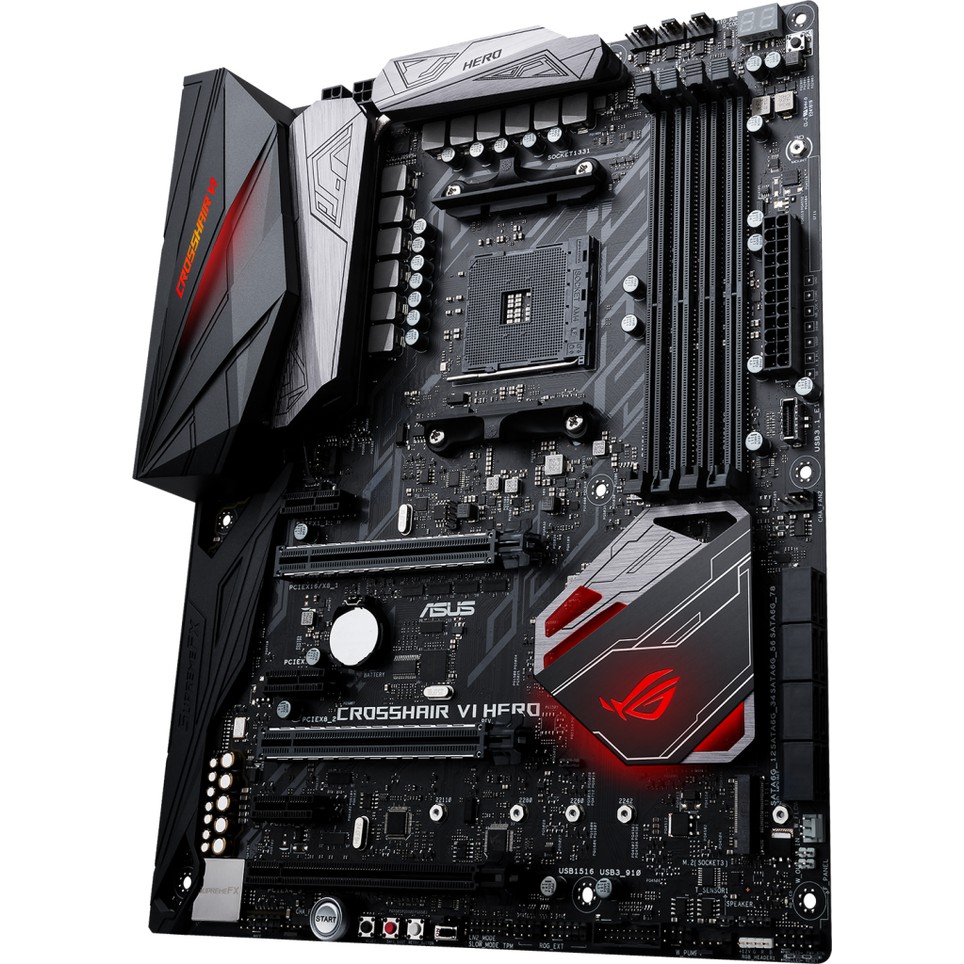

MOTHERBOARD ASUS ROG CROSSHAIR VI HERO SOCKET AM4 DDR4

Detail MOTHERBOARD ASUS ROG CROSSHAIR VI HERO SOCKET AM4 DDR4

- CPU : AMD AM4 Socket for AMD Ryzen/7th Generation A-series/Athlon Processors,
Supports AM4 Socket 14 nm CPU, Supports CPU up to 8 cores

- Chipset : AMD X370 Chipset

- Memory : 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2666/2400/2133 MHz Non-ECC

- Multi-GPU Support : Supports NVIDIA 2-Way SLI Technology *3, Supports AMD CrossFireX Technology

- Expansion Slots : AMD Ryzen Processors 2 x PCIe 3.0/2.0 x16 (x16 or dual x8), AMD 7th Generation A-series/Athlon Processors, 1 x PCIe 3.0/2.0 x16 (x8 mode), AMD X370 chipset, 1 x PCIe 2.0 x16 (max at x4 mode) *1, 3 x PCIe 2.0 x1

- Expansion Slots
AMD Ryzen Processors 2 x PCIe 3.0/2.0 x16 (x16 or dual x8), AMD 7th Generation A-series/Athlon Processors 1 x PCIe 3.0/2.0 x16 (x8 mode), AMD X370 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *1, 3 x PCIe 2.0 x1

- Storage :
AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-series/Athlon Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
AMD X370 chipset : 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10

- LAN : Intel I211-AT, 1 x Gigabit LAN Controller(s), Anti-surge LANGuard, ROG GameFirst IV

- Audio : ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

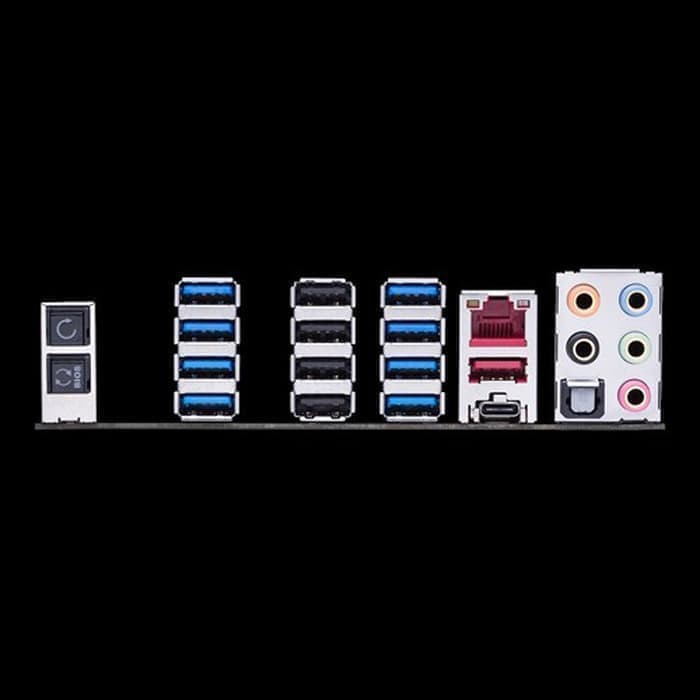

- USB Ports
AMD Ryzen/7th Generation A-series/Athlon Processors : 4 x USB 3.0 port(s) (4 at back panel, blue)
AMD X370 chipset : 1 x USB 3.1 front panel connector port(s)
AMD X370 chipset : 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
AMD X370 chipset : 6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)
ASMedia USB 3.1 controller : 2 x USB 3.1 port(s) (2 at back panel, black+red, Type-A +
