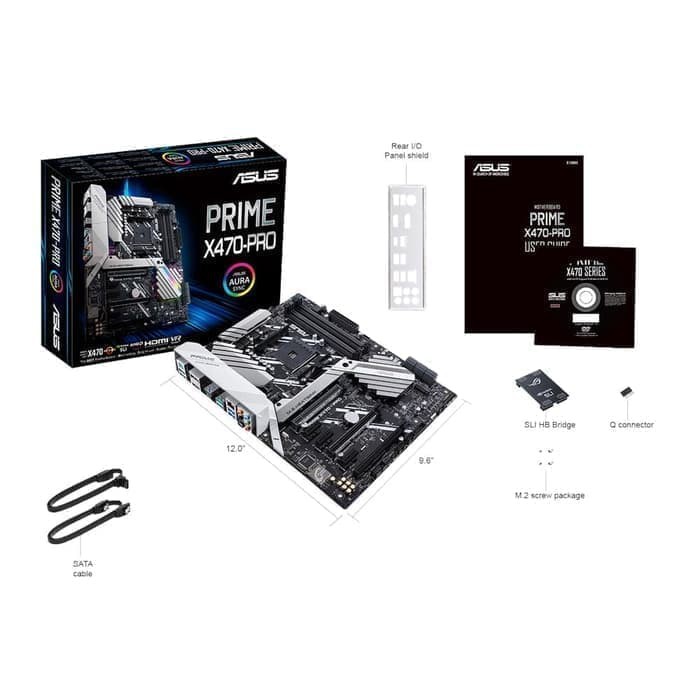

Motherboard ASUS - PRIME X470-PRO Ryzen AMD AM4 ATX

Detail Motherboard ASUS - PRIME X470-PRO Ryzen AMD AM4 ATX

CPU : AMD AM4 Socket AMD Ryzen' 2nd Generation/Ryzen' with Radeon' Vega Graphics/Ryzen' 1st Generation/7th Generation A-series/Athlon X4 Processors
Supports CPU up to 8 cores

- Chipset : AMD X470

- Memory : AMD Ryzen' 2nd Generation Processors, 4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000 (O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

- Graphic : Integrated Graphics in the AMD Ryzen' with Radeon' Vega Graphics/ 7th Generation A-Series APU
Multi-VGA output support : HDMI/DisplayPort ports

- Multi-GPU Support : AMD Ryzen' 2nd Generation/Ryzen' 1st Generation Processors, Supports NVIDIA" 2-Way SLI' Technology, Supports AMD CrossFireX' Technology, AMD Ryzen' with Radeon' Vega Graphics/AMD 7th Generation A-Series/Athlon X4 Processors, Supports AMD CrossFireX' Technology

- Expansion Slots : AMD Ryzen' 2nd Generation/ Ryzen' 1st Generation Processors : 2 x PCIe 3.0 x16 (x16 or dual x8)
AMD Ryzen' with Radeon' Vega Graphics /7th Generation A-Series/Athlon X4 Processors : 1 x PCIe 3.0 x16 (x8 mode)
AMD X470 chipset : 1 x PCIe 2.0 x16 (max at x4 mode) *1, 3 x PCIe 2.0 x1

- Storage : AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110, AMD 7th Generation A-Series/Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110, AMD X470 chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280, 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10

- LAN : Intel® I211-AT

- Audio : Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

- Form Factor : ATX Form Factor, 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
