Motherboard ASUS - PRIME X399-A Threadripper AMD TR4 EATX

Detail Motherboard ASUS - PRIME X399-A Threadripper AMD TR4 EATX

CPU
AMD SocketTR4 for AMD Ryzen™ Threadripper™ Processors
* Refer to www•asus•com for CPU support list

Chipset
AMD X399

Memory
AMD Ryzen™ Threadripper™ Processors
8 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
* Refer to www•asus•com for the Memory QVL (Qualified Vendors Lists).

Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology

Expansion Slots
AMD Ryzen™ Threadripper™ Processors
4 x PCIe 3.0 x16 (single@x16, dual@x16/x16, triple@x16/x16/x8 mode)
AMD X399 chipset
1 x PCIe 2.0 x4 (max at x4 mode)
1 x PCIe 2.0 x1

Storage
AMD Ryzen™ Threadripper™ Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x U.2 port
AMD X399 chipset :
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Operating System
Windows® 10 64-bit

Form Factor
Extended ATX Form Factor
12 inch x 10.6 inch ( 30.5 cm x 26.9 cm )

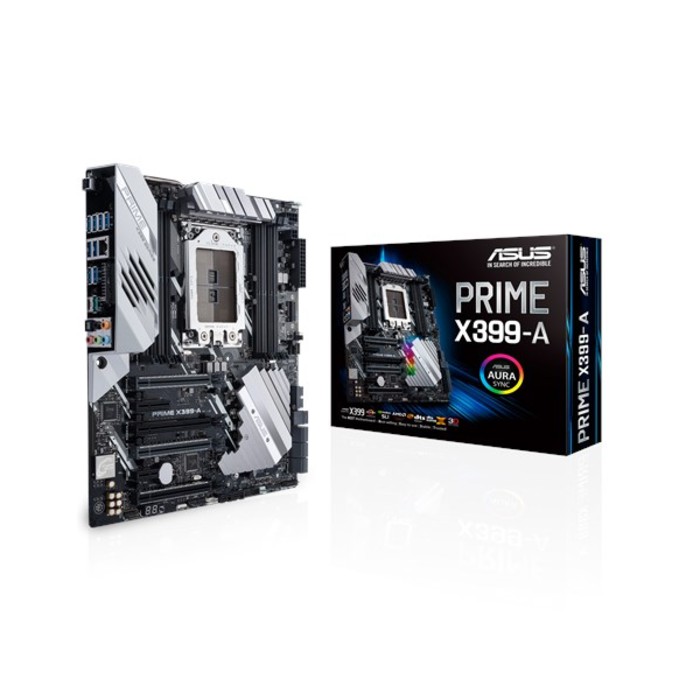

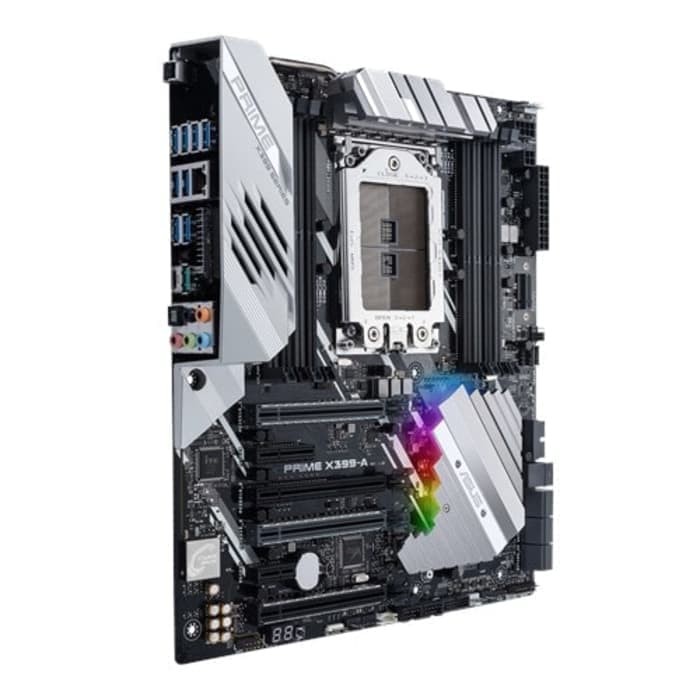

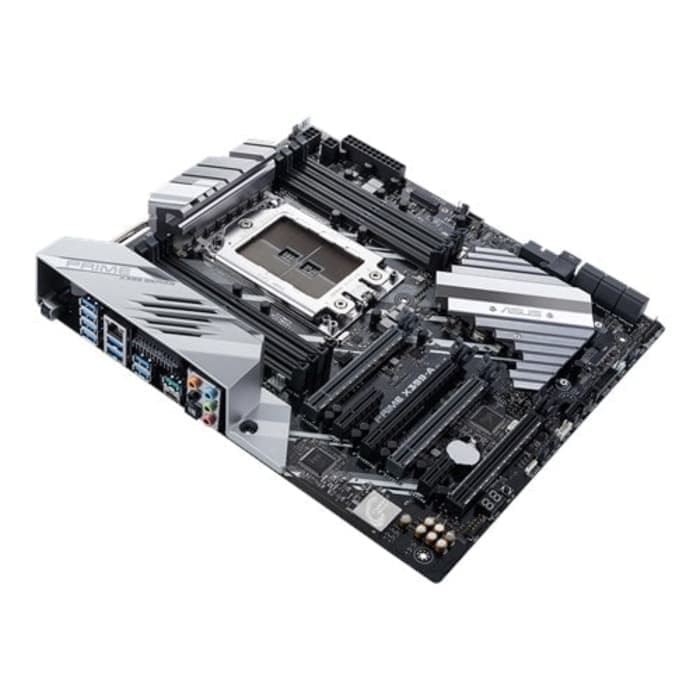

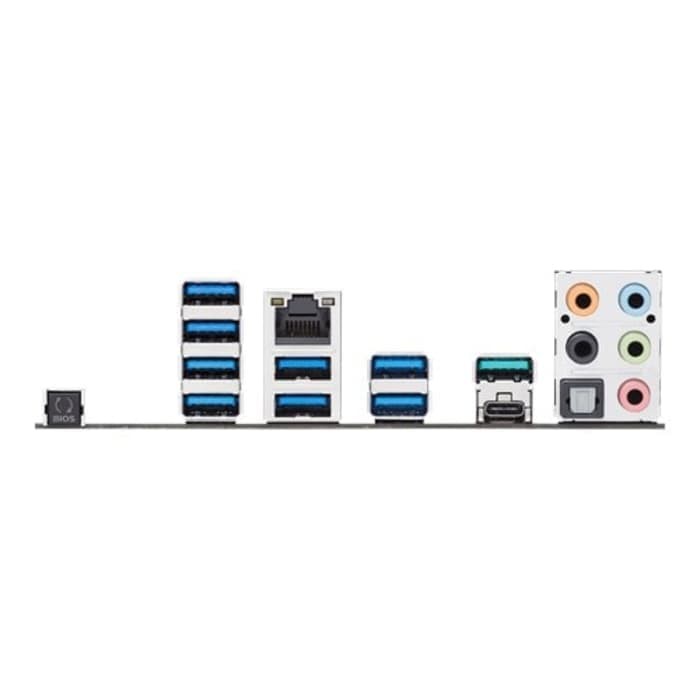

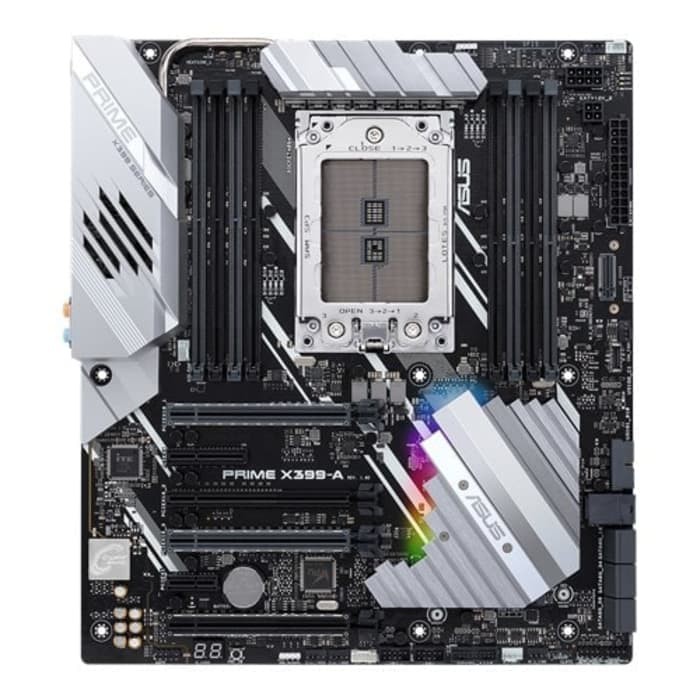

Gambar produk
