MOTHERBOARD ASUS PRIME H510M E LGA 1200 INTEL H510 ME DDR4 SATA

Detail MOTHERBOARD ASUS PRIME H510M E LGA 1200 INTEL H510 ME DDR4 SATA

Motherboard ASUS PRIME H510M E LGA 1200 Intel H510 ME DDR4 SATA 3

CPU: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset: Intel® H510 Chipset
Memory: DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Graphics
1 x DisplayPort 1.4
1 x D-Sub
1 x HDMI™ 1.4 / 2.0**
* Graphics specifications may vary between CPU types.
Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16
Intel® H510 Chipset
2 x PCIe 3.0 x1 slots

Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H510 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* The M.2 slot shares bandwidth with SATA6G_2. When a device in SATA mode is installed on the M.2 slot, SATA6G_2 port cannot be used.

Garansi 3 Tahun

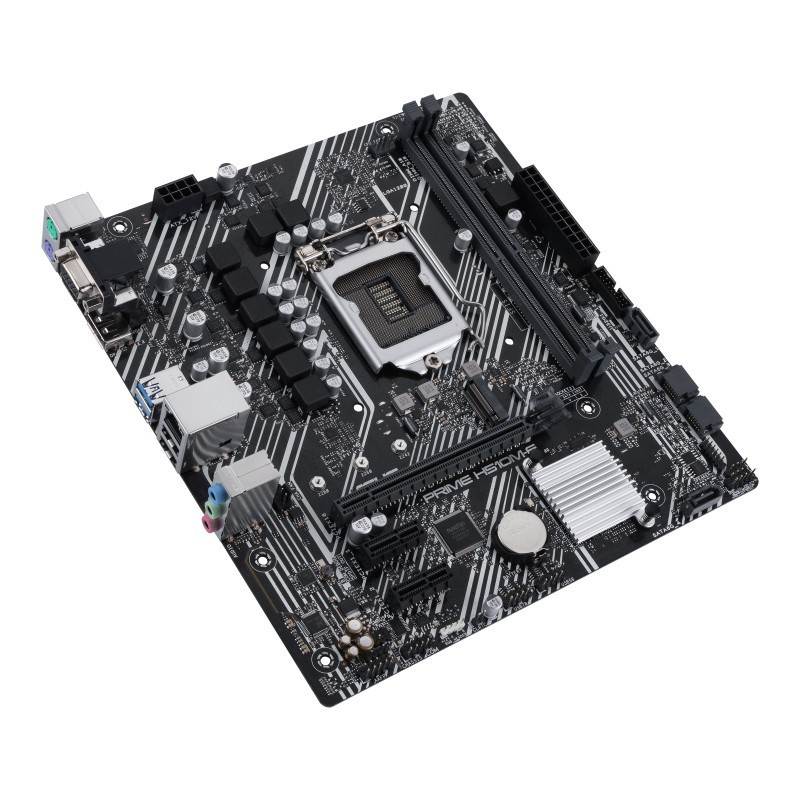

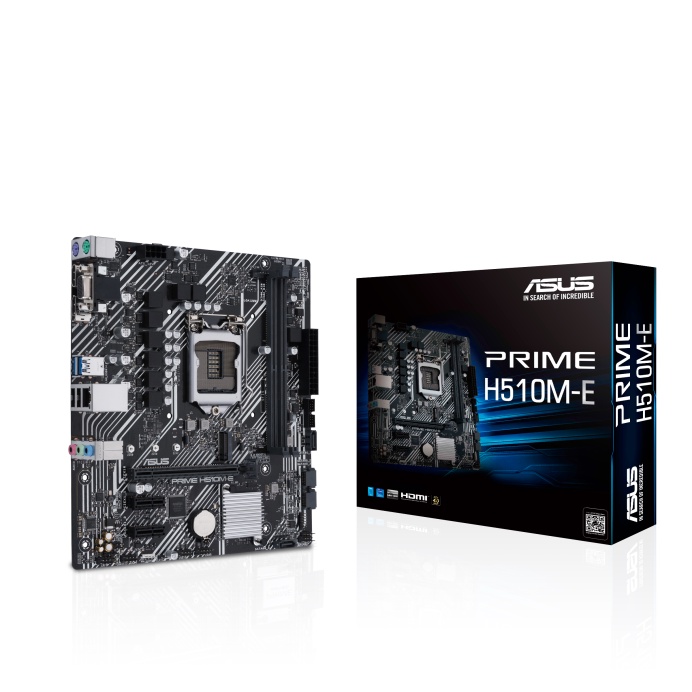

Gambar produk
