Detail Motherboard ASUS Prime H510M E LGA 1200 Intel H510 ME DDR4 SATA
Motherboard ASUS PRIME H510M E LGA 1200 Intel H510 ME DDR4 SATA 3

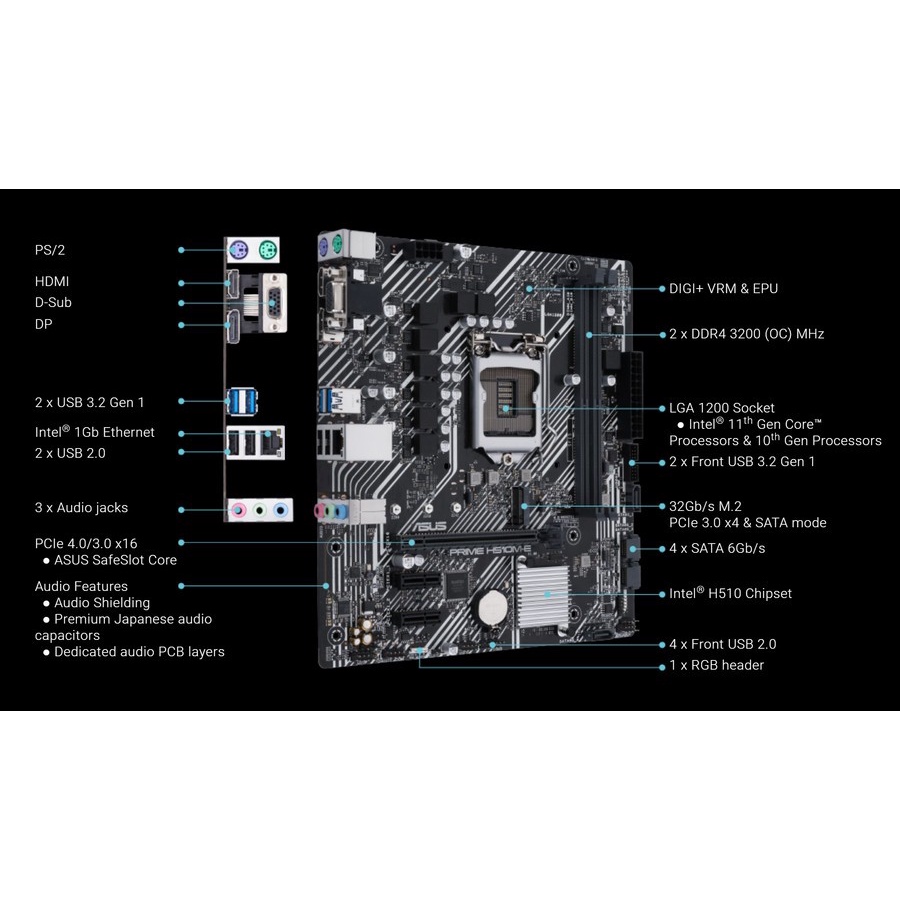

CPU : Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel 14 nm CPU : Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** Chipset : Intel H510 Chipset Memory : DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Graphics 1 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4 / 2.0**
- Graphics specifications may vary between CPU types.Intel 11th & 10th Gen Processors1 x PCIe 4.0/3.0 x16 slot - Intel - 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16Intel H510 Chipset : 2 x PCIe 3.0 x1 slotsStorage : Supports 1 x M.2 slot and 4 x SATA 6Gb/s portsIntel H510 Chipset : M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s ports - The M.2 slot shares bandwidth with SATA6G2. When a device in SATA mode is installed on the M.2 slot, SATA6G2 port cannot be used.
