Motherboard ASUS PRIME H410M-K LGA 1200 DDR4 MATX

Detail Motherboard ASUS PRIME H410M-K LGA 1200 DDR4 MATX

Motherboard ASUS PRIME H410M-K (LGA 1200,DDR4,H410)
SPECIFICATION :

CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H410
Memory
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively
Integrated Graphics Processor
1 x DVI-D
1 x D-Sub
*Graphics specifications may vary between CPU types.
Expansion Slots
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® H410 Chipset
2 x PCIe 3.0 x1
Storage
Total supports 4x SATA 6Gb/s ports
Intel® H410 Chipset :
4 x SATA 6Gb/s port(s)
LAN
Realtek® RTL8111H
Audio
Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

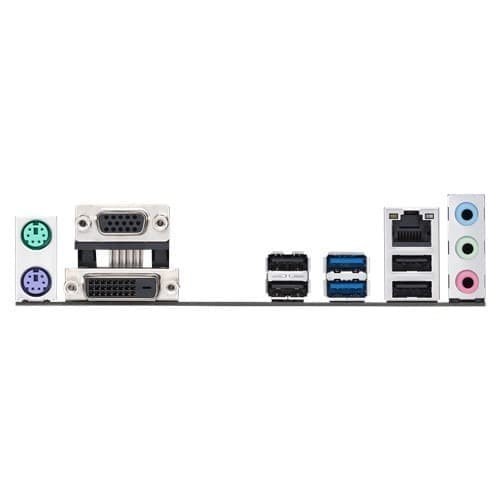

USB Ports
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
Form Factor
mATX Form Factor
8.9 inch x 7.9 inch ( 22.6 cm x 20.3 cm )
GARANSI RESMI 3 TAHUN

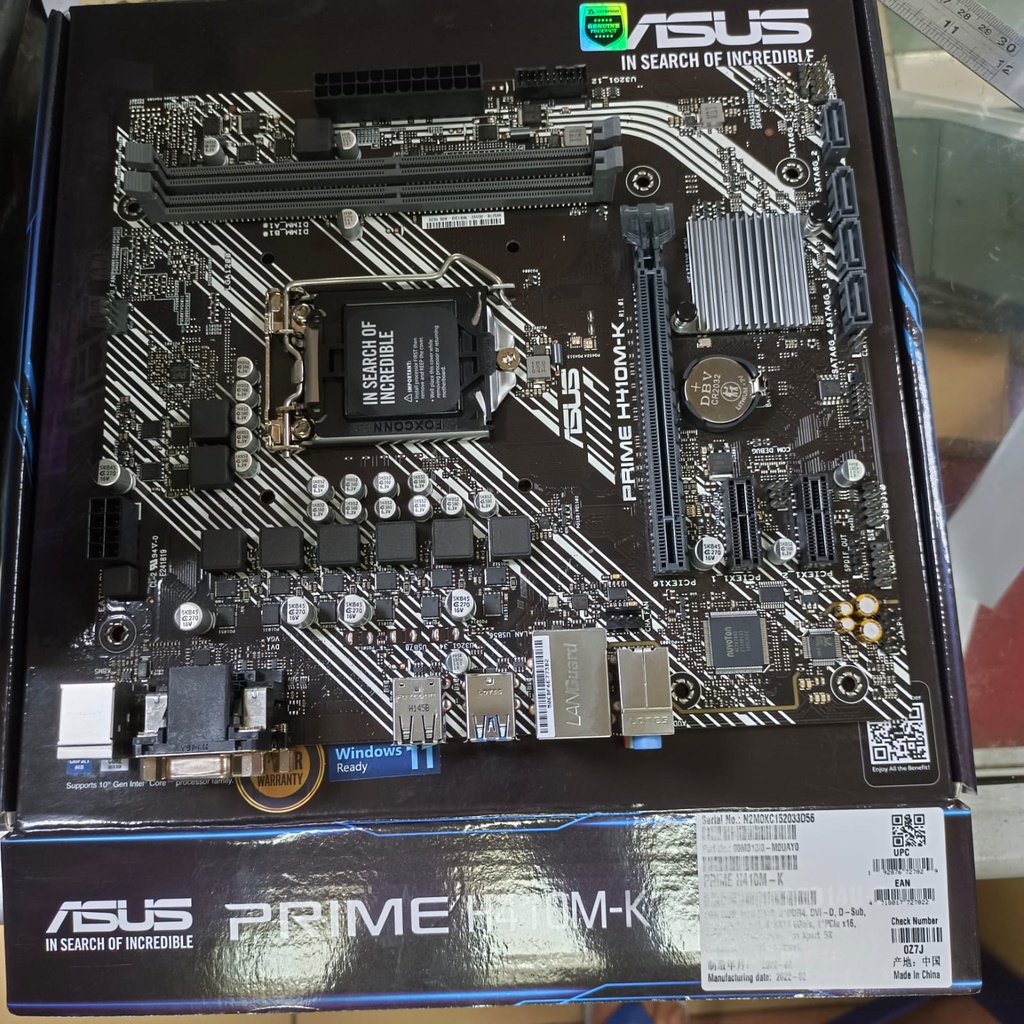

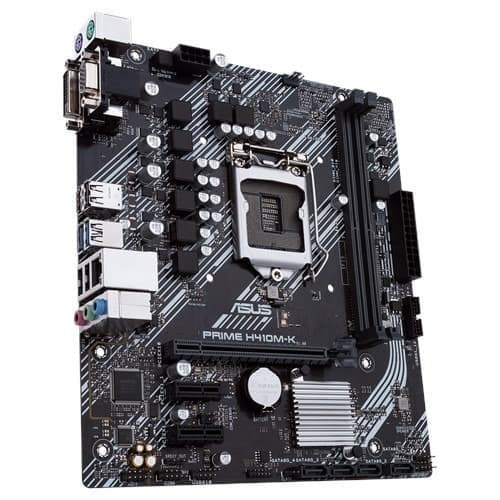

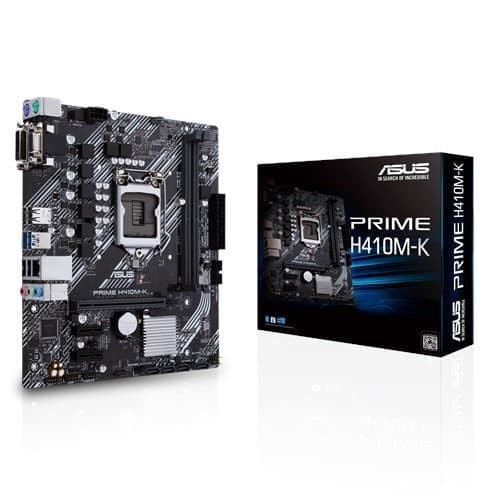

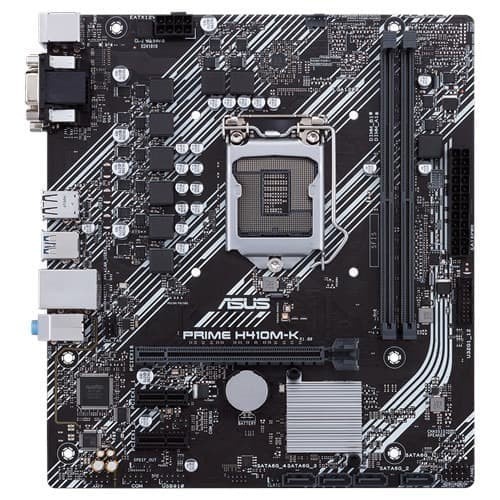

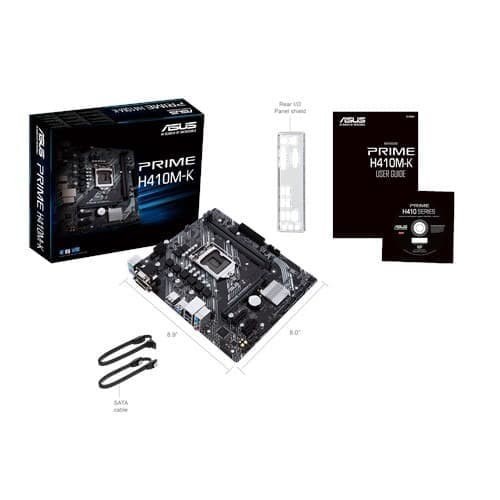

Gambar produk
