Motherboard Asus PRIME H410M-E Mobo H410 - LGA1200

Detail Motherboard Asus PRIME H410M-E Mobo H410 - LGA1200

Motherboard Asus PRIME H410M-E Mobo H410 - LGA1200

CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset : Intel® H410

Memori
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Grafis
Integrated Graphics Processor
1x D-Sub
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.

Slot Ekspansi
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® H410 Chipset
2 x PCIe 3.0 x1

Storage
Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H410 Chipset :

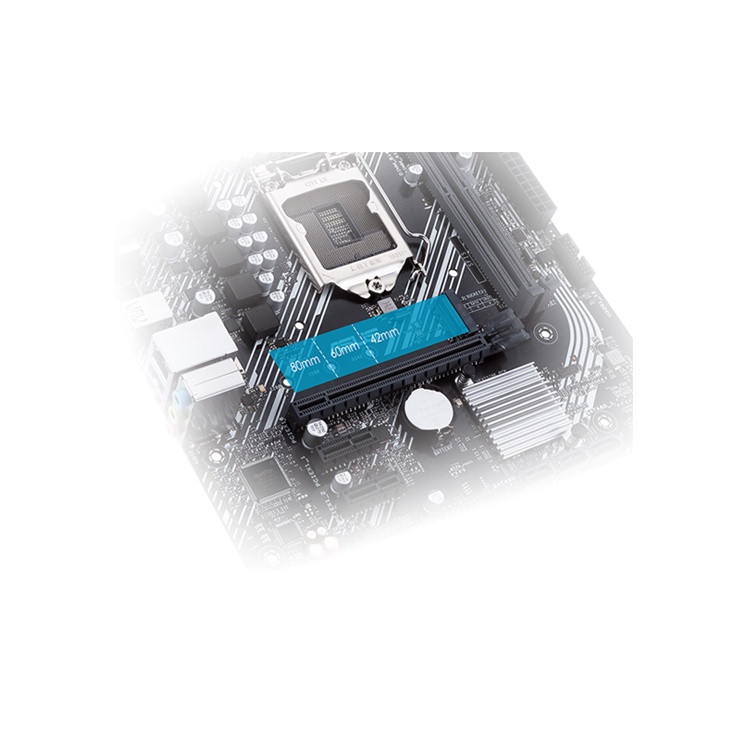

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1
4 x SATA 6Gb/s port(s)

I/O Internal :
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps)
2 x USB 2.0 connector(s) support(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector

LAN : Realtek® RTL8111H
BIOS :128 Mb Flash ROM, UEFI AMI BIOSSistem Operasi
Windows® 10 64-bit
Form Factor :mATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )

GARANSI 3TAHUN
