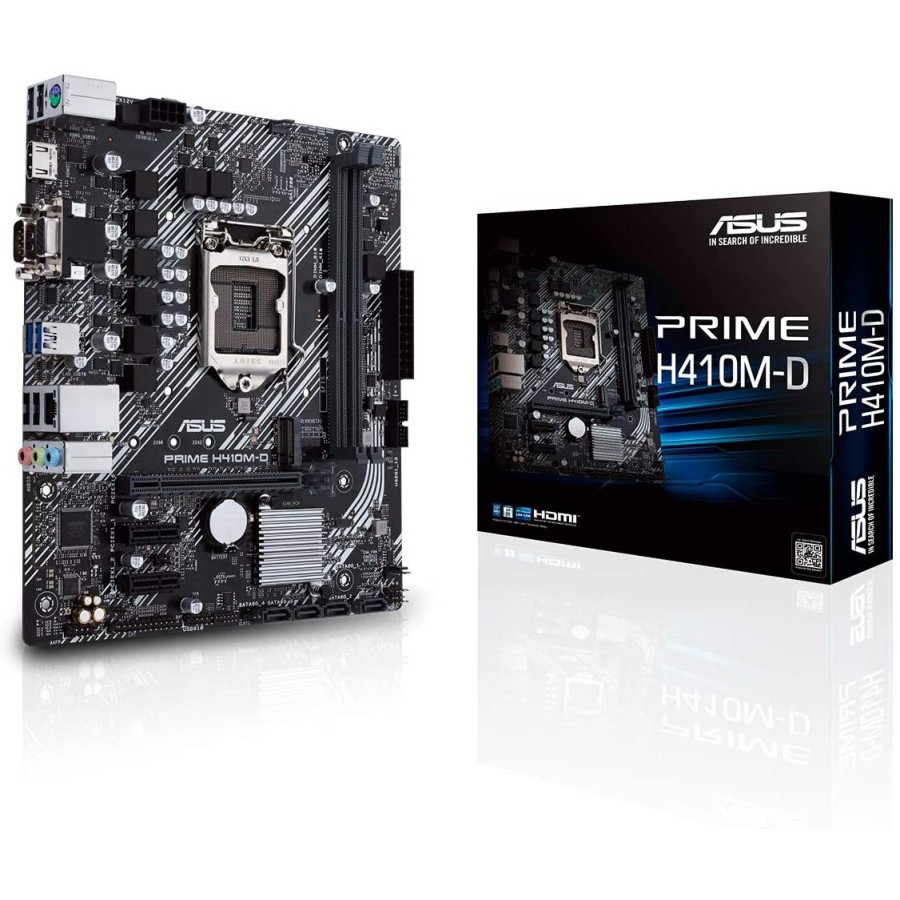

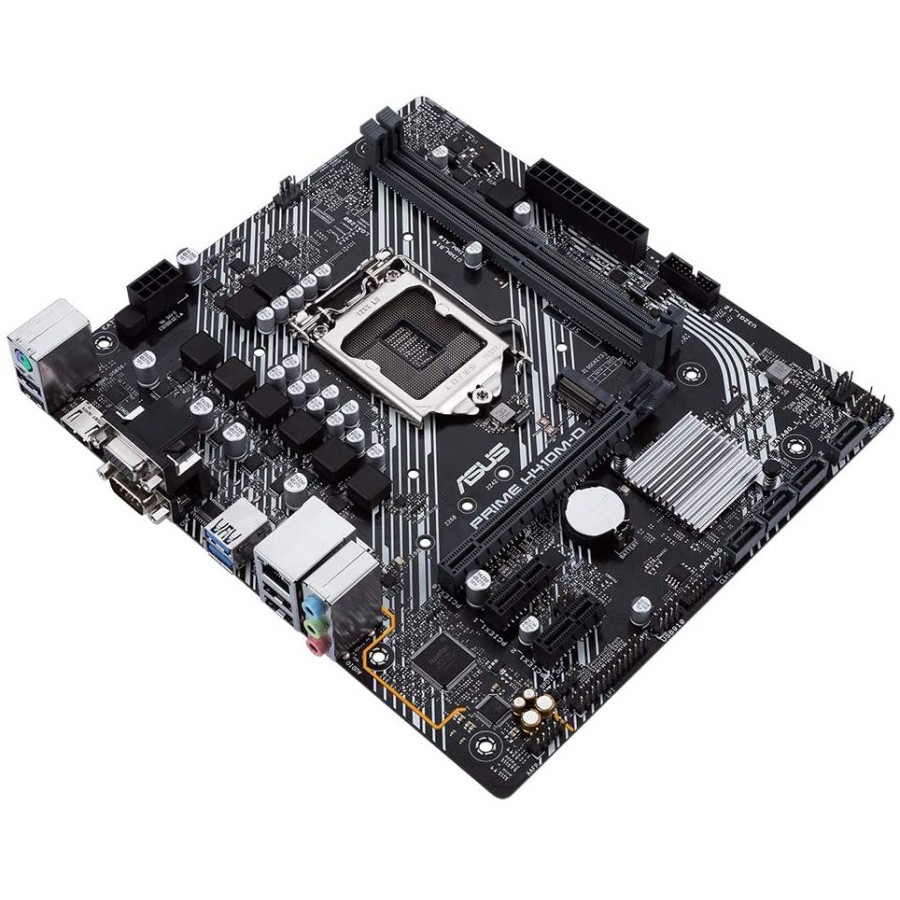

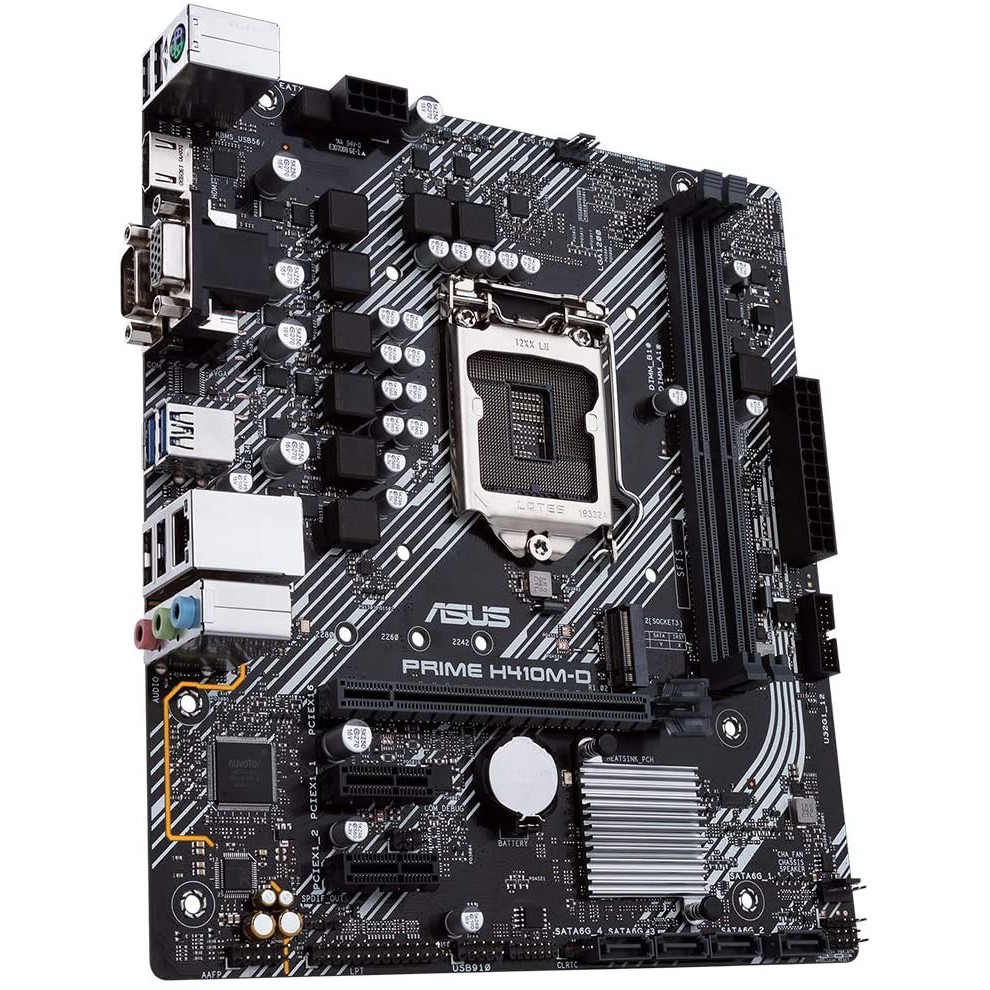

MOTHERBOARD ASUS PRIME H410M-D (Intel LGA 1200. Gen 10)

Detail MOTHERBOARD ASUS PRIME H410M-D (Intel LGA 1200. Gen 10)

Garansi Resmi 3 Tahun

Silakan Komfirmasi Persediaan Stok Barang Sebelum Melakukan pembelian
Trimaksih...


SPECIFICATION :

CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
Intel® H410

Memory
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Graphic
Integrated Graphics Processor *
1 x D-Sub
1 x HDMI 1.4b

Expansion Slots
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® H410 Chipset
2 x PCIe 3.0 x1

Storage
Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H410 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*1
4 x SATA 6Gb/s port(s)

LAN
Realtek® RTL8111H

Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC *2

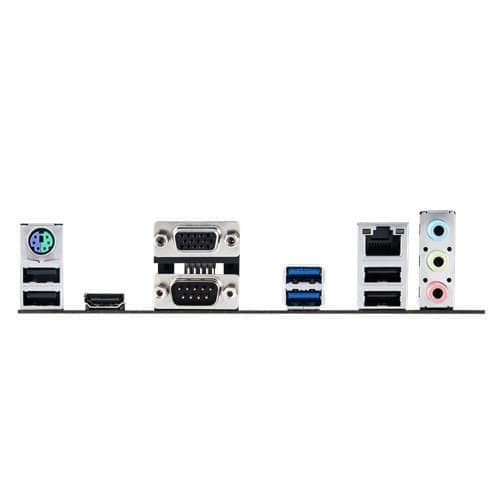

USB Ports
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 4 )
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)

Form Factor
mATX Form Factor

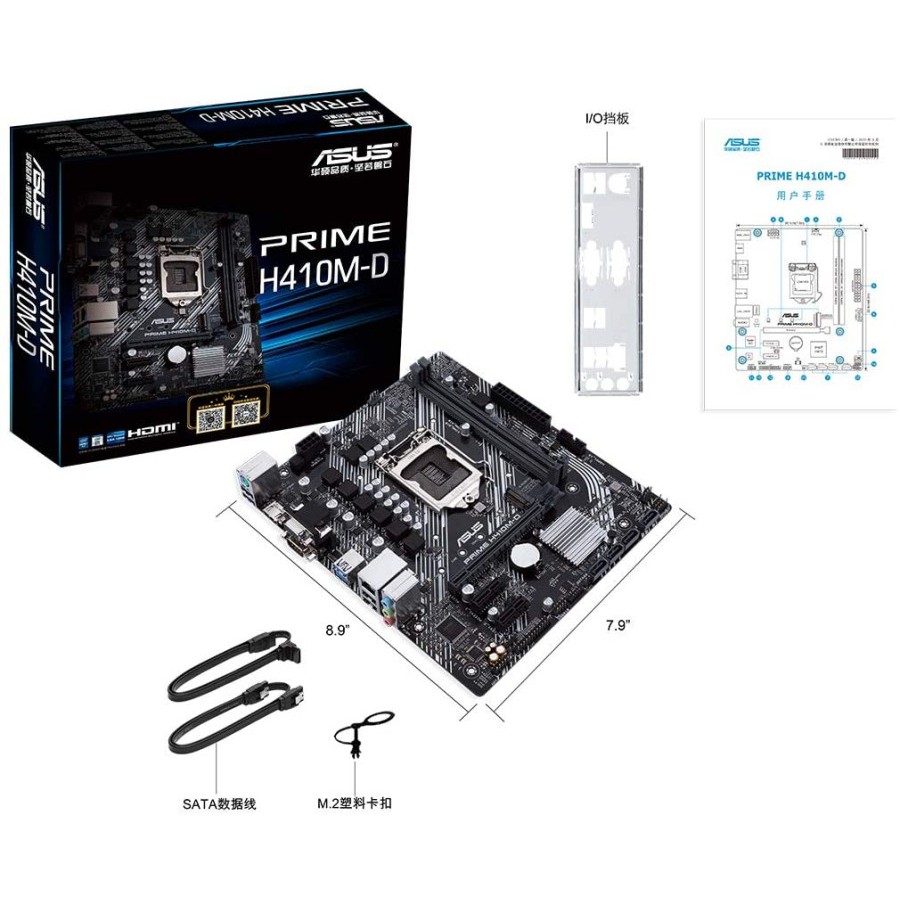

8.9 inch x 7.9 inch ( 22.6 cm x 20.1 cm )

Gambar produk
