Motherboard Asus Prime A320M-K (AM4, AMD, A320, DDR4, USB3.0, SATA3)

Detail Motherboard Asus Prime A320M-K (AM4, AMD, A320, DDR4, USB3.0, SATA3)

MB Motherboard ASUS Prime A320M - K - Mainboard Mobo A320M-K AM4 AMD

Garansi Resmi 3 Tahun

CPU
AMD AM4 Socket for AMD Ryzen/7th Generation A-series/Athlon Processors
Supports CPU up to 8 cores
* Refer to wwwasuscom for CPU support list
Chipset
AMD A320
Memory
AMD Ryzen Processors
2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
AMD 7th Generation A-series/Athlon Processors
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to wwwasuscom for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU *1
Multi-VGA output support : HDMI/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB
Expansion Slots
AMD Ryzen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Generation A-series/Athlon Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD A320 chipset
2 x PCIe 2.0 x1
Storage
AMD A320 chipset :
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10
AMD Ryzen Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-series/Athlon Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
LAN
Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
USB Ports
AMD Ryzen/7th

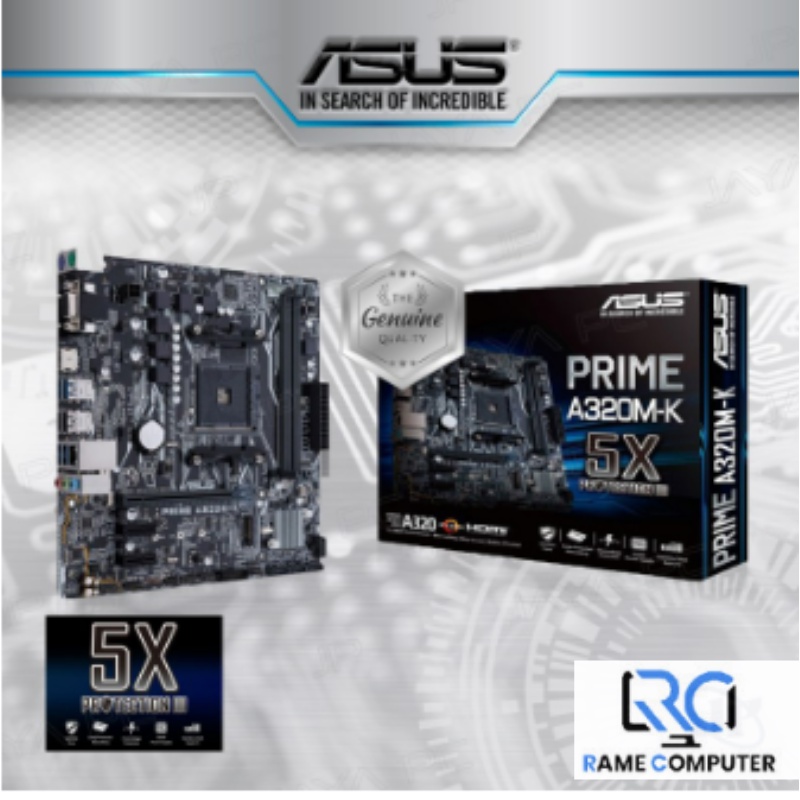

Gambar produk
