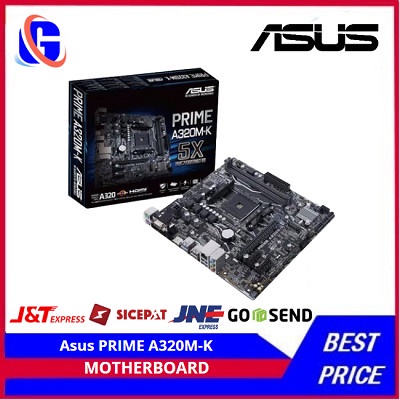

Motherboard Asus PRIME A320M-K (AM4, AMD Promontory A320, DDR4)

Detail Motherboard Asus PRIME A320M-K (AM4, AMD Promontory A320, DDR4)

Motherboard Asus PRIME A320M-K (AM4, AMD Promontory A320, DDR4)
#GARANSI RESMI ASUS 3TAHUN

Model

Brand
ASUS

Model
Prime A320M-K

Supported CPU

CPU Socket Type
AM4

CPU Type
Ryzen / Athlon / A-Series

Chipsets

Chipset
AMD A320

Memory

Number of Memory Slots
2288pin

Memory Standard
AMD Ryzen Processors: DDR4 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133
AMD 7th Gen A-series / Athlon Processors: DDR4 2400/ 2133

Maximum Memory Supported
32GB

Channel Supported
Dual Channel

Expansion Slots

PCI Express 3.0 x16
AMD Ryzen Processors: 1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Gen A-series / Athlon Processors: 1 x PCIe 3.0/2.0 x16 (x8 mode)

PCI Express x1
2 x PCIe 2.0 x1

Storage Devices

SATA 6Gb/s
4 x SATA 6Gb/s port(s), gray

M.2
AMD Ryzen Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-series / Athlon Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)

SATA RAID
0/1/10

Onboard Video

Onboard Video Chipset
Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU
Multi-VGA output support: HDMI/RGB ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048MB

Onboard Audio

Audio Chipset
Realtek ALC887

Audio Channels
8 Channels

Onboard LAN

LAN Chipset
Realtek RTL8111H

Max LAN Speed
10/100/1000Mbps

Rear Panel Ports

PS/2
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)

Video Ports
1 x D-Sub

HDMI
1 x HDMI

RJ45
1 x RJ45

USB 3.0
4 x USB 3.0 (blue)

USB 1.1/2.0
2 x USB 2.0

Audio Ports
3 Ports
