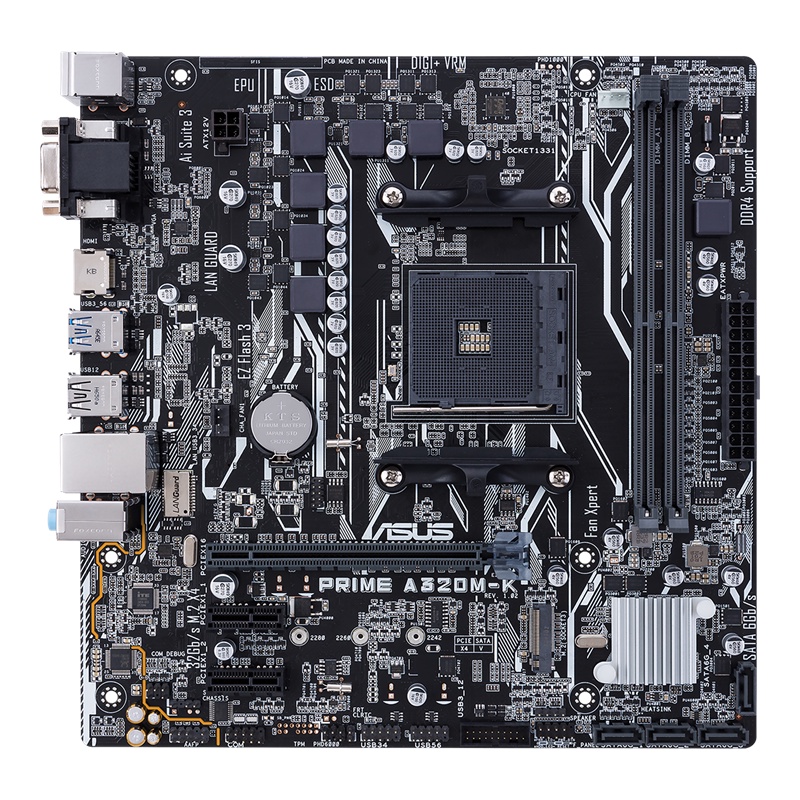

Motherboard ASUS PRIME A320M-K AMD socket AM4

Detail Motherboard ASUS PRIME A320M-K AMD socket AM4

Motherboard ASUS PRIME A320M-K AMD socket AM4

CPU : AMD AM4 Socket for AMD Ryzen™/7th Generation A-series/Athlon™ Processors
Supports CPU up to 8 cores
Chipset : AMD A320
Memory :
• AMD Ryzen™ Processors
• 2 x DIMM, Max. 32GB, DDR4 3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
• AMD 7th Generation A-series/Athlon™ Processors
• 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www•asus•com for the Memory QVL (Qualified Vendors Lists).
Graphic : Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU *1
Multi-VGA output support : HDMI/RGB ports
• Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB
Expansion Slots
AMD Ryzen™ Processors : 1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Generation A-series/Athlon™ Processors : 1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD A320 chipset : 2 x PCIe 2.0 x1
Storage
AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10
AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD 7th Generation A-series/Athlon™ Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
LAN
• Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
• Realtek® ALC887 8-Channel High Definition Audio CODEC
USB Ports : AMD Ryzen™/7th



Garansi Resmi 3 Tahun

Gambar produk
