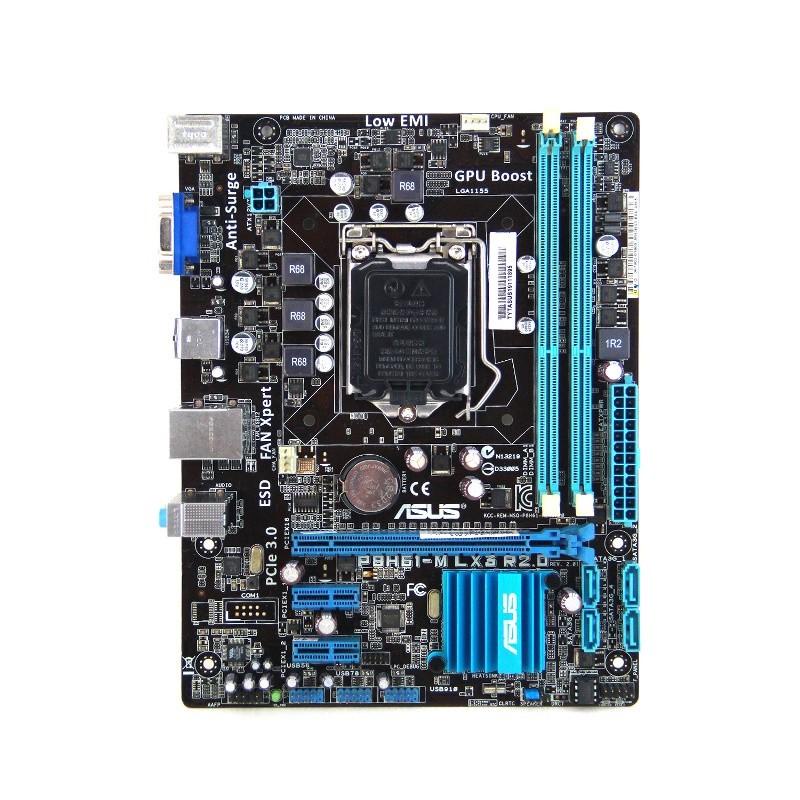

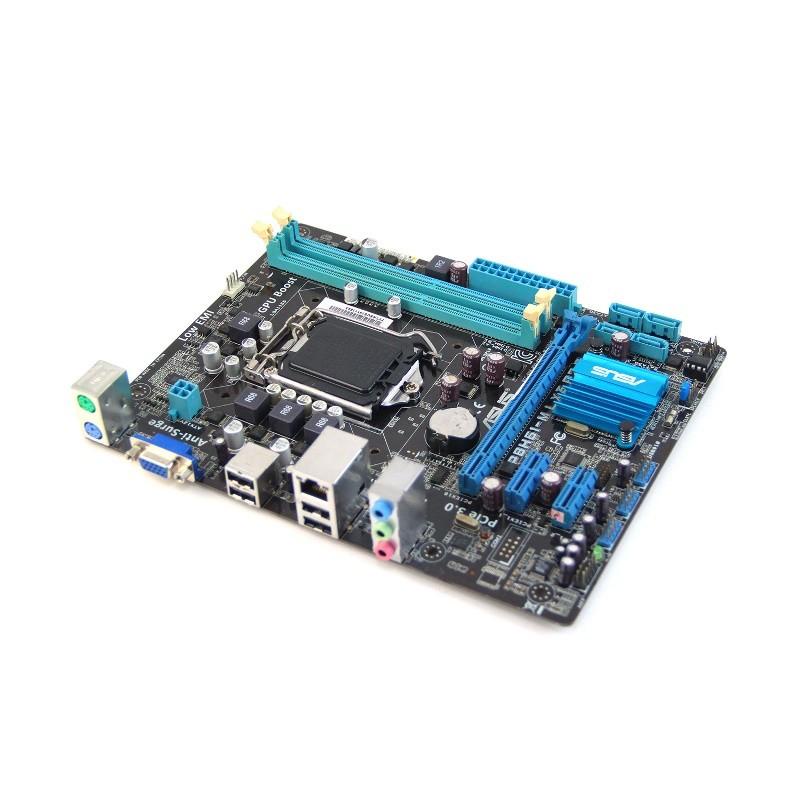

Detail MOTHERBOARD ASUS P8H61M-LX3 R2.0 SOCKET PROCESSOR LGA 1155 GARANSI 1 TAHUN-MOTEHRBOARD ASUS RAM DD3 MURAH - TEKNO KITA
š GRATISSS ASURANSI PENGIRIMANā¼ļøš¦ TIDAK PERLU KHAWATIR SAAT BARANG DALAM PENGIRIMANā¼ļø
CPU
LGA1155 socket for IntelĀ® 3rd/2nd Generation Coreā¢ i7 / Coreā¢ i5 / Coreā¢ i3 / PentiumĀ® / CeleronĀ® processorsSupports Intel 22nm CPUSupports IntelĀ® Turbo Boost Technology 2.0* The IntelĀ® Turbo Boost Technology 2.0 support depends on the CPU types.** Refer to www.asus.com for IntelĀ® CPU support list.
Chipset
IntelĀ® H61 Express Chipset
Memory
2 x DIMMs, max. 16GB, DDR3 2200 (O.C.) / 2133 (O.C.) / 2000
(O.C.) / 1866 (O.C.) / 1600 / 1333 / 1066 MHz, non-ECC, un-buffered memory
Expansion slots
1 x PCI Express 3.0/2.0 x16 slot with latch
2 x PCI Express 2.0 x1 slots
Graphics Supports
D-Sub with max. resolution of 2048 x 1536 @75Hz
Max. UMA Memory: 1748MB
Storage
IntelĀ® H61 Express Chipset: - 4 x Serial ATA 3.0 Gb/s connectors
LAN
RealtekĀ® 8111F PCIe Gigabit LAN controller
Audio
VIAĀ® VT1708S 8-channel* High Definition Audio CODEC
USB
10 x USB 2.0/1.1 ports (6 ports at the mid-board, 4 ports at the back panel)

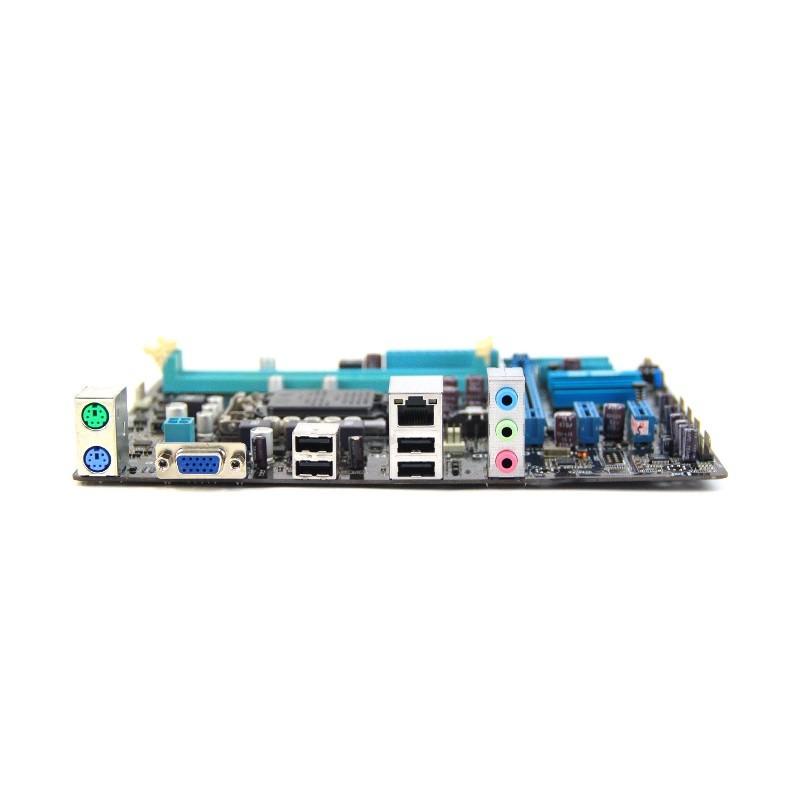

Rear panel ports
1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
1 x D-Sub port
1 x LAN (RJ-45) port
4 x USB 2.0/1.1 ports
3 x Audio jacks
Internal connectors/ jumpers
3 x USB 2.0/1.1 connectors support additional 6 USB 2.0/1.1
Ports
4 x SATA 3.0 Gb/s connectors
1 x 4-pin CPU fan connector
1 x 4-pin chassis fan connector
1 x Front panel audio connector
1 x System panel connector
1 x Speaker connector
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x Clear CMOS jumper
BIOS features
64 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM 2.0, ACPI v2.0a, SM BIOS v2.7, SLP 3.0, EUP-ready, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form factor
MicroATX form factor: 8.9 in x 6.8 in (22.6 cm x 17.3)
TIDAK ADA VIDEO UNBOXING, TIDAK BISA KOMPLAIN !!!
VIDEO UNBOXING WAJIB DETAIL, DARI BERBAGAI SISI, PORT DAN KEADAAN PIN PROCESSOR WAKTU MOTHERBOARD BARU DITERIMA
