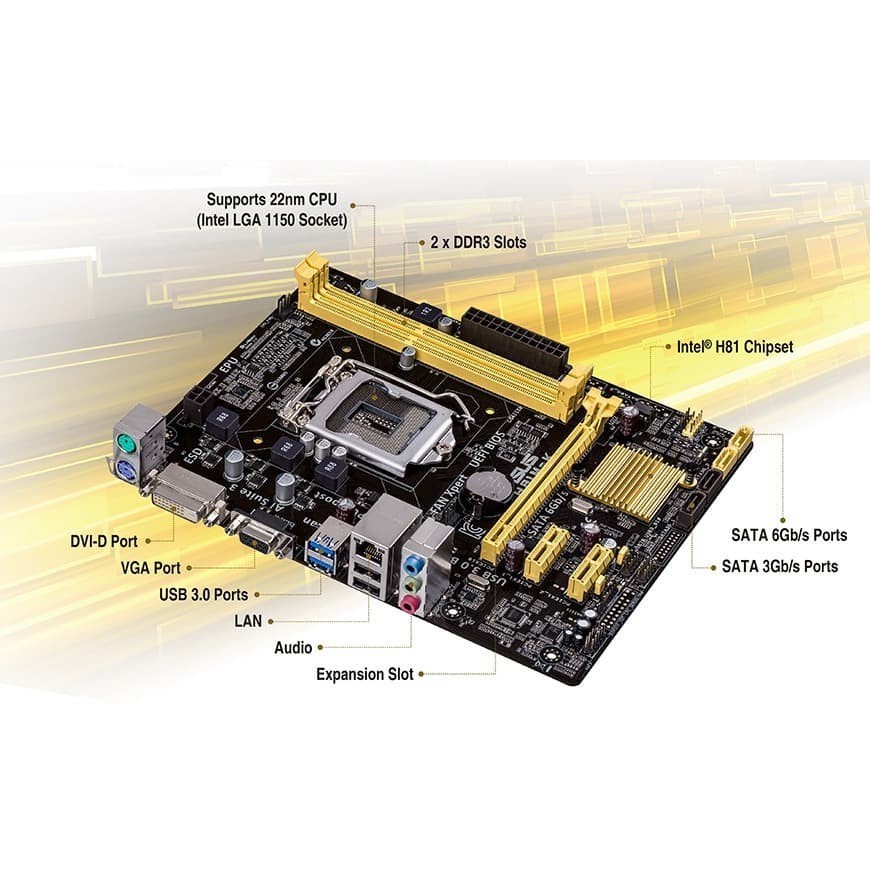

Motherboard ASUS H81MK LGA 1150

Detail Motherboard ASUS H81MK LGA 1150

CPU
Intel® Socket 1150 for New 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to for CPU support list
Chipset
Intel® H81
Memori
2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
Grafis
Integrated Graphics Processor
Dukungan output Multi-VGA : DVI/RGB port
- Mendukung DVI dengan resolusi maks. 1920 x 1200 @ 60 Hz
- Mendukung RGB dengan resolusi maks. 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Slot Ekspansi
1 x PCIe x16
2 x PCIe 2.0 x1
Storage
Intel® H81 chipset :
2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1
LAN
Realtek® 8111G, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking
Port USB
Intel® H81 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel® H81 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
