MOTHERBOARD ASUS H81MCS INTEL SOCKET 1150

Detail MOTHERBOARD ASUS H81MCS INTEL SOCKET 1150

ASUS H81M-CS - Intel Scoket 1150
Garansi Resmi 3 Tahun
FREE KABEL PARALEL INTERNAL...

CPU
Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Chipset.
Intel H81
Memory
2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

* Due to Intel chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
Graphic
Integrated Graphics Processor
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Expansion Slots
1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
Storage
Intel H81 chipset :
2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel Rapid Start Technology, Intel Smart Connect Technology *1
LAN
Realtek 8111GR, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking
USB Ports
Intel H81 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel H81 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

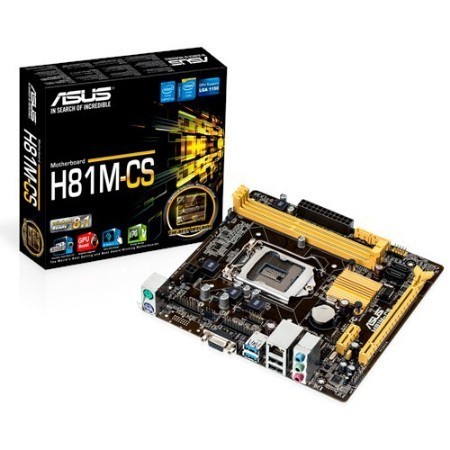

Gambar produk
