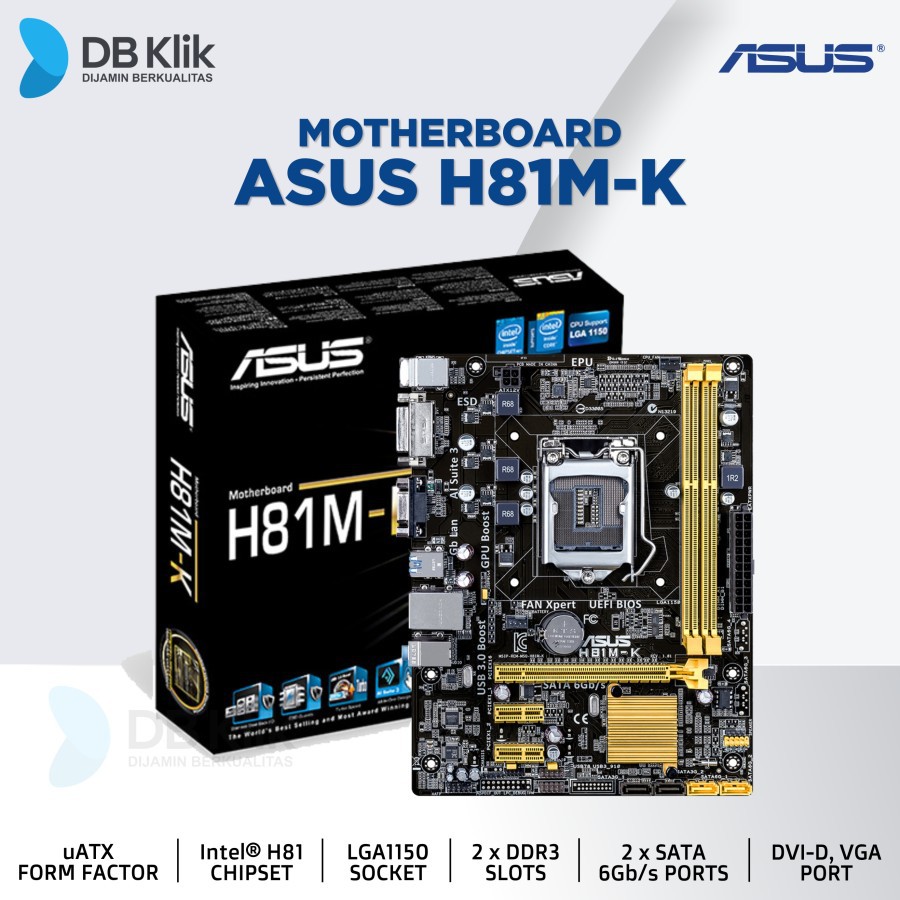

Motherboard ASUS H81M-K

Detail Motherboard ASUS H81M-K

Deskripsi Motherboard ASUS H81M-K
Deskripsi Motherboard ASUS H81M-K
CPU :
Intel® Socket 1150 for New 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Chipset :
Intel® H81

Memori :
2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

Grafis :
Integrated Graphics Processor
Dukungan output Multi-VGA : DVI/RGB port
- Mendukung DVI dengan resolusi maks. 1920 x 1200 @ 60 Hz
- Mendukung RGB dengan resolusi maks. 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Slot Ekspansi :
1 x PCIe x16
2 x PCIe 2.0 x1

Storage
Intel® H81 chipset :
2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1

LAN :
Realtek® 8111G, 1 x Gigabit LAN Controller(s)

Audio :
Realtek® ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking

Port USB
Intel® H81 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel® H81 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

Port I/O Belakang :
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)

I/O Internal :
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)ngs
