Motherboard ASUS H81M-K LGA1150 DDR3 USB3 RESMI 3TH

Detail Motherboard ASUS H81M-K LGA1150 DDR3 USB3 RESMI 3TH

Motherboard ASUS H81M-K LGA1150 DDR3 USB3 RESMI 3TH Hoshitech computer

Motherboard H81 ASUS GIGABYTE (LGA1150, H81, DDR3, USB3.0, SATA3) RESMI 3TH

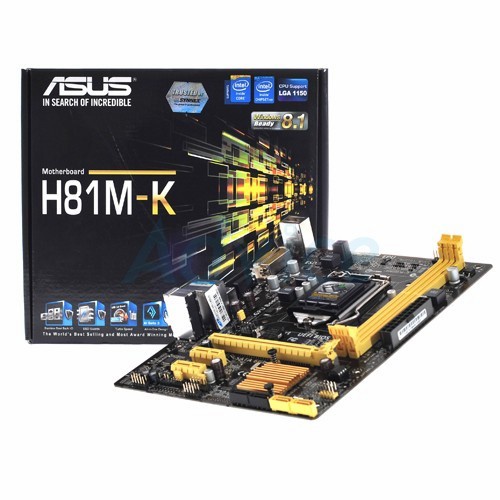

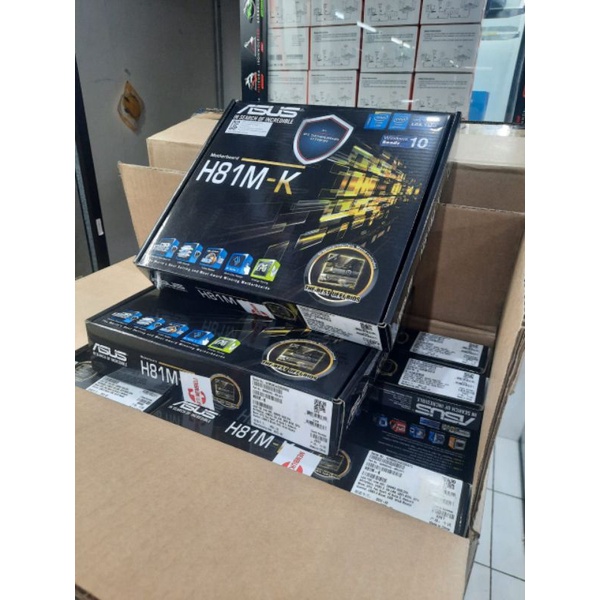

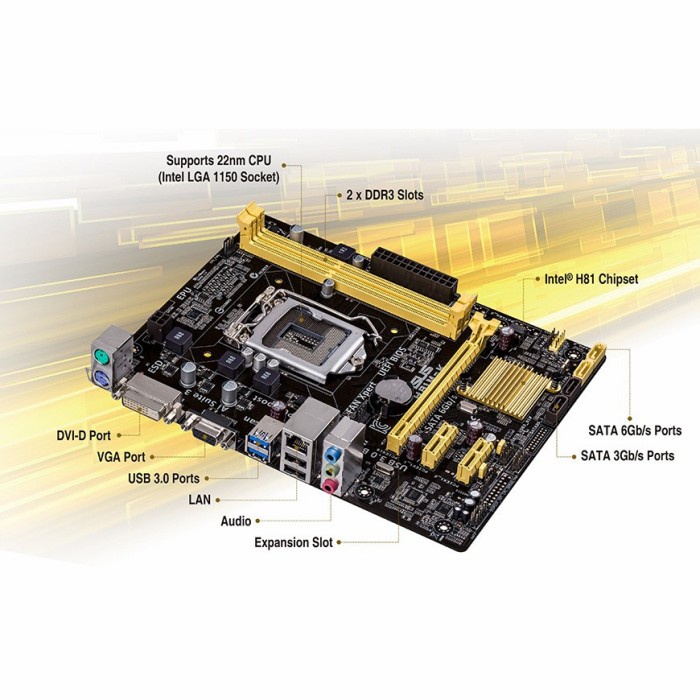

Motherboard ASUS H81M-K (LGA1150, H81, DDR3, USB3.0, SATA3) RESMI 3TH

Garansi Resmi 3 Tahun

CPU
Intel Socket 1150 untuk Prosesor Generasi ke-4 Core i7 / Core i5 / Core i3 / Pentium / Celeron
Chipset
Intel H81
2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Memori Non-ECC, Un-buffered
Arsitektur Memori Dual Channel
Mendukung Intel Extreme Memory Profile (XMP)

Grafis
Prosesor Grafis Terpadu
Dukungan output multi-VGA: port DVI / RGB
- Mendukung DVI dengan max. resolusi 1920 x 1200 @ 60 Hz
- Mendukung RGB dengan max. resolusi 1920 x 1200 @ 60 Hz
Memori bersama maksimal 1024 MB
Mendukung Intel InTru 3D, Quick Sync Video, Teknologi Clear Video HD, Insider
EkspansiSlots
1 x PCIe x16
2 x PCIe 2.0 x1
Penyimpanan
Chipset Intel H81:
2 x SATA 6Gb / s port (s), kuning
2 x SATA 3Gb / s port (s), coklat tua
Mendukung Intel Rapid Start Technology, Teknologi Intel Smart Connect * 1
LAN
Realtek 8111G, 1 x Pengontrol LAN Gigabit (s)
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC * 2
- Mendukung: deteksi Jack, F **



=========== GIGABYTE H81M DS2===============

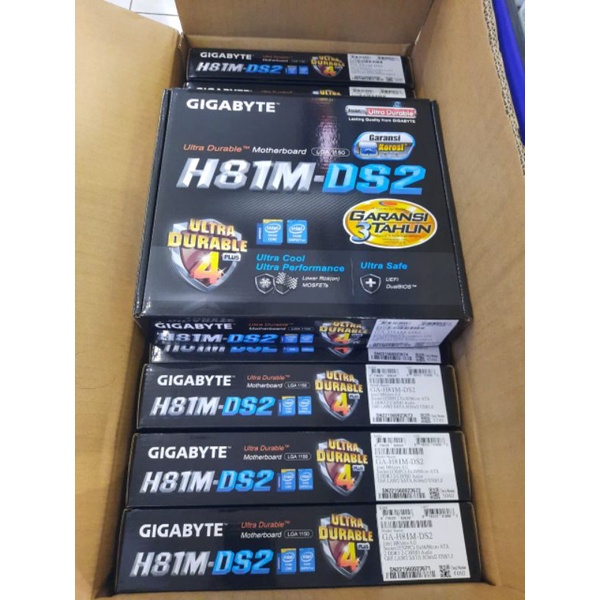

Gigabyte GA-H81M-DS2 (LGA1150, H81, DDR3, SATA3, USB3)
Brand : Gigabyte
Model : GA-H81M-DS2
CPU Type : Supports 4th Generation Intel® Core™ processors
Chipset : H81
Memory Standard : 2 x 1.5V DDR3 DIMM Support for DDR3 1600/1333 MHz memory modules
Maximum Memory Supported : 16GB Dual Channel
Expansion Slots : 1 x PCI Express x16 slot, 2 x PCI Express x1 slots
SATA Port : 2 x SATA 6Gb/s, 2 x SATA 3Gb/s
M.2 : -
Onboard Video Chipset : Integrated Graphics Processor
Multi-GPU support : -
Audio Chipset : Realtek® ALC887 codec
LAN Chipset : Realtek® GbE LAN chip (10/100/1000 Mbit)
Rear Panel Ports : , 1 x PS/2 Keyboard port, 1 x parallel port, 1 x serial port, 1 x D-Sub port, 2 x USB 3.0/2.0 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks (Line In, Line Out, Mic In)
Form Factor : Micro ATX (22.6cm x 17cm)
Warranty : 3 Year

Gambar produk
