MOTHERBOARD ASUS H81M-K INTEL SOCKET 1150

Detail MOTHERBOARD ASUS H81M-K INTEL SOCKET 1150

Spesifikasi
Maks. Memori

16GB

Garansi

12 Bulan dari Distributor Resmi di Indonesia

Lain-lain

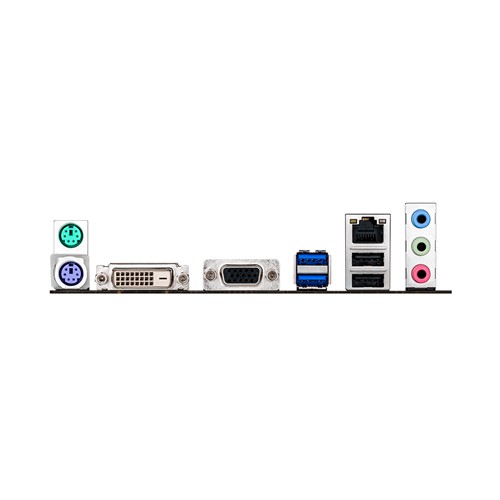

Port I/O Belakang: 1 x PS/2 keyboard (purple); 1 x PS/2 mouse (green); 1 x DVI; 1 x D-Sub; 1 x LAN (RJ45) port(s); 2 x USB 3.1 Gen 1 (blue); 2 x USB 2.0; 3 x Audio jack(s);

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *2
Supports : Jack-detection, Front Panel Jack-retasking

USB

Intel® H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel® H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

Kesesuaian Memori

2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory

Expansion Slots

1 x PCIe x16
2 x PCIe 2.0 x1

Northbridge Chipset

Intel® H81

Internal I/O

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)

CPU Socket

LGA1150

LAN

Realtek® 8111G, 1 x Gigabit LAN Controller(s)

BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Onboard VGA

Dukungan output Multi-VGA : DVI/RGB port
Mendukung DVI dengan resolusi maks. 1920 x 1200 @ 60 Hz
Mendukung RGB dengan resolusi maks. 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

DIMM Sockets

2 x DDR3 DIMM

Form Factor

uATX Form Factor

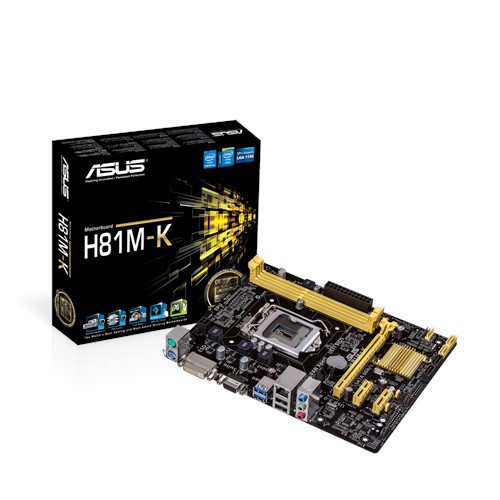

Gambar produk
