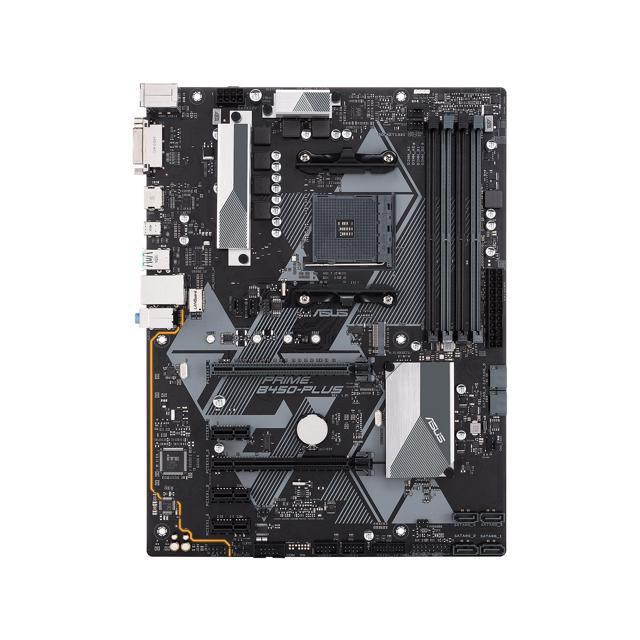

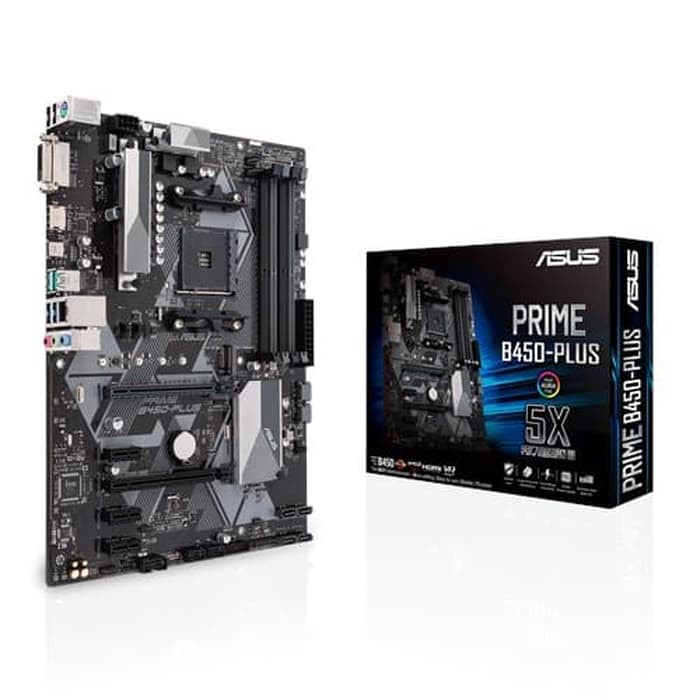

MOTHERBOARD ASUS B450 PRIME PLUS AM4

Detail MOTHERBOARD ASUS B450 PRIME PLUS AM4

CPU
AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
Supports CPU up to 8 cores

Chipset
AMD B450

Memori
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture

Grafis
Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
Dukungan output Multi-VGA : HDMI/DVI-D port
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Dukungan Multi-GPU
Supports AMD CrossFireX™ Technology

Slot Ekspansi
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1

Storage
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
2 x SATA 6Gb/s port(s)
AMD B450 chipset :
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10

LAN
Realtek® RTL8111H
ASUS LAN Guard

Audio
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2
