MOTHERBOARD AMD ASUS ROG CROSSHAIR VIII HERO (X570) ATX AM4

Detail MOTHERBOARD AMD ASUS ROG CROSSHAIR VIII HERO (X570) ATX AM4

Extra bubble wrap dan packing kayu untuk keamanan paket agan agar barang lebih aman pada saat proses pengiriman (REKOMENDASI)
- Packing Kayu
https://seller.shopee.co.id/portal/product/8001513386/
- Extra Bubble Wrap
https://seller.shopee.co.id/portal/product/5241237073/

SPECIFICATION :

Core Specifications
Edition : ROG Crosshair VIII Hero
Form Factor : ATX
CPU Socket : AM4
Chipset : AMD X570

RAM Memory Support
Memory Type : DDR4
Memory Channel : Dual (2)
Memory Type (ECC) : ECC/Non-ECC
Memory Type (R/U) : UDIMM (Unbuffered)
Memory Speed (Mhz) :
DDR4 - 2133
DDR4 - 2400
DDR4 - 2666
DDR4 - 2800
DDR4 – 2933
DDR4 - 3000
DDR4 - 3200
DDR4 - 3400(OC)
DDR4 - 3466(OC)
DDR4 - 3600(OC)
DDR4 - 3733(OC)
DDR4 - 3866(OC)
DDR4 - 4000(OC)
DDR4 - 4133(OC)
DDR4 - 4266(OC)
DDR4 - 4400(OC)
DDR4 - 4533(OC)
DDR4 - 4600+(OC)
Max. Memory Capacity : 128GB (4x32GB)

Audio
Audio : ROG SupremeFX 8-Ch. HD Audio S1220

Graphics Support
Primary GPU Interface : PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support : 2-Way SLi
AMD CrossFire Support : 3-Way CrossFire
Integrated Graphics : Discrete GPU Required for Graphics Output
On-Board Graphics Connectors : None

Internal Connectivity
Expansion Slots :
1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA
1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
1 x PCIe 4.0 x1
1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (x4 Bandwidth)
1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support : SATA3 / M.2
RAID Support via : SATA
Storage Mode Support :
NVMe Boot (via M.2 PCIe Slot)
NVMe Boot (via PCIe 4.0 Slot)
RAID 0
RAID 1
RAID 10

External Connectivity
Network Interface Type :
Wired 2.5 Gigabit LAN
Wired Gigabit LAN (10/100/1000)
Network Chip/Modules :
1 x Intel® I211AT (Gigabit LAN)
1 x Realtek RTL8125-CG (2.5G LAN)

Note :
- Wajib tanyakan stok sebelum order melalui Diskusi/ Chat (Ketersediaan Terbatas).
- Spesifikasi lengkap dapat dicek melalui website resmi masing- masing produk.
- Gambar hanya ilustrasi, versi produk dapat berbeda tergantung kebijakan vendor, namun tidak mengurangi spesifikasi dan fungsi produk.

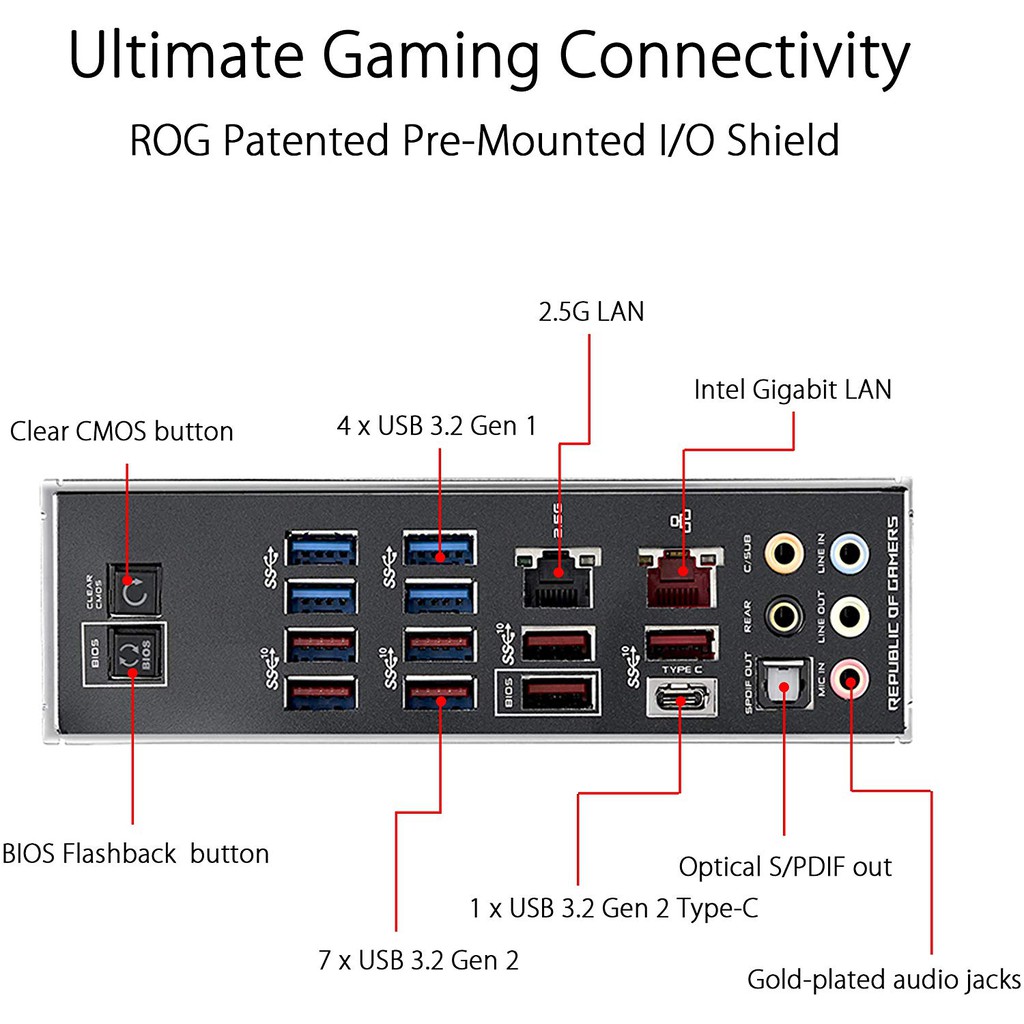

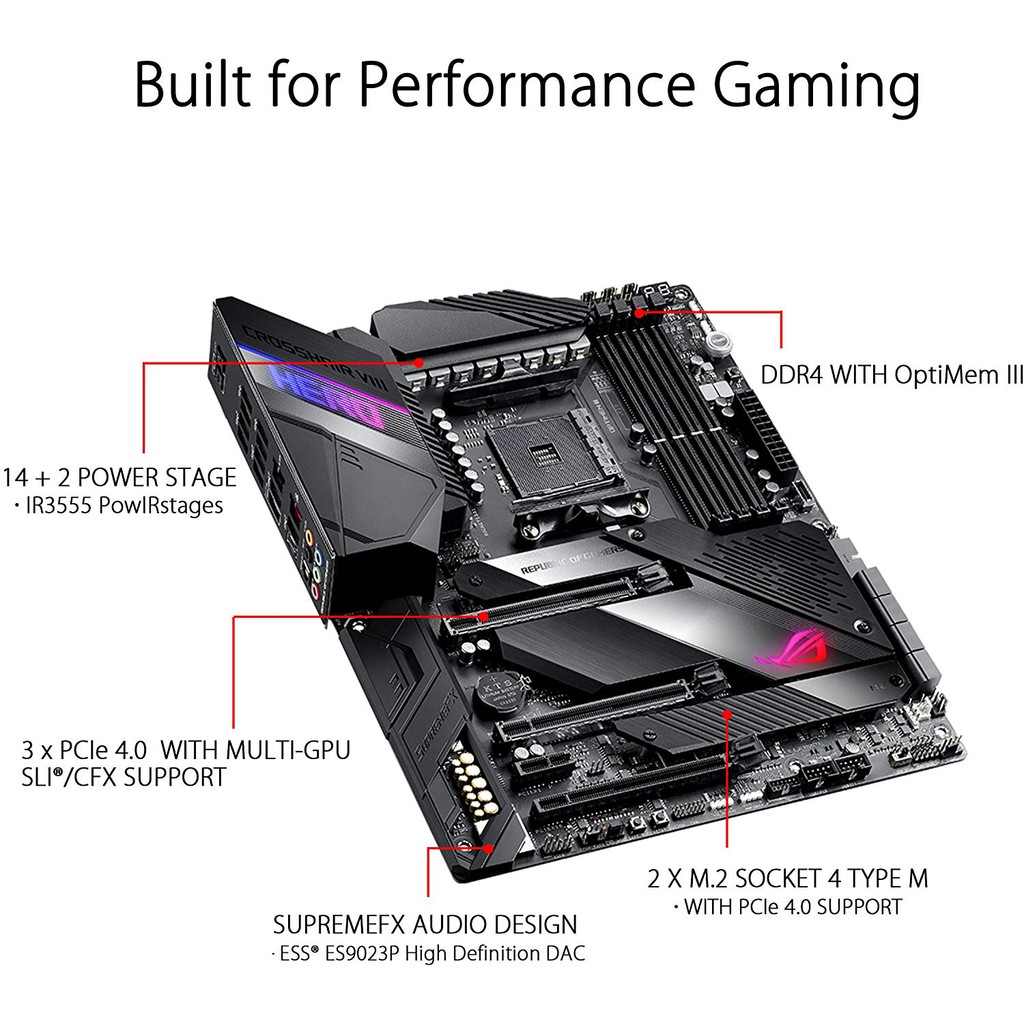

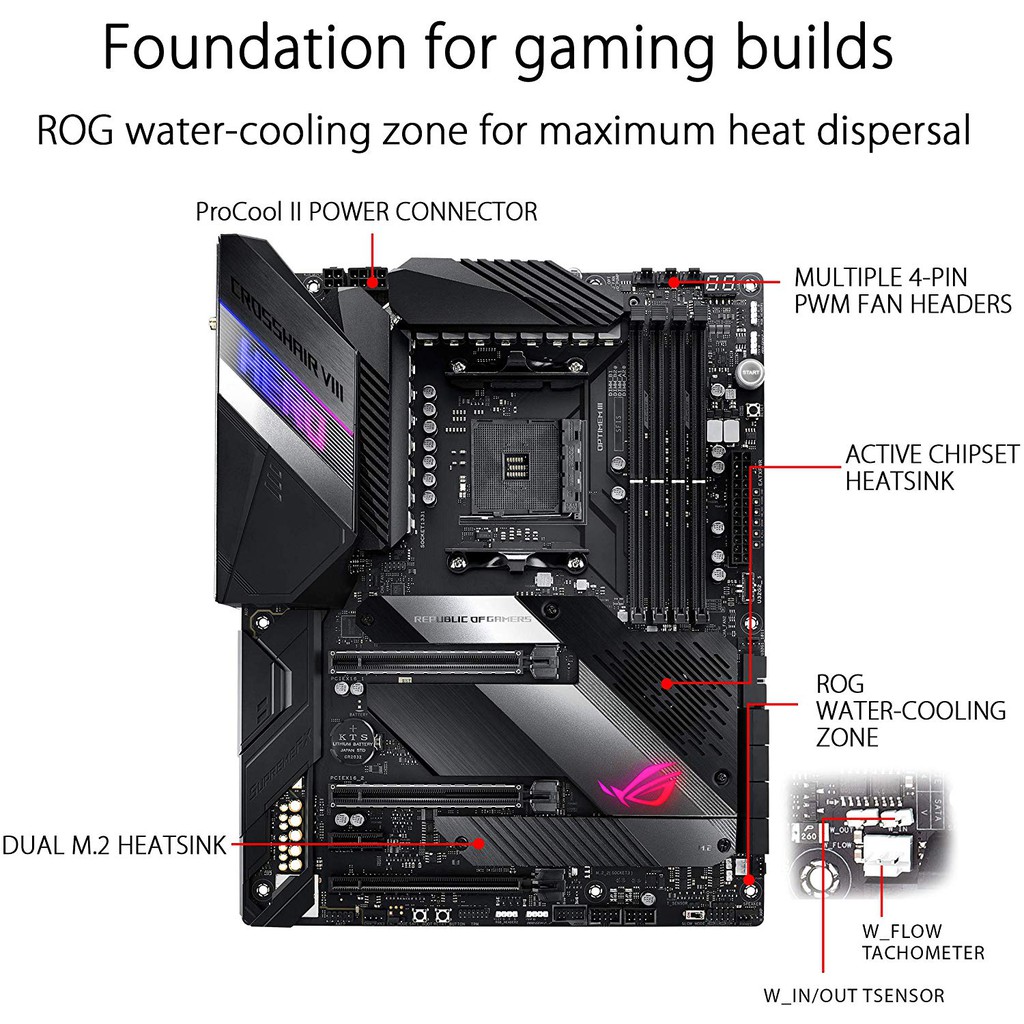

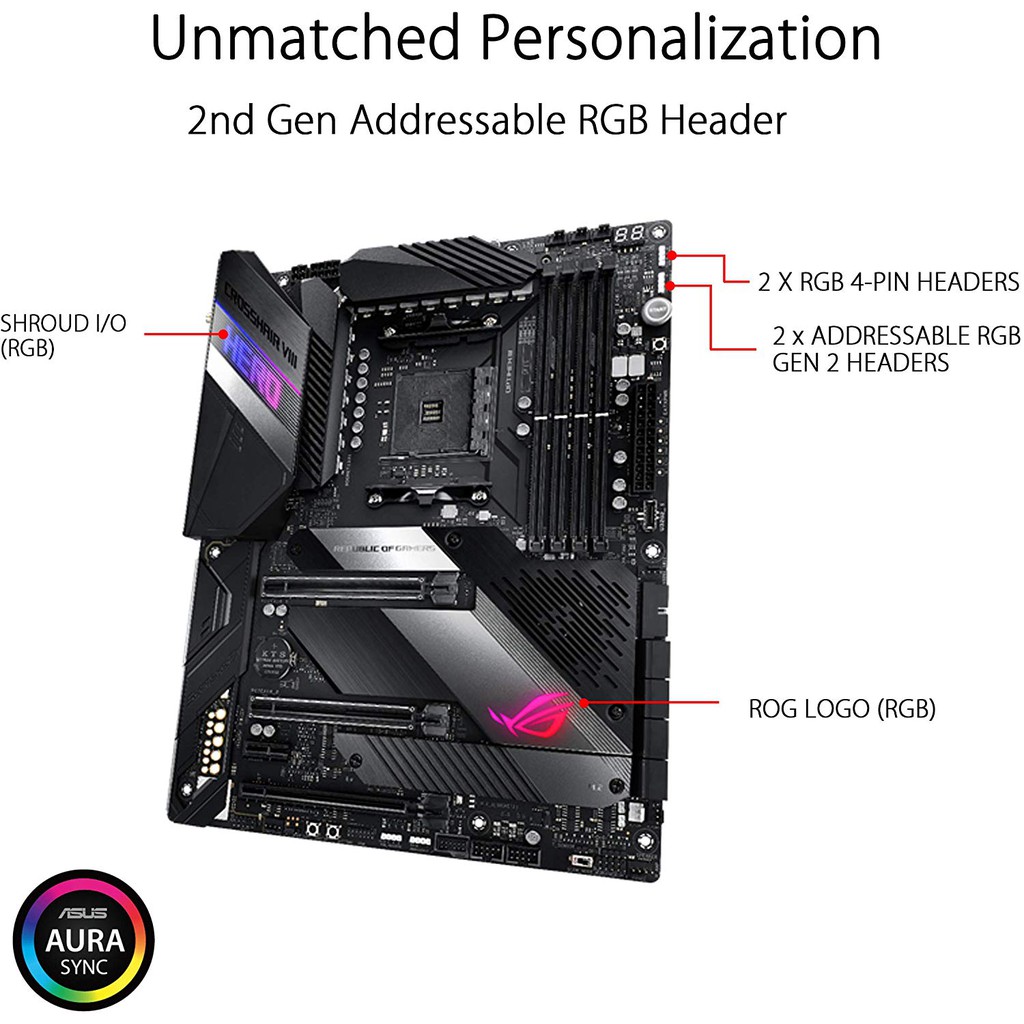

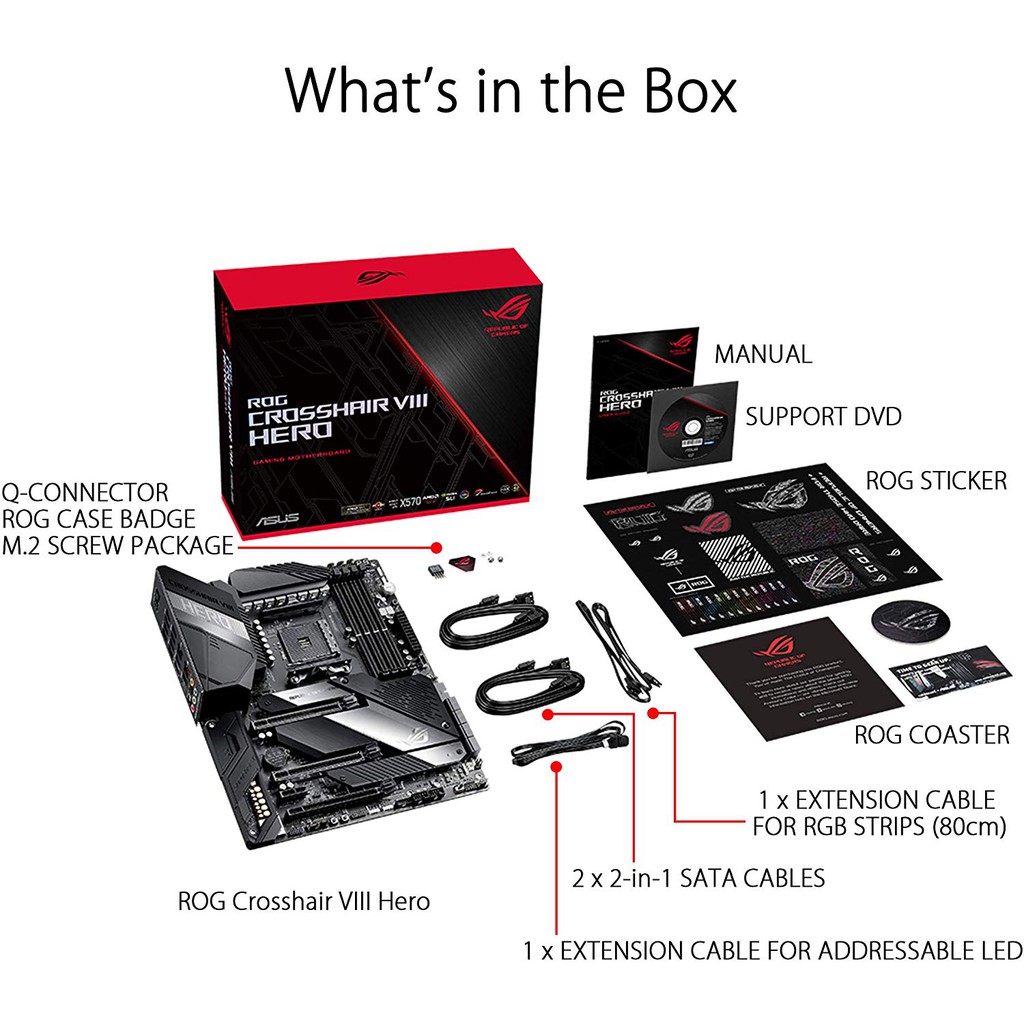

Gambar produk
