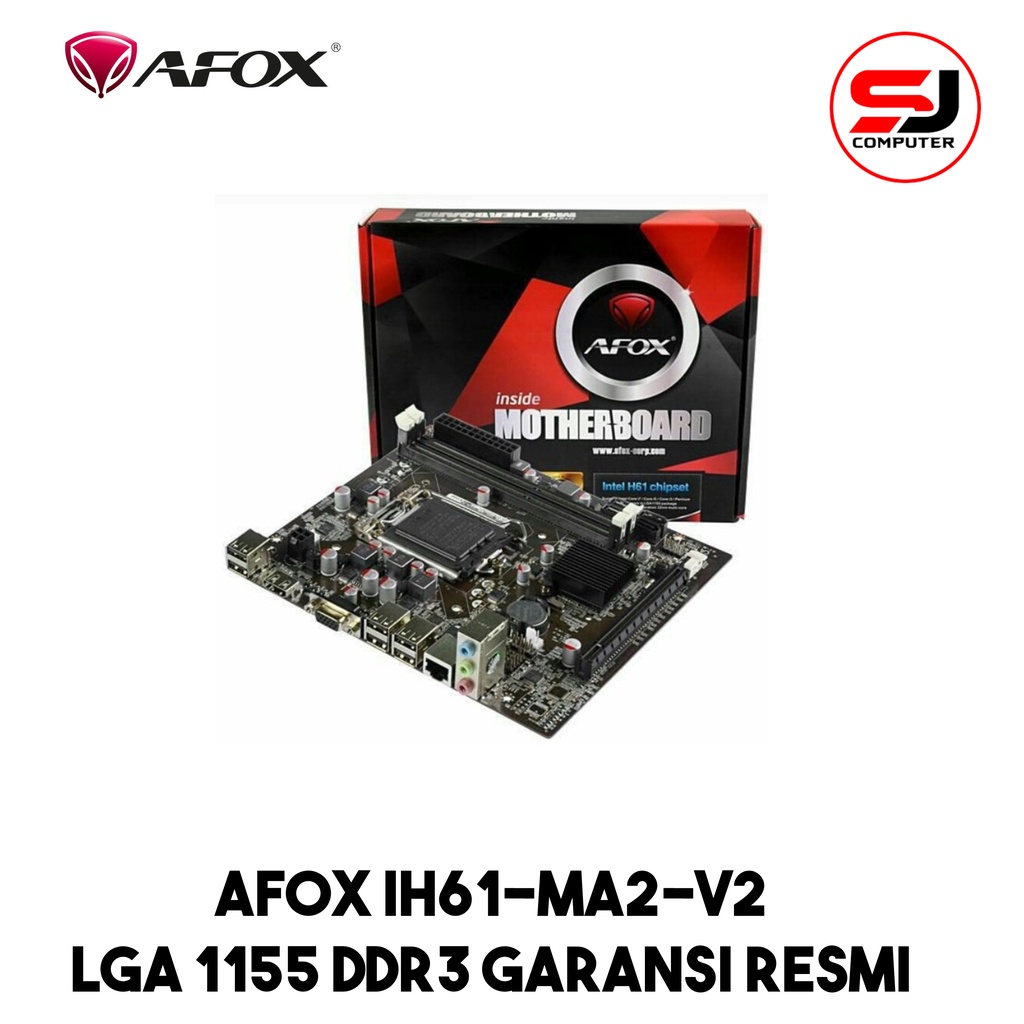

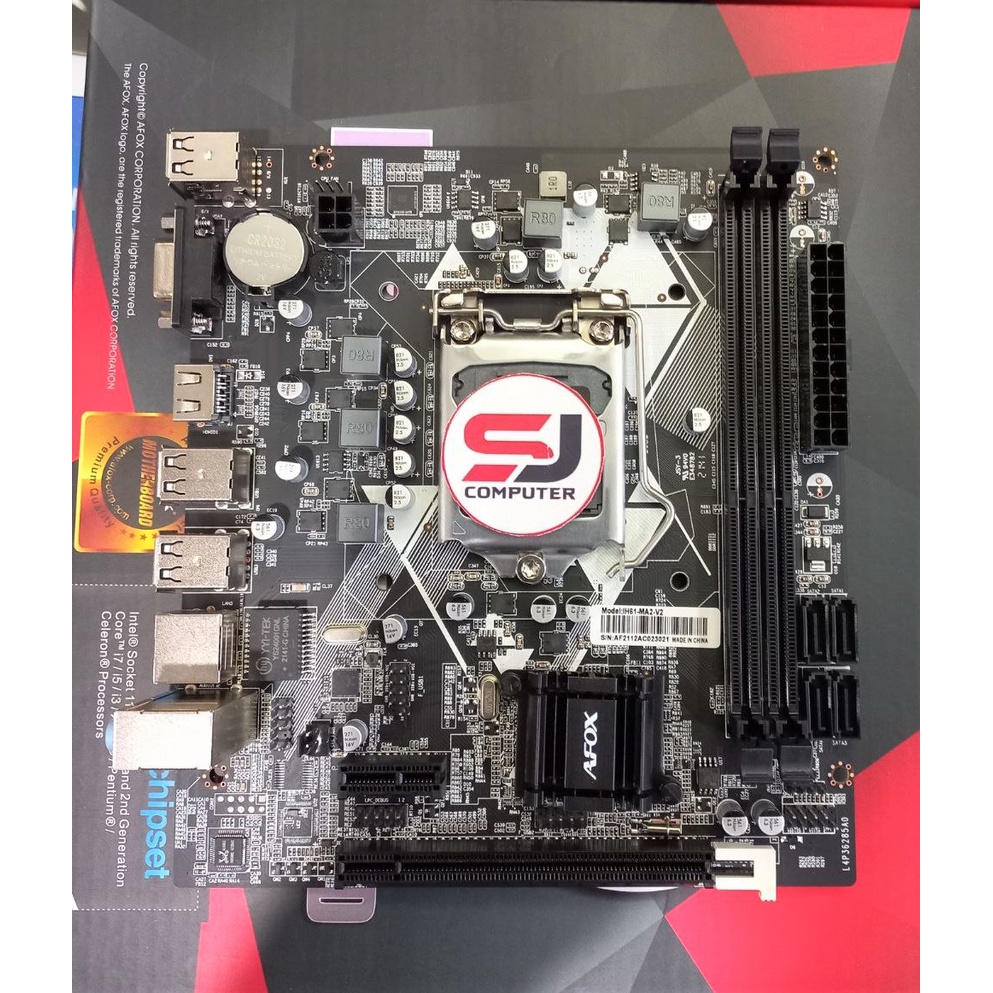

motherboard Afox intel H61 chipset LGA 1155 Original

Detail motherboard Afox intel H61 chipset LGA 1155 Original

SPESIFIKASI :
- Processor Supports : Intel" Socket 1155 Core' i7/ i5/ i3 processors
Supports Intel next generation 32nm multi-core processors
- Chipset : Intel" H61
- Memory Support : Support Dual channel DDR3 1333/1066 SDRAM (8GB Max)
2 x DDR3 DIMMs (240 pin/ 1.5V)
- LAN : Spport Realtek" 10/100 Mbps
- Audio : Chip integrated by Realtek" ALC662
- Slot : 1 x PCI Express x16 Slot
- 1 x PCI Express x1 Slot
- Storage : 4 x SATA port
- Internal I/O Ports : 1 x 24-pin ATX Power Connetor
- 1 x 4-pin ATX 12V Power Connetor
- 2 x USB connector support additional 4 USB ports
- 1 x LPC_DEBUG connector
- 1 x Front panel audio connector
- 1 x System Panel connector

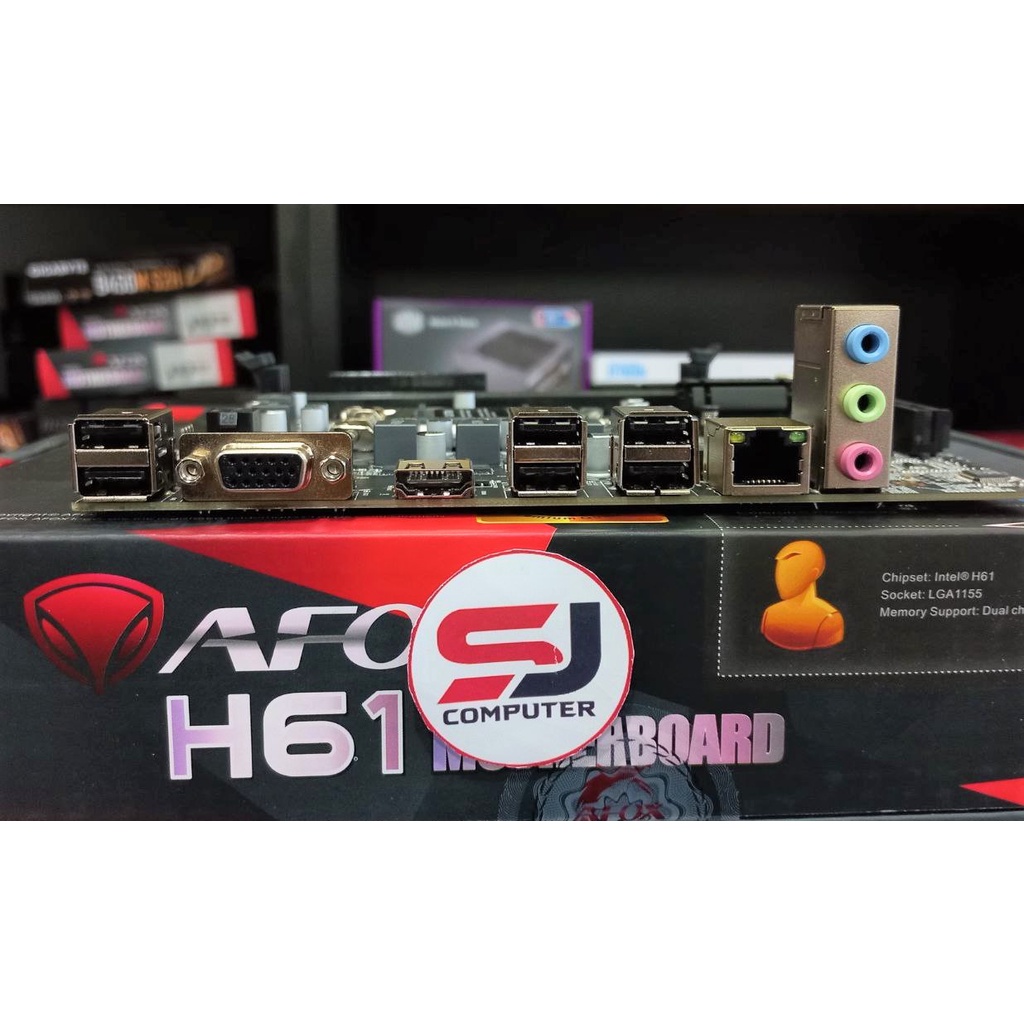

- Back I/O Ports : 1 x USB keyboard
1 x USB mouse
1 x VGA
1 x HDMI
4 x USB 2.0
1 x LAN(RJ45) Port
3 x Audio jack
- BIOS : EFI BIOS
- Form Factor : Micro ATX - 213*170 mm
- Accessories : 1 x Driver CD
- 1 x User Manual
- 1 x I/O Backboard
- 1 x SATA cable

GARANSI : 1 TAHUN

Gambar produk
