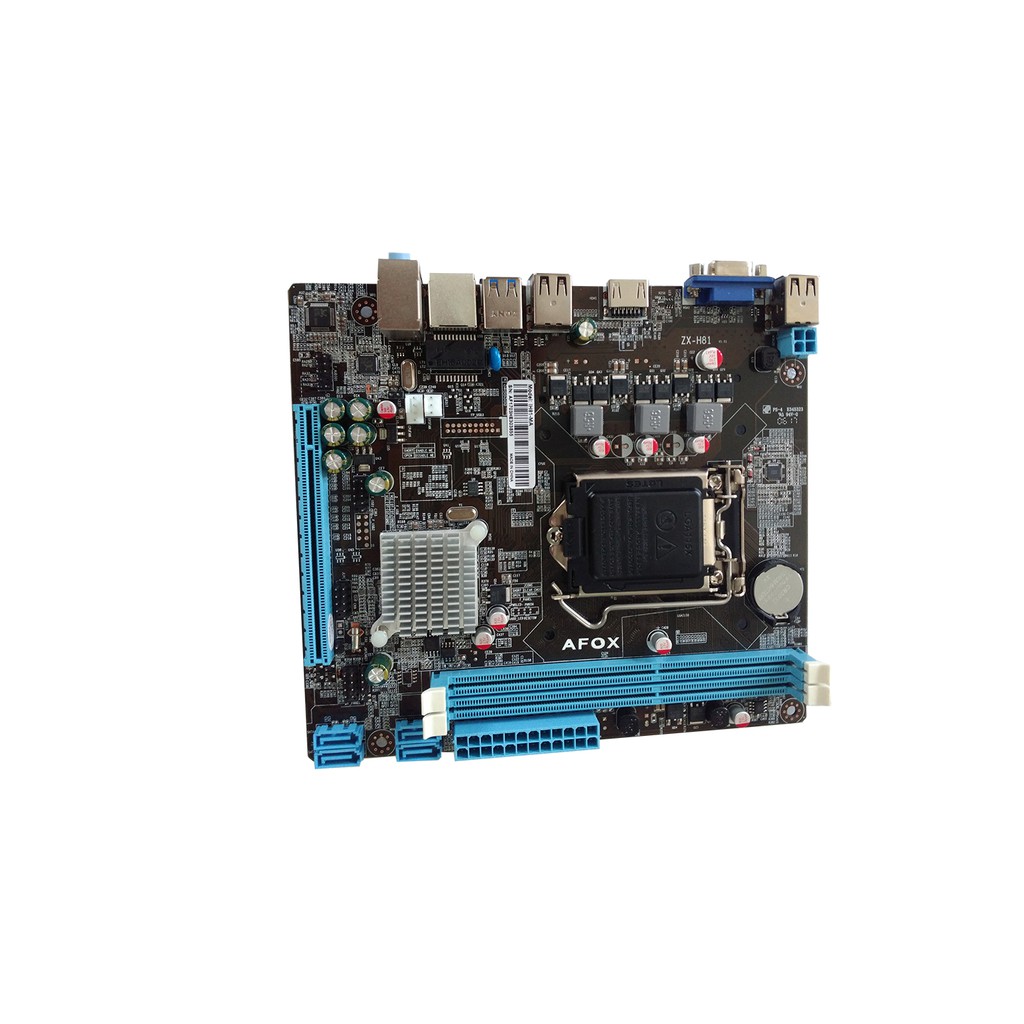

Motherboard Afox ih81-ma micro atx lga1150 Intel gen 4 h81 ddr3 Vga-hdmi-usb-rj45-aux 3.5mm

Detail Motherboard Afox ih81-ma micro atx lga1150 Intel gen 4 h81 ddr3 Vga-hdmi-usb-rj45-aux 3.5mm

Processor : Support Intel® Core™ i7/i5/i3/Pentium®/ Celeron® processors in the LGA1150 package.
Support Intel 4th generation multi-core processors
Chipset : Intel® H81
On-Board graphics : Integrated Graphics Processor
Memory Support : Dual Channel DDR3 1333/1600MHz Memory, up to 16GB
Dimm : 2 x Memory Slots (Max. up to 8GB each)
LAN : Realtek RTL8105E 100M / RTL8111E 1000 Mbps on board
Audio : Chip integrated by Realtek ALC662 on board, Supports 6-channel audio-out
Slot : 1 x PCI Express x16 Slot
Storage : 4 x SATA II port
Internal I/O Ports :
1 x 24-pin ATX Power Connetor
1 x 4-pin ATX 12V Power Connetor
1 x USB 2.0 connector support additional 2 USB 2.0 ports
1 x Front panel audio connector
1 x System Panel connector

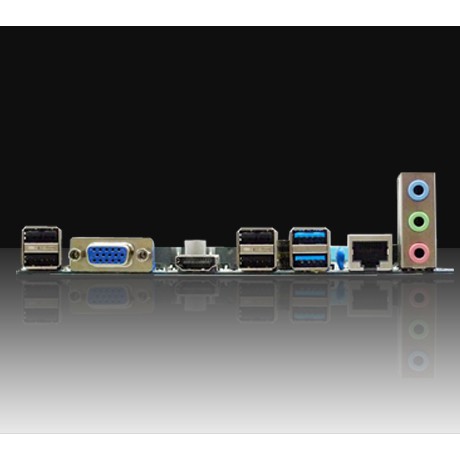

Back I/O Ports :
1 x USB 2.0 keyboard port
1 x USB 2.0 mouse port
1 x VGA
1 x HDMI
2 x USB 2.0
2 x USB 3.0
1 x LAN jack
3 x Audio jack
BIOS : AMI BIOS
Form Factor : Micro ATX - 190*170 mm
Accessories :
1 x Driver CD
1 x User Manual
1 x I/O Backboard
1 x SATA cable

Ready Stock !!
