Detail Motherboard AFOX H61-MA2-V4 LGA1155 AFOX H61 Gen 2nd gen 3rd intel
HARAP MEMASTIKAN STOK TERLEBIH DAHULU SEBELUM MELAKUKAN TRANSAKSI
Untuk pengiriman ke luar kota, Wajib tambahkan packing untuk keamanan pengiriman dengan link berikut ini, untuk dus : https://shopee.co.id/PACKING-KARDUS-i.75752086.11869241633?sp_atk=ccda4f9e-a299-446e-adbd-275a77480277 Buble wrap : https://shopee.co.id/PACKING-BUBBLE-WARP-BUNGKUS-BARANG-ANTI-SHOCK-i.75752086.13345605923?sp_atk=8ddf707c-bf89-41ab-93ab-fe05fadd109a

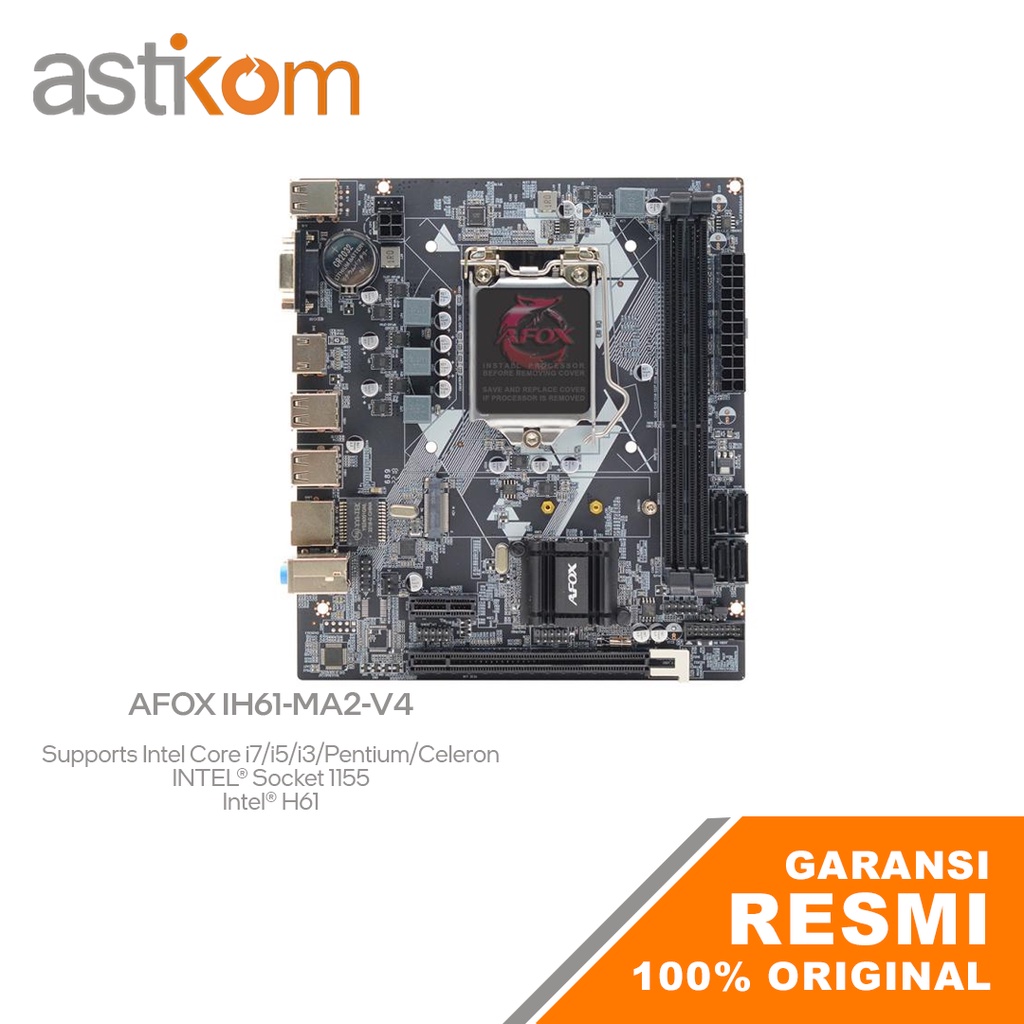

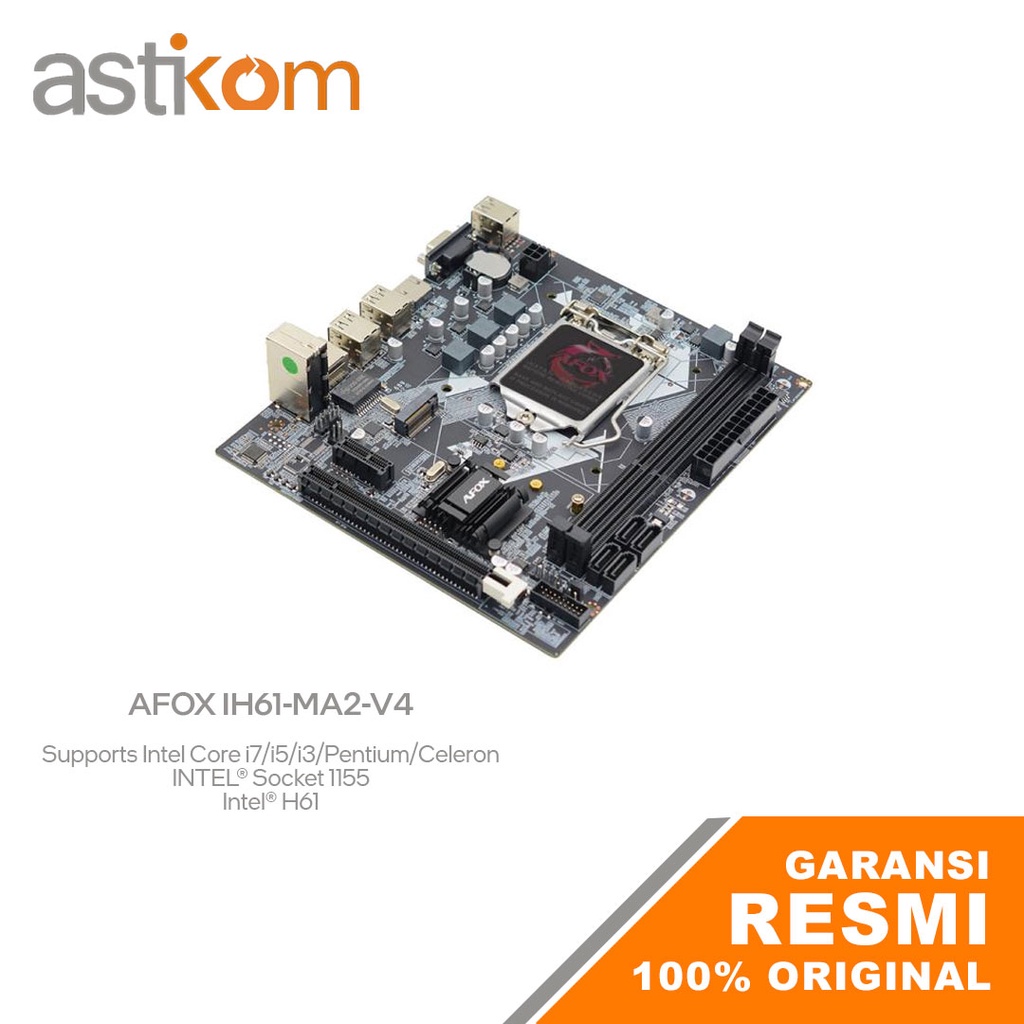

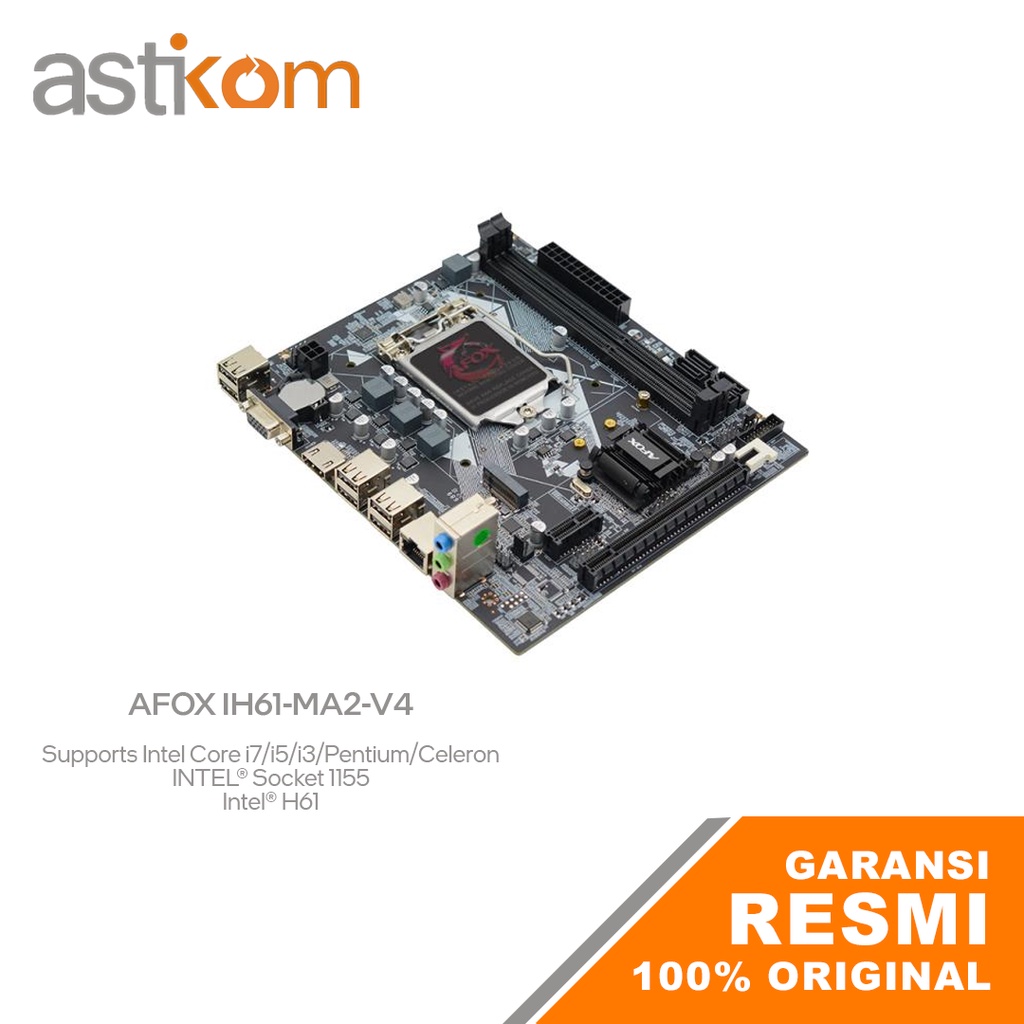

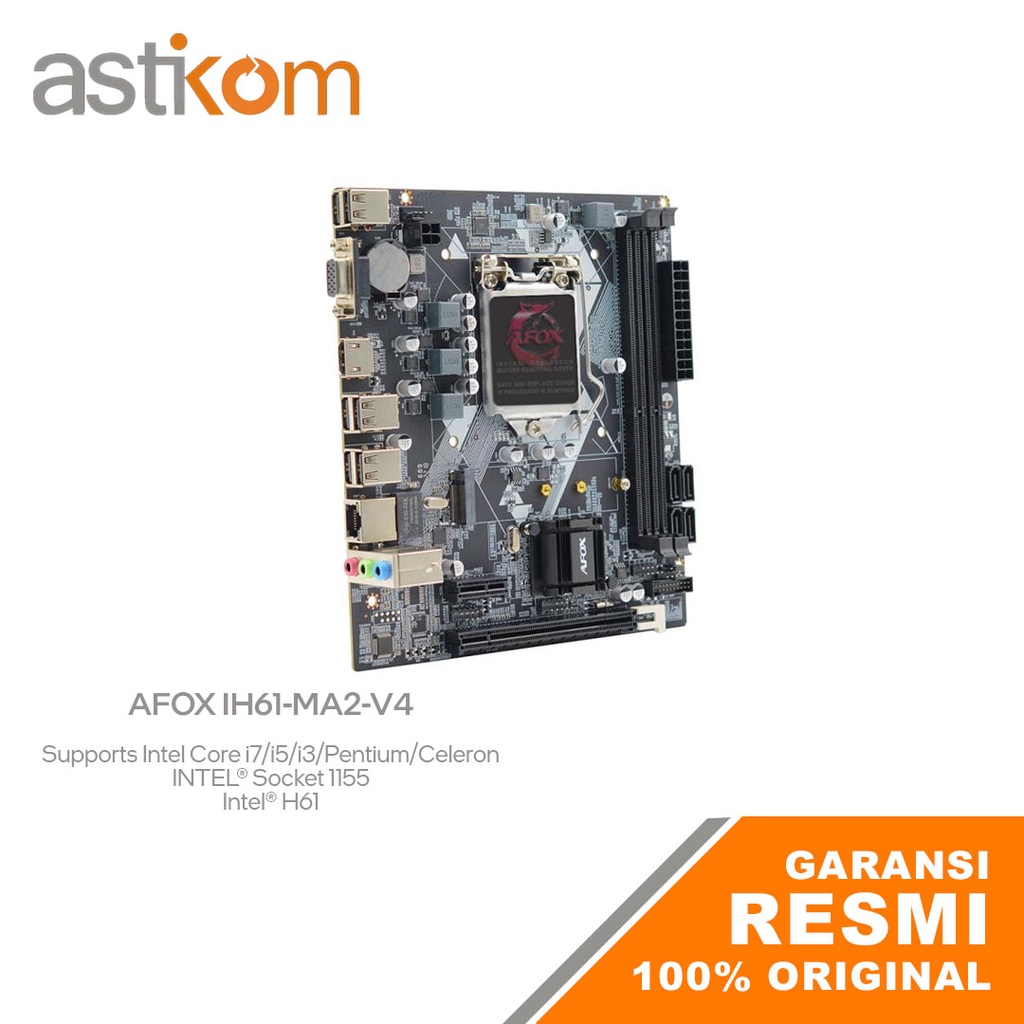

Model : AFOX IH61-MA2-V4
Platform : INTEL® Socket 1155 Model Name : IH61-MA2-V4 Chipset : Intel® H61 CPU Supports : Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors (CPU up to 95 watts) FSB : 1066 / 1333 / 1600MHz Memory : Dual Channel DDR3 1066 / 1333 / 1600MHz Dimm : 2 x Memory Slots (Max. capacity of system memory 16GB) Onboard Graphics : Integrated Graphics Processor PCI/PCI-E Slots : 1 x PCI Express x16 slot 1 x PCI Express x1 slot SATA : 4 x SATA2, 1 x M.2 (PCIe NVMe Gen3 x4 ) IDE : N/A Audio : Realtek 662 on board, Supports 6-channel audio-out LAN : Realtek RTL8111 1000Mbps Ethernet on board
Back Panel I/Os : 1 x HDMI Port 1 x D-Sub (VGA) Port 6 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jacks (Line in / Front Speaker / Microphone)
ON-Board Pinheaders/Connectors: 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x LPC DEBUG
