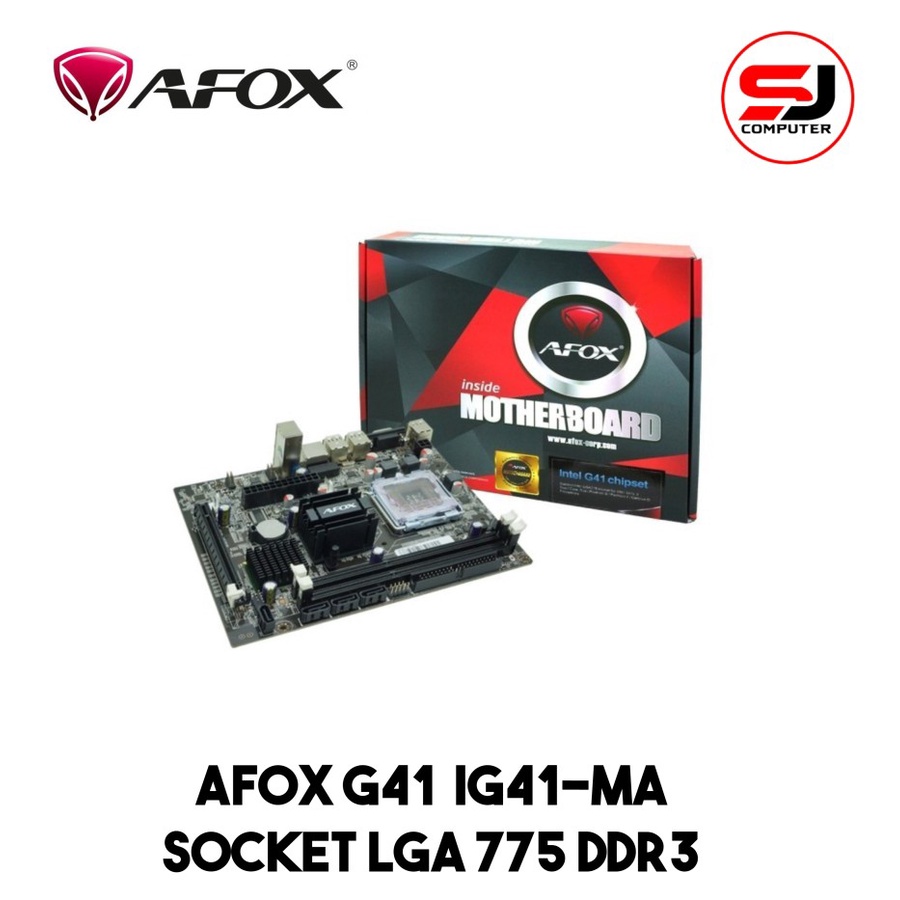

Motherboard Afox G41 MA6 (LGA 775, G41, DDR3)

Detail Motherboard Afox G41 MA6 (LGA 775, G41, DDR3)

Motherboard AFOX G41 DDR3

* Support Intel LGA775 Core 2 Duo/Core Duo/Pentium D/ Pentium 4/Celeron D Processor
* Chipset North Bridge: Intel G41 Chipset South Bridge: Intel ICH7 Chipset
* Memory Support Dual channel DDR3 800/1066/1333 Dimm 2 x Memory Slots (Max. up to
4GB each)
* Onboard Graphics Integrated Intel GMA X4500 graphics
* LAN Realtek 8103E 10/100M LAN on board
* Audio Chip integrated by Realtek ALC662
* Slot 1 x PCI Express x16 Slot
1 x PCI Slot
* Storage 4 x SATA II port
1 x IDE port
* Internal I/O Ports 1 x 24-pin ATX Power Connetor
1 x 4-pin ATX 12V Power Connetor
2 x USB 2.0 pinheaders support additional 4 USB 2.0 ports
1 x Front panel audio connector
1 x System Panel connector
* Back I/O Ports 1 x PS/2 keyboard
1 x PS/2 mouse
1 x VGA
1 x COM
1 x Parallel Port
4 x USB 2.0
1 x LAN Port
3 x Audio jack
* Form Factor Micro ATX - 211*168 mm
* PCB color Black
* Accessories 1 x Driver CD
1 x User Manual
1 x I/O Backboard
1 x SATA cable
* Garansi 1 Th
