MOSFET IRF520 IRF 520 MOSFET DRIVER 24V 5A MODULE ARDUINO RASPBERRY

Detail MOSFET IRF520 IRF 520 MOSFET DRIVER 24V 5A MODULE ARDUINO RASPBERRY

MTR-0015
=========

Deskripsi:
==============================
MOSFET IRF520 IRF 520 MOSFET DRIVER 24V 5A MODULE ARDUINO RASPBERRY PI

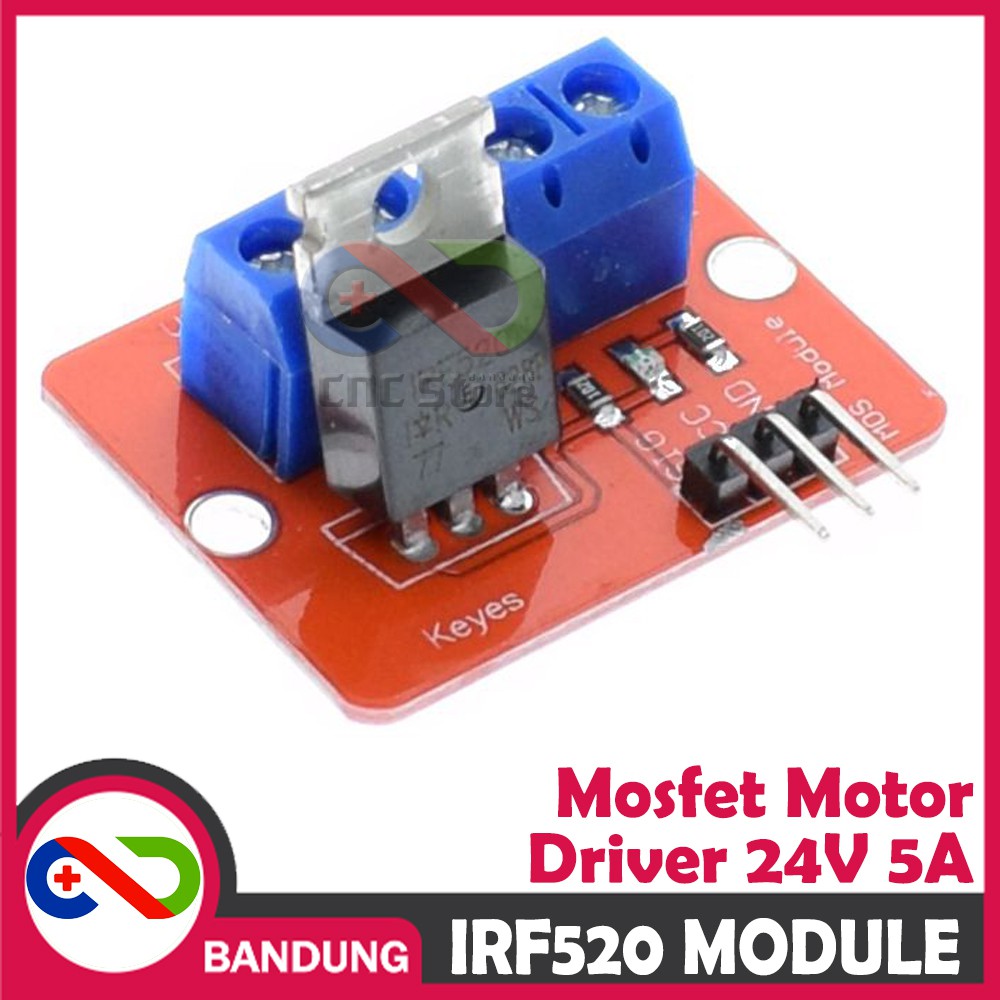

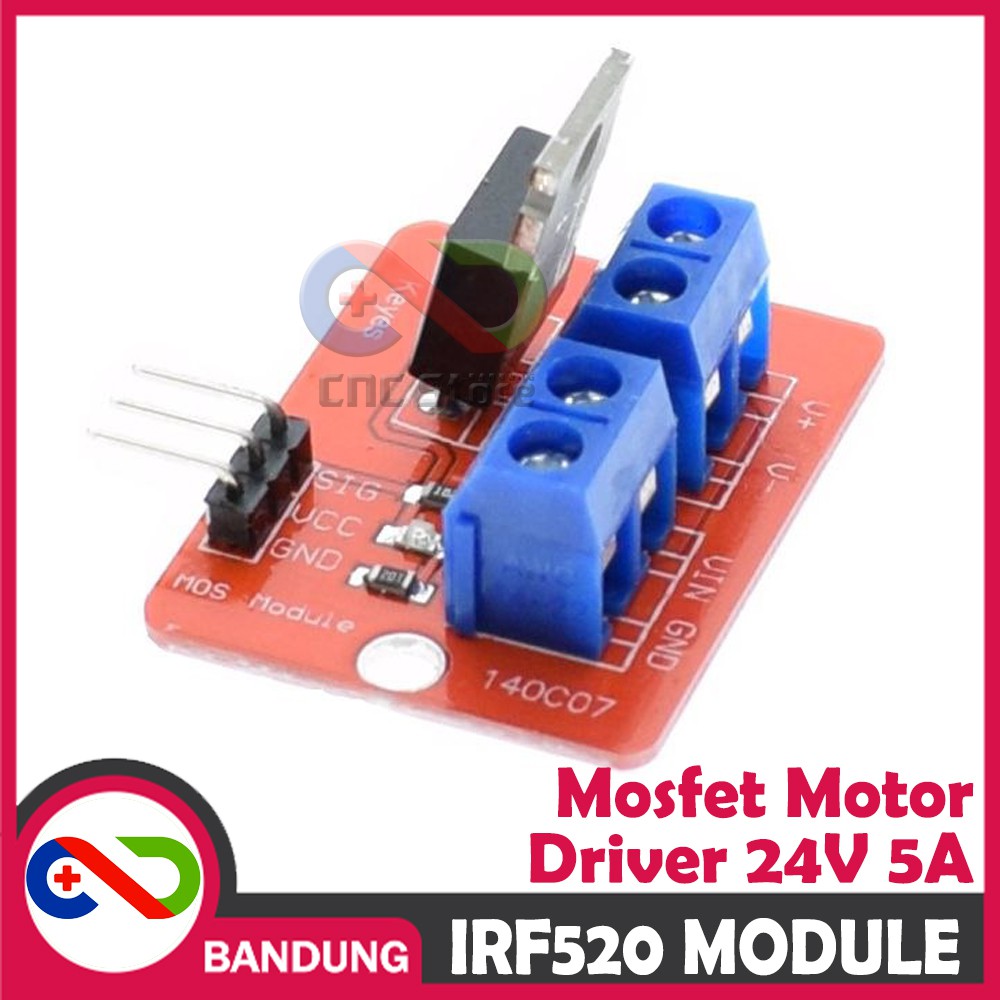

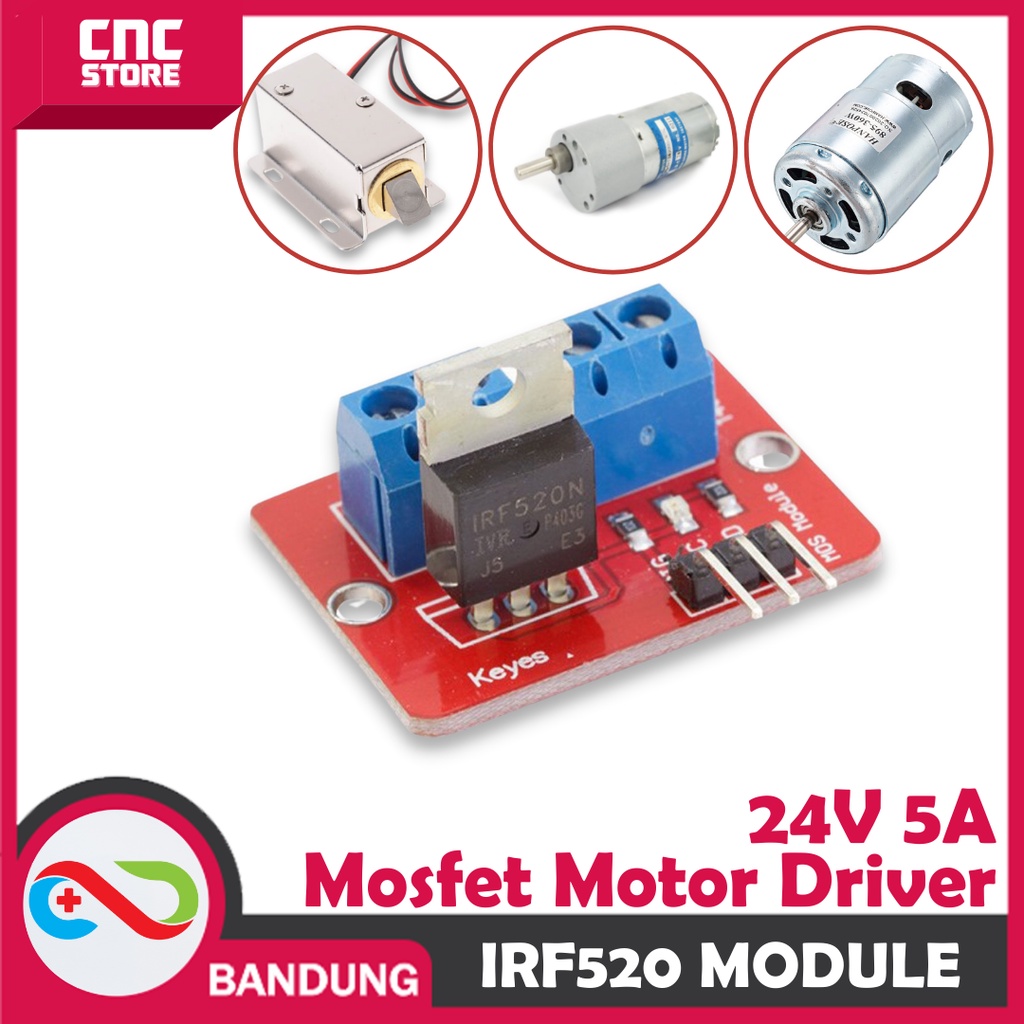

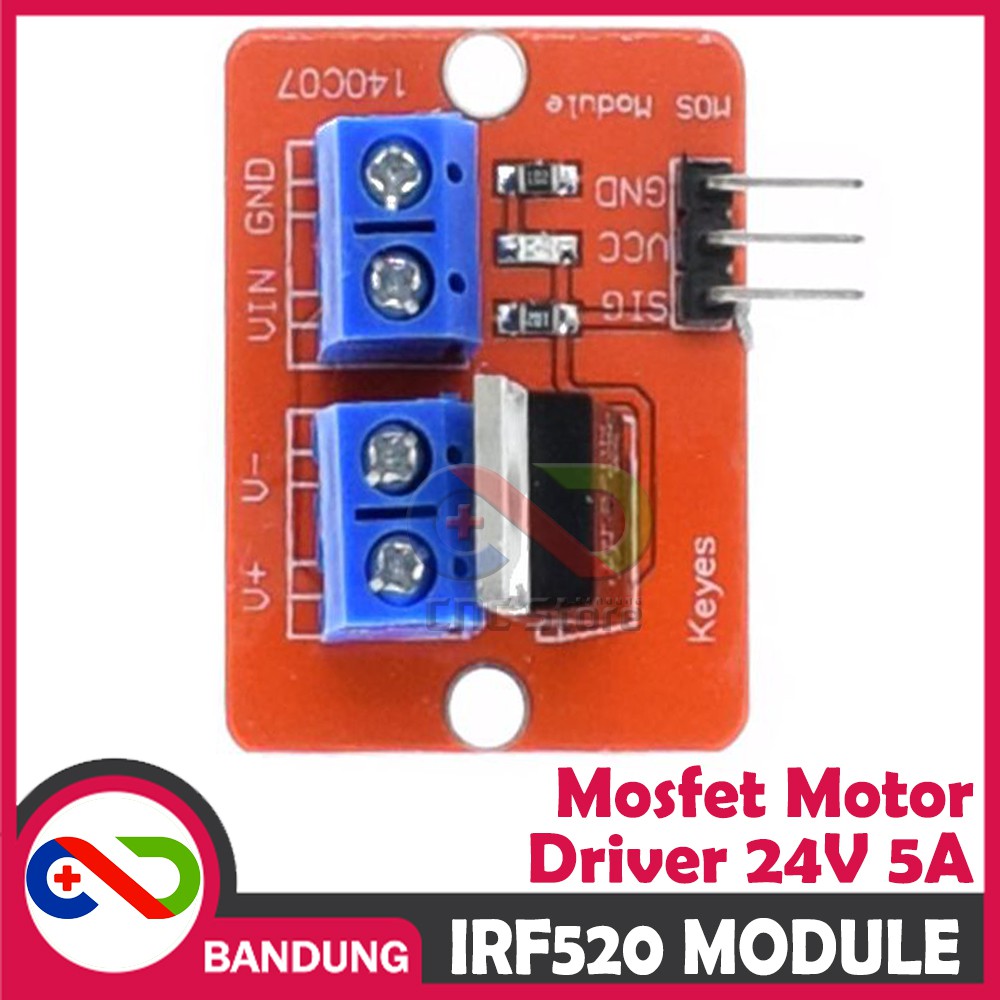

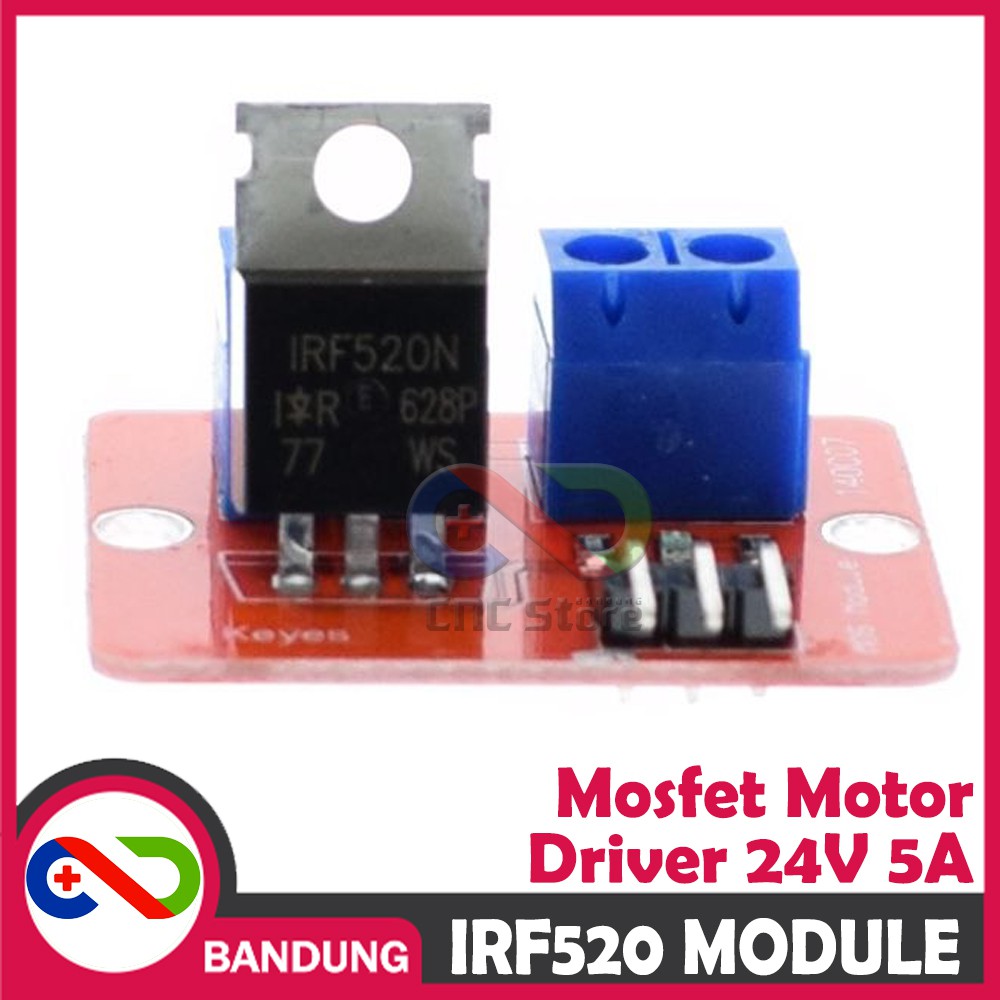

Mosfet IRF520 0 - 24v 5A Motor Solenoid LED Driver Module
Module ini menggunakan IRF520 power MOS tube sehingga dapat mengatur output PWM (dapat mengatur terang LED, motor speed regulation , dll), dan bisa menjalankan beban hingga 24v seperti LED , DC motor , micro pump, solenoid valve.

Spesifikasi:
=================================
- Ukuran: 33.4 * 25.6MM
- Voltase: 3.3V, 5V
- Voltase Output : 0 to 24V
- Arus Output : < 5A (lebih besar dari 1A tambahkan heat sink)
- Bisa untuk: Arduino, MCU, ARM, Raspberry Pi
- Weight: 10g
- Voltage: 3.3V, 5V
- Ports: Digital Level
- Output load voltage :0-24V
- Output load current: 5A (1A above need to add heat sink)
- Platform: Arduino, MCU, ARM, raspberry pie
- Using original IRF520 Power MOS, you can adjust the output PWM
- Arduino drive up to 24V allows the load, such as LED lights, DC motors, miniature pumps, solenoid valves
- PWM dimming LED can be used to achieve stepless dimming, variable speed motor

Aplikasi:
=================================
- Driver Motor
- Diming LED Strip
- Kontrol Selenoid
- Kontrol Pump DC
- Charger Aki

Isi Paket :
==============================
- 1 X MOSFET IRF520 0 - 24V 5A MOTOR SOLENOID LED DRIVER MODULE
