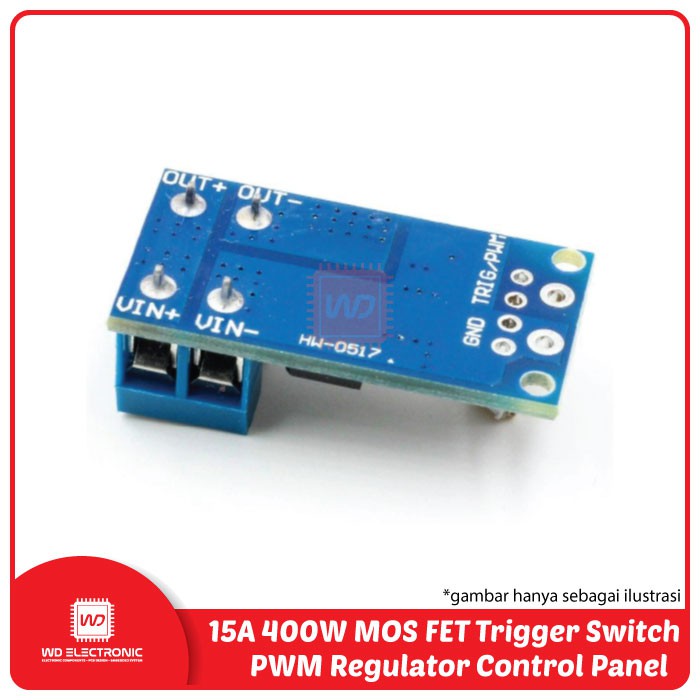

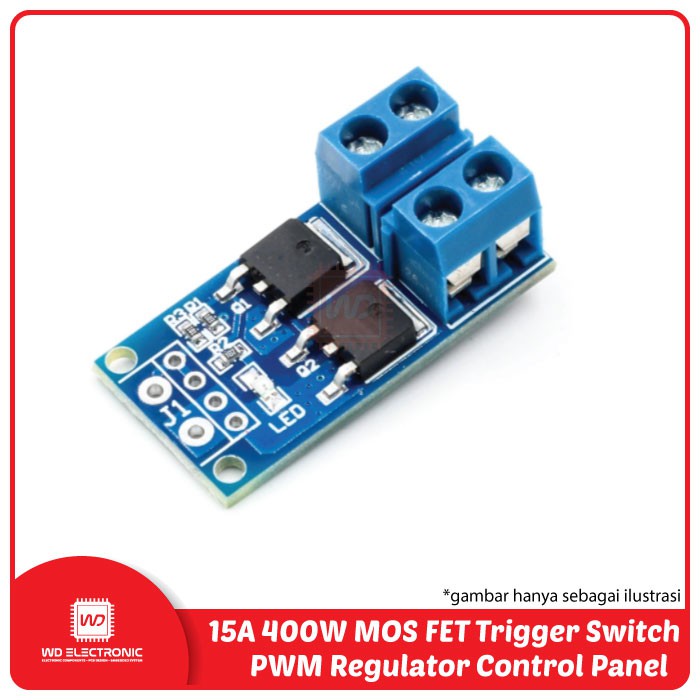

Detail Mosfet 15A 400W MOS FET Trigger Switch Driver board PWM Control

Hi #RekanEasyWare ...
EasyWare Part#: EP000698

Spesifications :
- Operating Voltage: DC 5V - 36V;
- The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal, the signal frequency 0-20KHZ perfect support.
- Output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power 400W! Lower auxiliary
- Cooling conditions, the maximum current up to 30A.
- Applications: You can control the output of power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valves, etc. you can enter PWM, motor speed control, lamp brightness.
- Availability: unlimited switch, Operating temperature: -40-85

Package :
- 1x 15A 400W MOS FET Trigger Switch Driver board PWM Control
