Detail Monitor TV Ondash 7" MP5, BT - PAKET Monitor TV 7 inch & Kamera CCD

PAKET 2 BARANG :

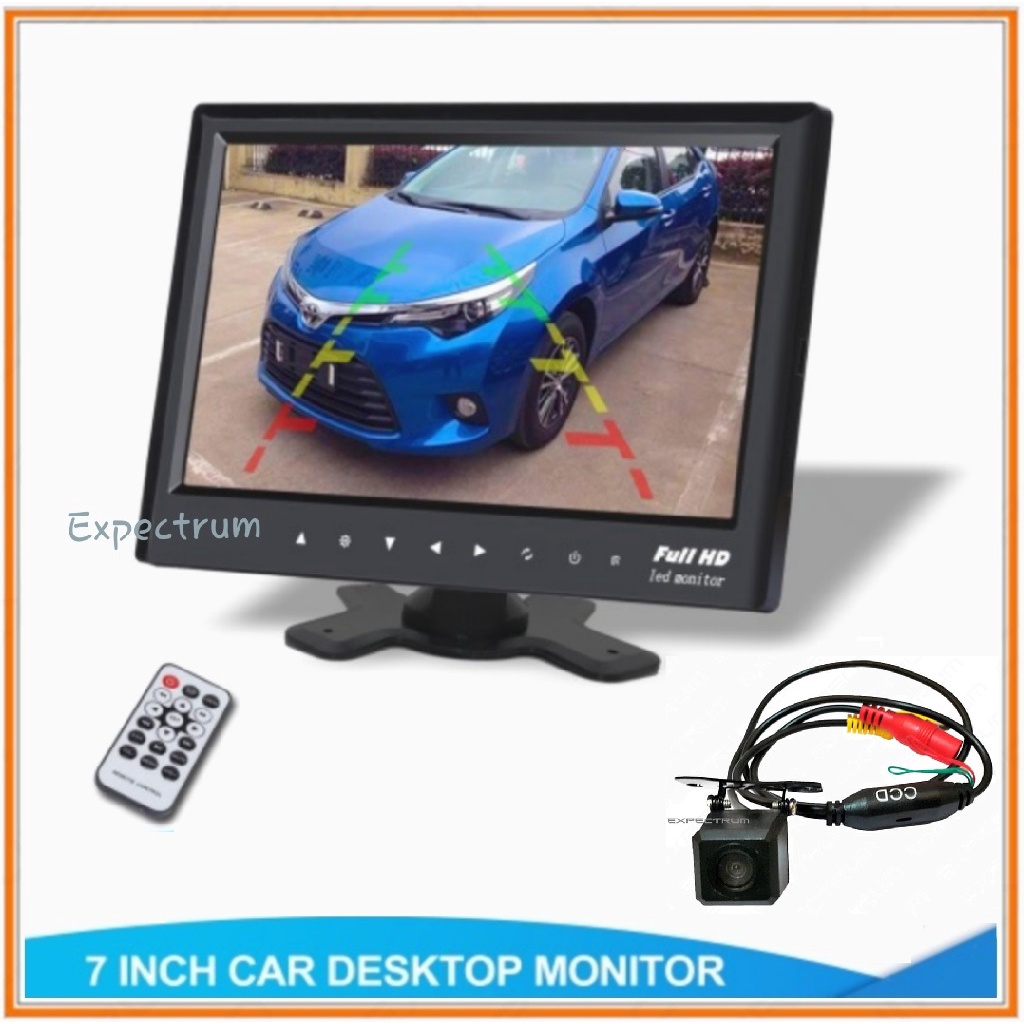

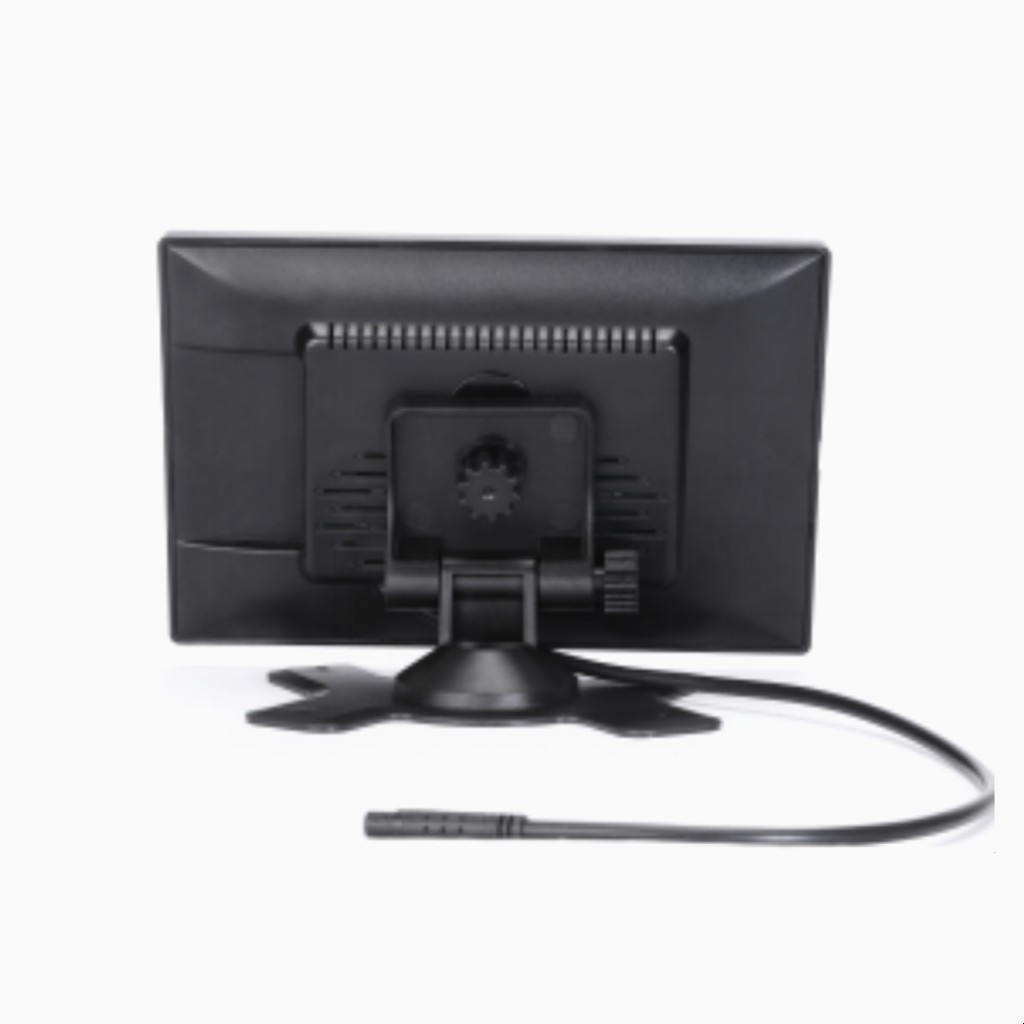

LCD Monitor 7 inch MP5, BT, USB, MMC, TFT Ondash - Monitor Back Camera

Bisa Mirrorlink, Bluetooth Telp & Musik. dan Ada Rca Audio Out.

Fitur:

Brand New dan kualitas tinggi
Cocok untuk semua kamera CCTV, mobil Reversing kamera, DVD player mobil
7" Mobil Rear View Monitor membantu dalam melihat lingkungan sekitar saat mengemudi secara terbalik dengan menghindari anak-anak, lalu lintas, pejalan kaki, mainan dan hewan peliharaan,
ada dukungan dari atau parkir
Instalasi: menginstal pada Dashboard
voltage : 12 - 24 volt
Fungsi putar untuk truk, bus, trailer dan sebagainya

Spesifikasi :
Support Bluetooth Telp dan Musik
Support Video MP4, AVI & MKV 1080p dgn penyandian Xvid
Support Music MP3, AAC & WMA,
Support Photo & EBook
High-resolution picture.
Full color LED backlight display.
With 2 Video input. (V2 to rearview camera, V1 to DVD/VCR/other video equipment)
Parking rearview priority: The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing your car; the monitor will close
itself after backing. Scenes will cut to rearview camera automatically while you're backing the car and change back to the original scene after that.
Supports Car DVD, VCD, camera, and other video equipment.
Can play video/audio files from SD card and USB flash disk. Enjoy HD movie and high quality music in your car.
FM transmitter function
Low power consumption.
Controlled by an IR remote control or the screen buttons.
Voltage 12 - 24 Volt

Note: please Connect the Rearview camera's power cable and trigger back camera (green cable) with Reversing lamp, and connect camera's video cable with LCD's yellow cable (Video V2) ,then the LCD will show Camera's video when you are Reversing, and stop playing movie.

Spesifikasi Kamera CCD

Kamera Mobil CCD untuk Depan & Belakang - Kotak.

Bisa untuk dipasang untuk kamera depan dan belakang.
Ada 2 kabel kecil yg kalo dipotong warna hijau berfungsi utk bolak balik kiri kanan gambar dan warna merah berfungsi hilangkan garis jarak.

Specifications:

TV System:NTSC/PAL
Effective Pixels:NTSC:656(H)492(V) PAL:628(H)*586(V)
Sensing Area(mm):4.9X3.7
Resolution(TV Lines):420 TV lines
Min IIIumination:0.01 Lux
Video Output:75 Ohm
S/N ratio:48dB
Lens F=1.7 mm waterproof lens
Lens Angle:170 degree Wide angle
Operating Temperature:-20C~+75C(RH95% Max.)
Storage Temperature:-30C~+85C(RH95% Max.)

Garansi 1 bln.
