Monitor TV Ondash 7 inch - PAKET Monitor TV 7 inch & Kamera CCD

Detail Monitor TV Ondash 7 inch - PAKET Monitor TV 7 inch & Kamera CCD

PAKET 2 BARANG :

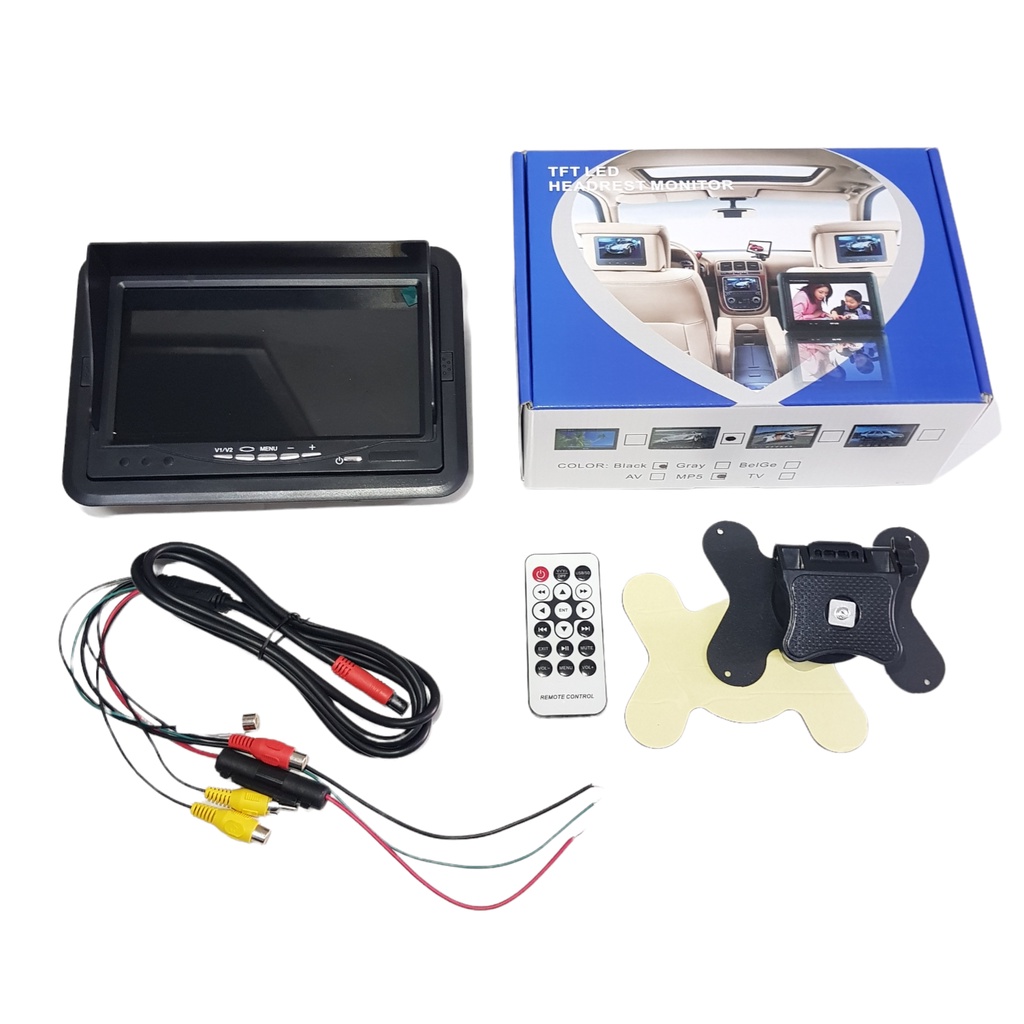

Monitor TV Ondash 7 inch - PAKET Monitor TV 7 inch & Kamera CCD

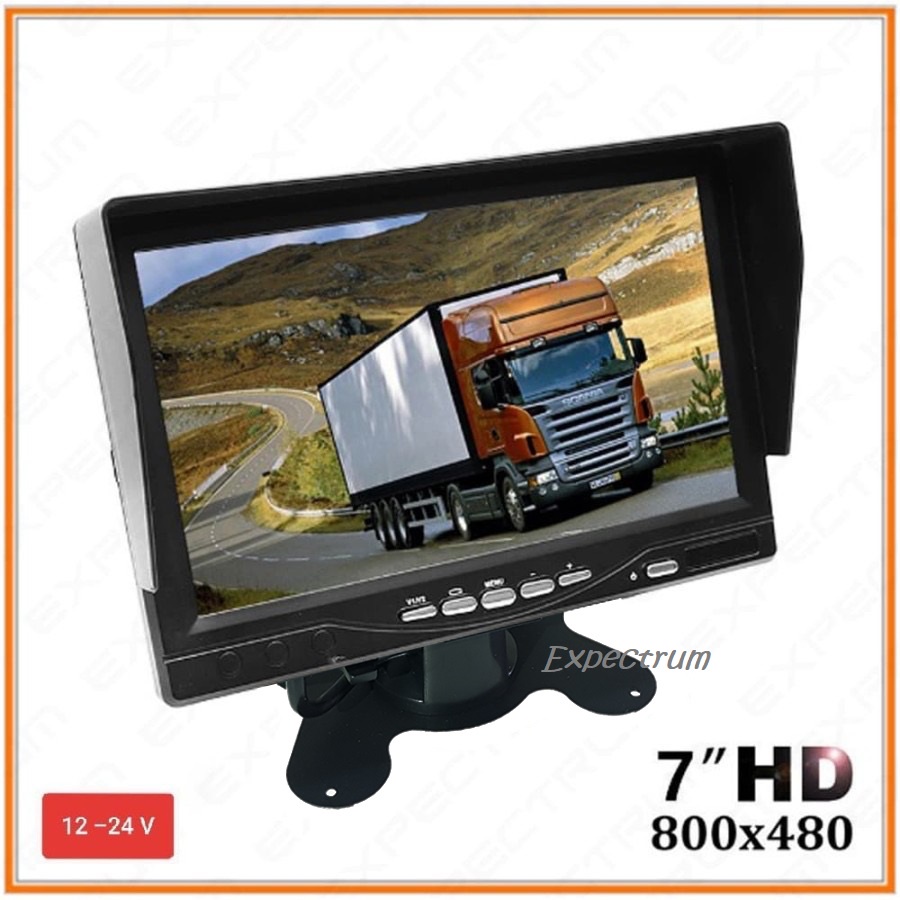

Monitor TV Ondash 7 inch , Support Reverse Automatic Screen Function

Utk yg tidak mau repot tarik kabel video dari kamera blkg ke monitor bisa beli MODUL WIRELESS TRANSMITTER ada di lapak sy.


Spesifikasi :

Specifications:
Screen Size:7 inch
Display Component: Color TFT-LCD
Number of Dots: 800W * RGB * 480H
Video Format: MP4. AVI & MKV support 1080p
Video Frequency: PAL/NTSC
Interface: 1 x USB, 1 x SD
Video: Two way video input
Audio: Two way audio output
Input: DC 12 -24V
Housing: ABS
Color: Black
Support reverse automatic screen function

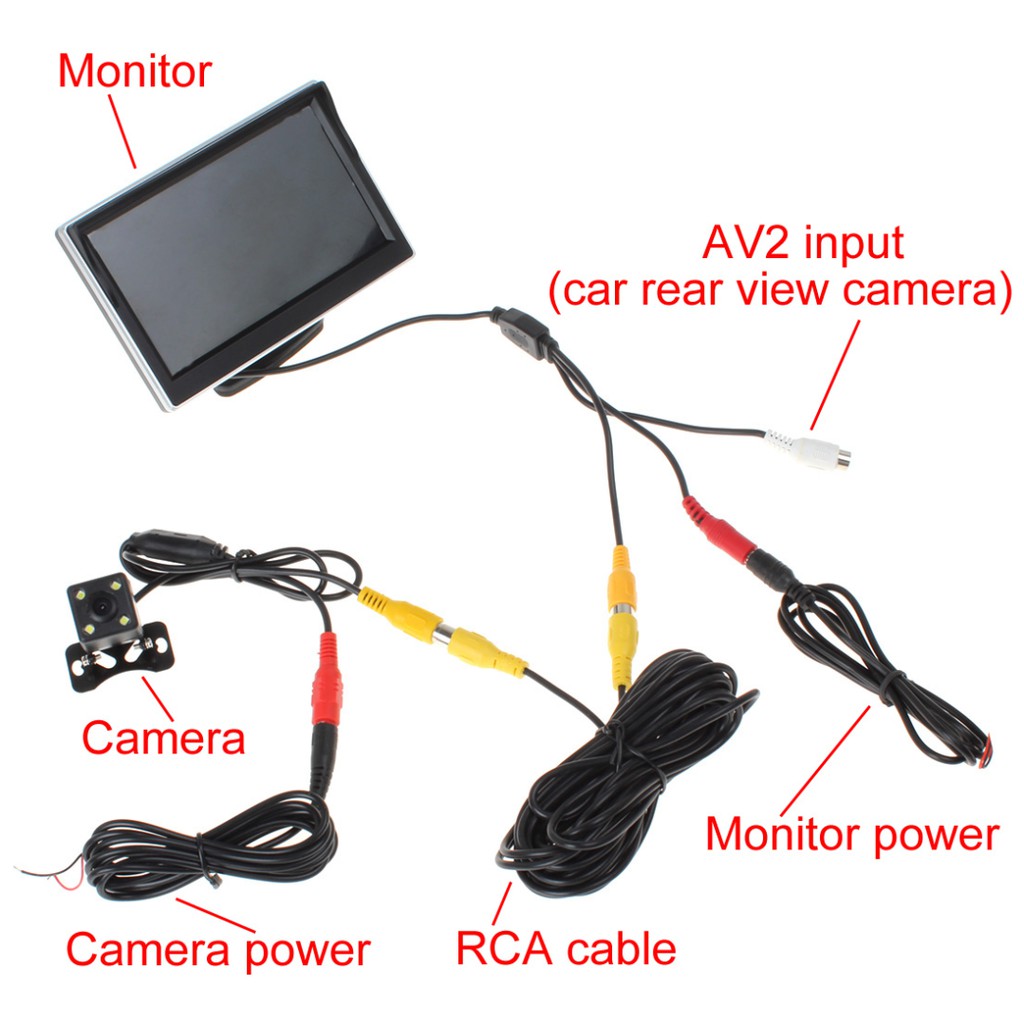

Note: please Connect the Rearview camera's power cable with Reversing lamp, and connect camera's video cable with LCD's yellow cable (Video V1),then the LCD will show Camera's video when you are Reversing, and stop playing movie (auto switching)


Spesifikasi Kamera CCD

Kamera Mobil CCD untuk Depan & Belakang - Kotak.

Bisa untuk dipasang untuk kamera depan dan belakang.
Ada 2 kabel kecil yg kalo dipotong warna hijau berfungsi utk bolak balik kiri kanan gambar dan warna merah berfungsi hilangkan garis jarak.

Specifications:

TV System:NTSC/PAL
Effective Pixels:NTSC:656(H)492(V) PAL:628(H)*586(V)
Sensing Area(mm):4.9X3.7
Resolution(TV Lines):420 TV lines
Min IIIumination:0.01 Lux
Video Output:75 Ohm
S/N ratio:48dB
Lens F=1.7 mm waterproof lens
Lens Angle:170 degree Wide angle
Operating Temperature:-20C~+75C(RH95% Max.)
Storage Temperature:-30C~+85C(RH95% Max.)

Garansi 1 bln

Gambar produk
