Detail Monitor TV Ondash 4.3 inch - PAKET Monitor TV 4.3 inch & Kamera CCD
PAKET 2 BARANG :

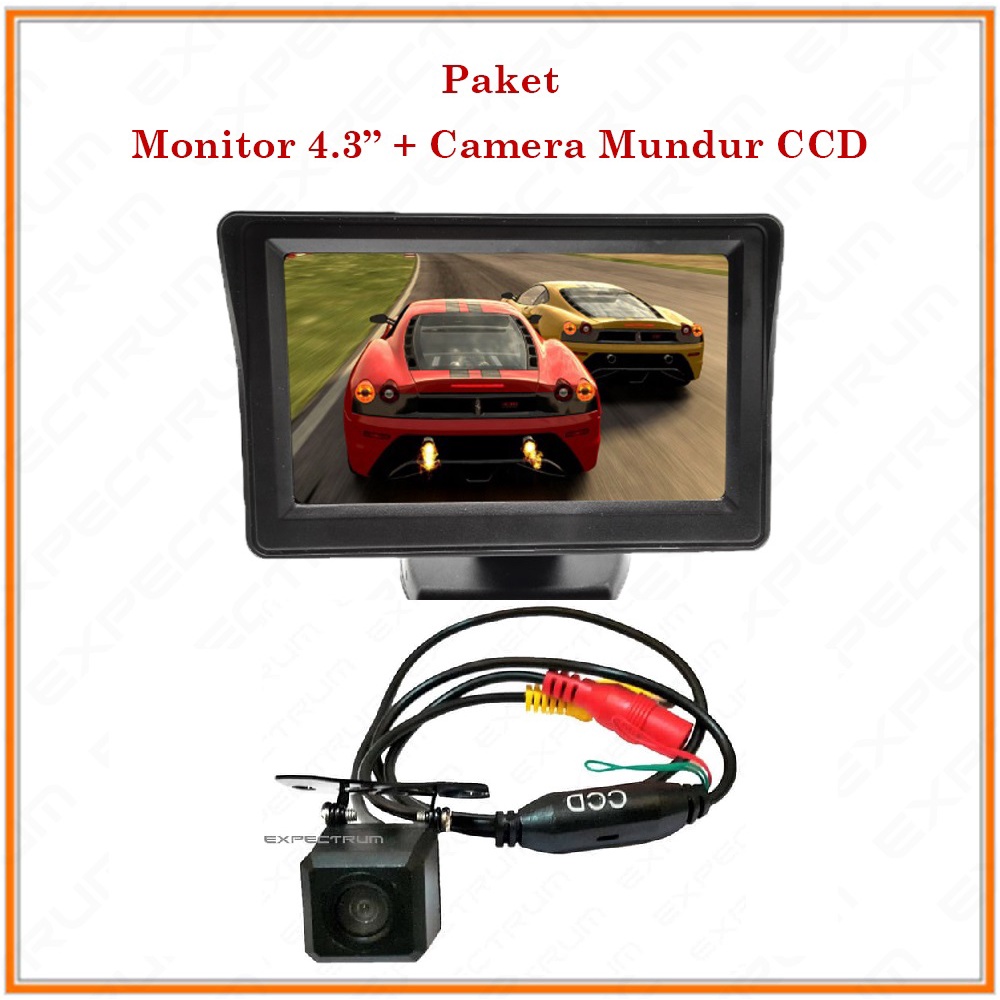

Monitor TV Ondash 4.3" + kamera mundur CCD
4.3 inch Rear View TFT-LCD Color Car Monitor , Support Reverse Automatic Screen Function
Utk tidak mau repot tarik kabel video dari kamera blkg ke monitor bisa beli MODUL WIRELESS TRANSMITTER ada di lapak sy.
Spesifikasi Tv:
Screen size: 4.3 inch Display mode: 4:3 Video formats: PAL/NTSC compatible Pixel: 640 (W) xRGBx480 (H) = 307200 Working voltage, DC 12 v Power rating: 5W Two-way video input design The adjustable Angle bracket design Working temperature: - 10 to + 50 Storage temperature: - 20 ~ + 60 Support reverse automatic screen function
Spesifikasi Kamera CCD
Kamera Mobil CCD untuk Depan & Belakang - Kotak.
Bisa untuk dipasang untuk kamera depan dan belakang. Ada 2 kabel kecil yg kalo dipotong warna hijau berfungsi utk bolak balik kiri kanan gambar dan warna merah berfungsi hilangkan garis jarak.
Specifications:
TV System:NTSC/PAL Effective Pixels:NTSC:656(H)492(V) PAL:628(H)*586(V) Sensing Area(mm):4.9X3.7 Resolution(TV Lines):420 TV lines Min IIIumination:0.01 Lux Video Output:75 Ohm S/N ratio:48dB Lens F=1.7 mm waterproof lens Lens Angle:170 degree Wide angle Operating Temperature:-20C~+75C(RH95% Max.) Storage Temperature:-30C~+85C(RH95% Max.)
