Monitor Mirror TFT Parking 7" MP5 - PAKET Kc Spion Mobil & Kamera CCD

Detail Monitor Mirror TFT Parking 7" MP5 - PAKET Kc Spion Mobil & Kamera CCD

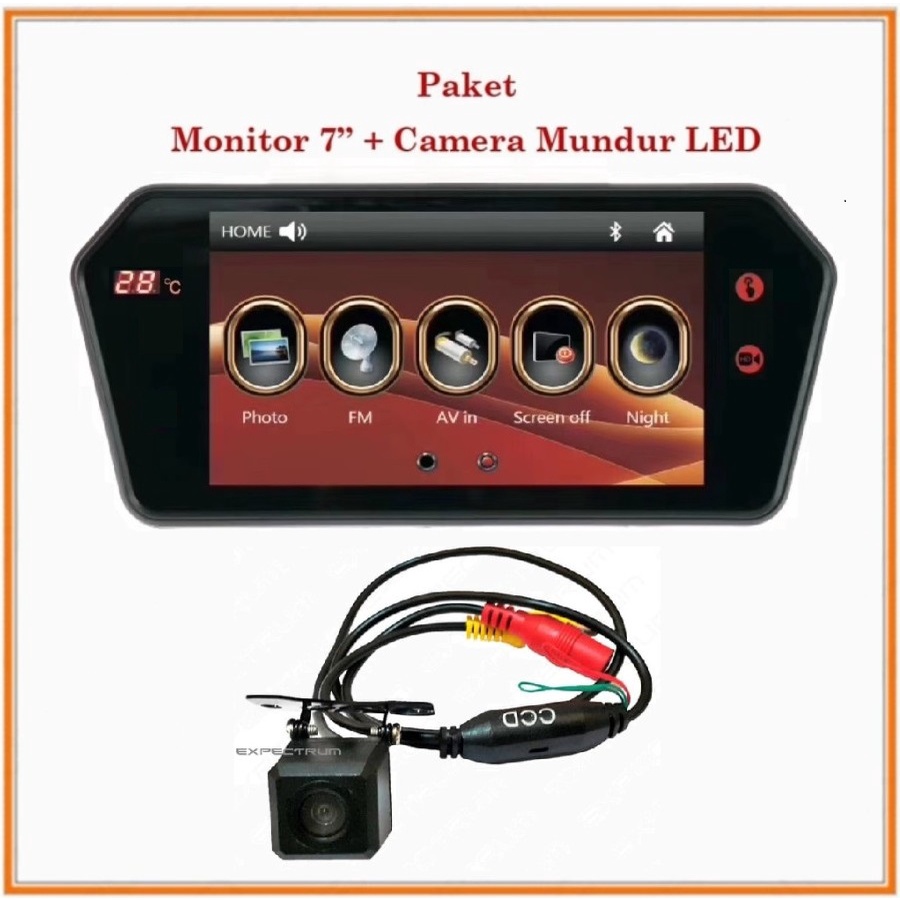

PAKET 2 BARANG :

Monitor kc spion 7" MP5 + kamera mundur CCD

Rearview Monitor 7" MP5. USB. MMC. BT. Mirrolink & Support Video 1080P

Bisa Full Mirrolink Android Via kabel data sampai os Android 8.x
Support Video MKV, MP4 & AVI sampai skala 1080P

Specifications:

Car Monitor Size: Approx. 242x108x20mm
Monitor Power Cable Length: Approx. 1.5m/ 4.92ft
7" 16:9 TFT LCD wide screen panel
Universal clip on existing mirror
Resolution: 800RGB(H) x 480(V)
Built in Bluetooth
With USB/ TF/ Mirco SD card port
FM audio output, supply more frequency point
Power Comsumption: 7W
Video: Two way video input. V1/ V2 selecting
System: PAL/ NTSC auto switch
It can play TXT format
Operating Temperature: -20℃ - 50℃
Power Supply: DC 12V, 1.5A(max.current)
Minimum Lumination: 2Lux (IR On)
Rear Watching: Image can be changed left and right
Operate Mode: Touch screen
conveniently easy your operation
Support Bluetooth function, MP5 and FM transmitter. Working perfectly with car DVD, VCD and other video equipment
Support MPEG1, MPEG2, DAT, MPEG4, MPEG5, DIV, DIVX, Support MP3, WMA audio files
Support JPEG(JPG), BMP, GIF picture files
Support various playing methods of picture: ordinal, random, menu demand, pause, enlarge, reduce, circumrotate, enantiomorph, etc
Multi-language OSD

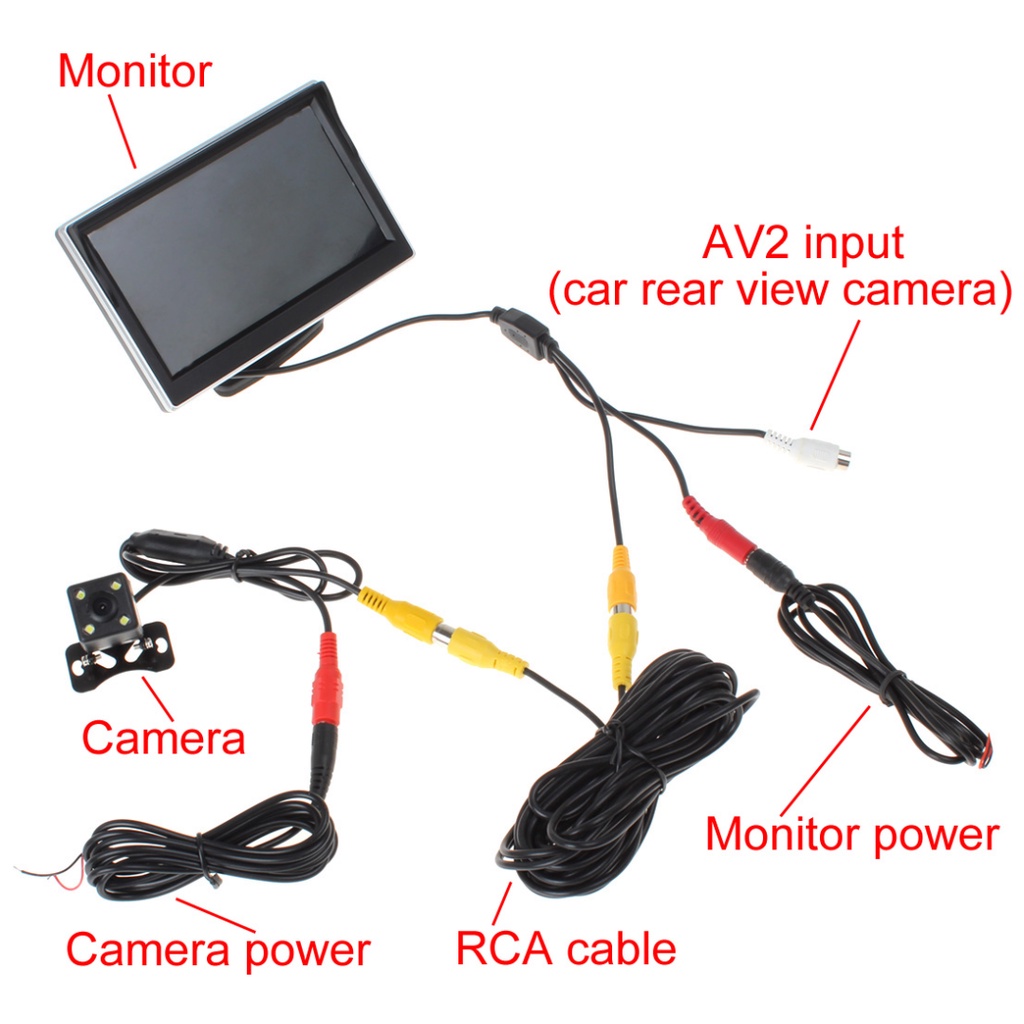

One Video input, AV2 includes reversing function
AV1 connects to car DVD, VCR and other video equipment. AV2 to the car backup rearview camera
When you are backing your car, the scenes will be cut to rearview camera automatically
With NTSC and PAL video system, it can play the video or audio files, enjoy HD music or movies.


Spesifikasi Kamera CCD

Kamera Mobil CCD untuk Depan & Belakang - Kotak.

Bisa untuk dipasang untuk kamera depan dan belakang.
Ada 2 kabel kecil yg kalo dipotong warna hijau berfungsi utk bolak balik kiri kanan gambar dan warna merah berfungsi hilangkan garis jarak.

Specifications:

TV System:NTSC/PAL
Effective Pixels:NTSC:656(H)492(V) PAL:628(H)*586(V)
Sensing Area(mm):4.9X3.7
Resolution(TV Lines):420 TV lines
Min IIIumination:0.01 Lux
Video Output:75 Ohm
S/N ratio:48dB
Lens F=1.7 mm waterproof lens
Lens Angle:170 degree Wide angle
Operating Temperature:-20C~+75C(RH95% Max.)
Storage Temperature:-30C~+85C(RH95% Max.)

Garansi 1 bln.
