Monitor Mirror TFT Parking 5 inchi - PAKET Kc Spion Mobil & Kamera CCD

Detail Monitor Mirror TFT Parking 5 inchi - PAKET Kc Spion Mobil & Kamera CCD

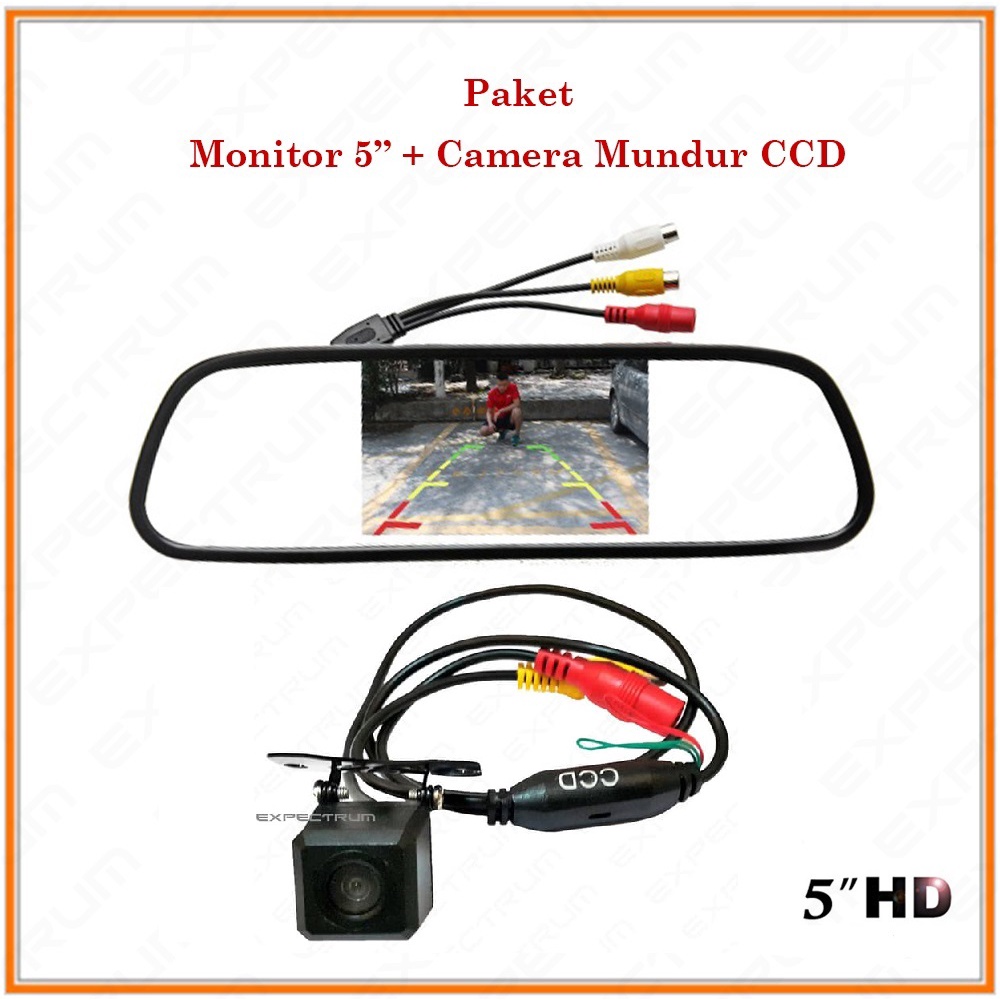

PAKET 2 BARANG :

Monitor kc spion 5" + kamera mundur CCD

5 inch Rear View TFT-LCD Color Car Monitor , Support Reverse Automatic Screen Function dan Kamera mundur CCD 15mm

Spesifikasi :

Screen size: 5 inch
Display mode: 16;9
Video formats: PAL/NTSC compatible
Pixel: 800 (W) xRGBx480 (H) = 384.000
Working voltage, DC 12 v
Power rating: 5W
Two-way video input design
The adjustable Angle bracket design
Working temperature: - 10 to + 50
Storage temperature: - 20 ~ + 60
Support reverse automatic screen function


Spesifikasi Kamera CCD

Kamera Mobil CCD untuk Depan & Belakang - Kotak.

Bisa untuk dipasang untuk kamera depan dan belakang.
Ada 2 kabel kecil yg kalo dipotong warna hijau berfungsi utk bolak balik kiri kanan gambar dan warna merah berfungsi hilangkan garis jarak.

Specifications:

TV System:NTSC/PAL
Effective Pixels:NTSC:656(H)492(V) PAL:628(H)*586(V)
Sensing Area(mm):4.9X3.7
Resolution(TV Lines):420 TV lines
Min IIIumination:0.01 Lux
Video Output:75 Ohm
S/N ratio:48dB
Lens F=1.7 mm waterproof lens
Lens Angle:170 degree Wide angle
Operating Temperature:-20C~+75C(RH95% Max.)
Storage Temperature:-30C~+85C(RH95% Max.)

Garansi 1 bln

Gambar produk
