Monitor AHD Ondash 7" - PAKET Monitor TV 7" AHD & Kamera AHD 1080P

Detail Monitor AHD Ondash 7" - PAKET Monitor TV 7" AHD & Kamera AHD 1080P

AHD Monitor dan AHD Camera 1080P

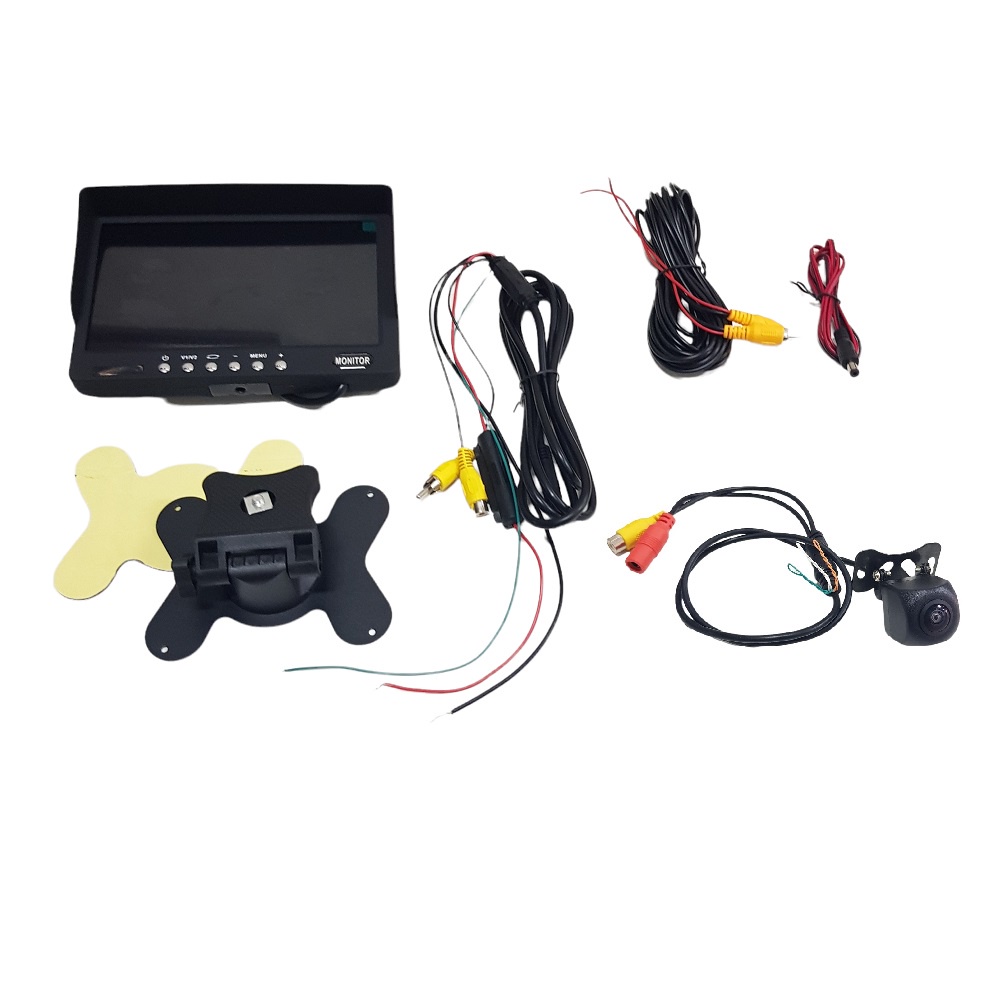

PAKET 2 BARANG :

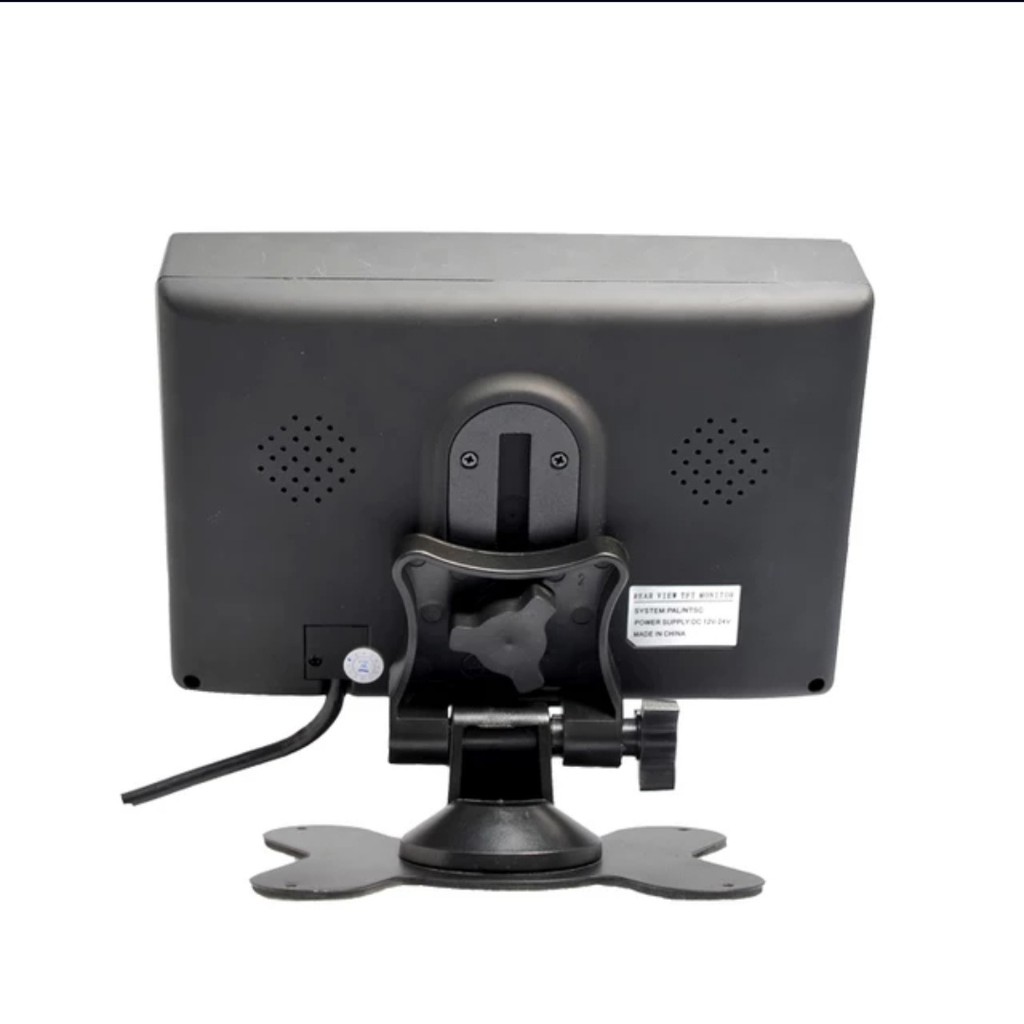

Monitor TV Ondash 7 Inchi AHD - PAKET Monitor TV 7 inchi AHD & Kamera AHD 1080P

Monitor TV Ondash 7 inch , Support Reverse Automatic Screen Function dan Kamera mundur CCD HD

Spesifikasi :

Specifications:
Screen Size:7 inch AHD
Display Component: Color TFT-LCD
Number of Dots: 1024 * 600
Video Frequency: PAL/NTSC
Video: Two way video input, Supports AHD / CVBS signals.
Input: DC 12 -24V
Housing: ABS
Color: Black
Support reverse automatic screen function

Note: please Connect the Rearview camera's power cable with Reversing lamp, and connect camera's video cable with LCD's yellow cable (Video V1),then the LCD will show Camera's video when you are Reversing, and stop playing movie (auto switching)

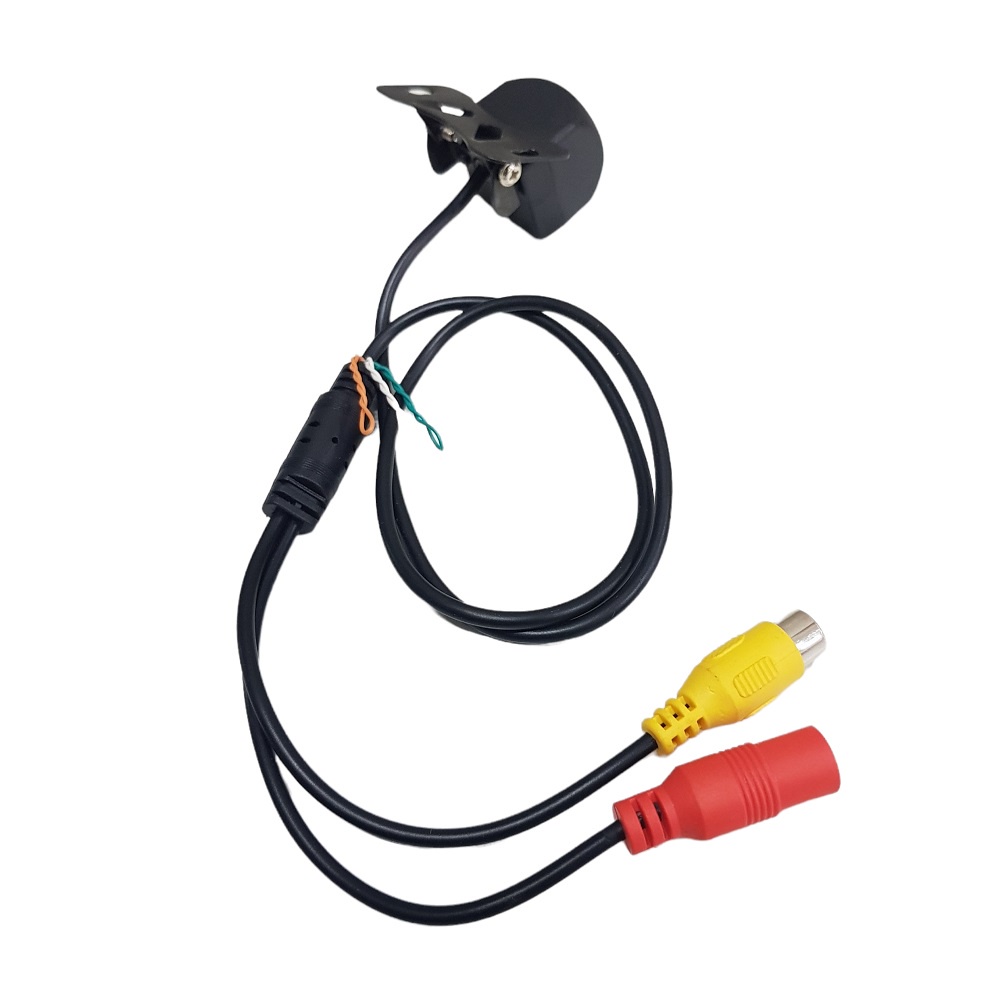

Kamera Mundur AHD 1080P / AHD 720P

Angle View 170 Degree

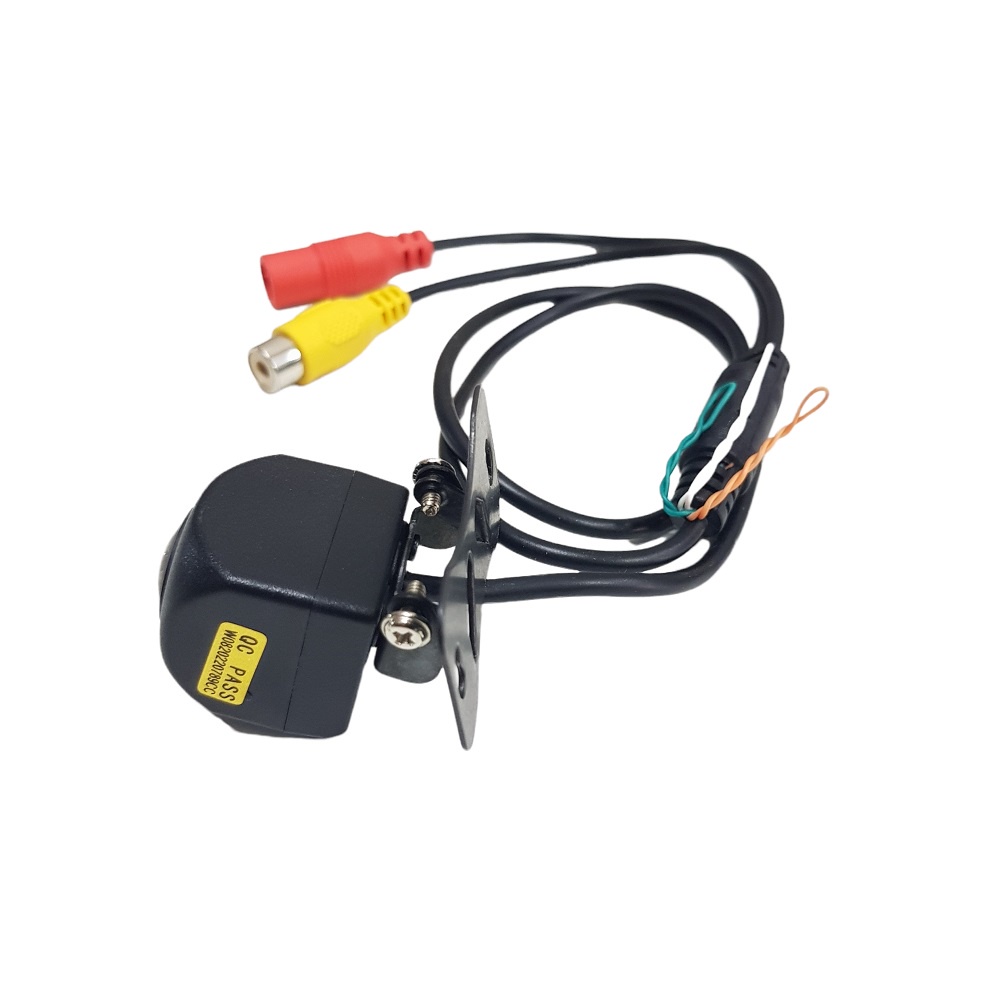

Ada 3 kabel kecil default dari pabrik tersambung itu utk posisi kamera di AHD 720P, Ada garis jarak dan gambar utk pasang di depan

kabel orange utk AHD 720P / 1080P
kabel hijau utk balik kiri kanan gambar
kabel putih utk garis jarak, bisa ada / tidak ada

* Viewing angle: Real 170 Degrees Visible Range .
* AHD:1080P / 720P, Angle View 170 Degree
* Video output: AHD Video Signal
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Waterproof : IP68
* Low illumination: 0.01Lux
* Signal to noise ratio: ≥69dB
* Working power supply: DC12 - 24V


Garansi 1 bln

Gambar produk
