Molex KF2510 11P 11 Pin 11Pin 2.54mm Header Terminal CI31 Connector 2.54mm

Detail Molex KF2510 11P 11 Pin 11Pin 2.54mm Header Terminal CI31 Connector 2.54mm

Hi #RekanEasyWare ...
- EasyWare Part# [MALE STRAIGHT]: EP001003
- EasyWare Part# [FEMALE]: EP001004

Catatan:
- Ada 2 varian dalam link produk ini.
- Harga untuk 1pcs
- Alternatif dari merek ternama seperti Molex dan JST, dikarenakan harganya yang terjangkau.

Spesifications :
- Type: Right Angle & Straight Pin Header Connector
- Pitch: 2.5mm
- Poles: 11 pins
- Wire Range:0.2mm² (24AWG)
- Applicable printed board thickness: 0.8 ~1.6mm
- Voltage rating: 250V AC/DC.
- Current rating: 3A AC/DC
- Working temperature: -25°C ~+85°C
- Withstand voltage: 1000V/min
- Contact resistance: ≤0.02 ohm
- Insulation resistance: ≥1000M ohm
- Color: cream (beige)

Package :
- 1x Molex KF2510 11P 11 Pin 11Pin 2.54mm Header Terminal CI31 Connector 2.54mm

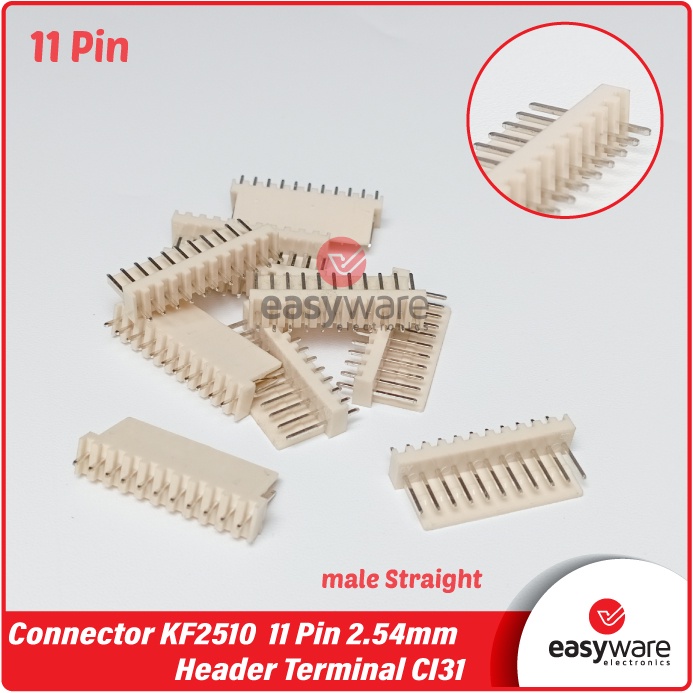

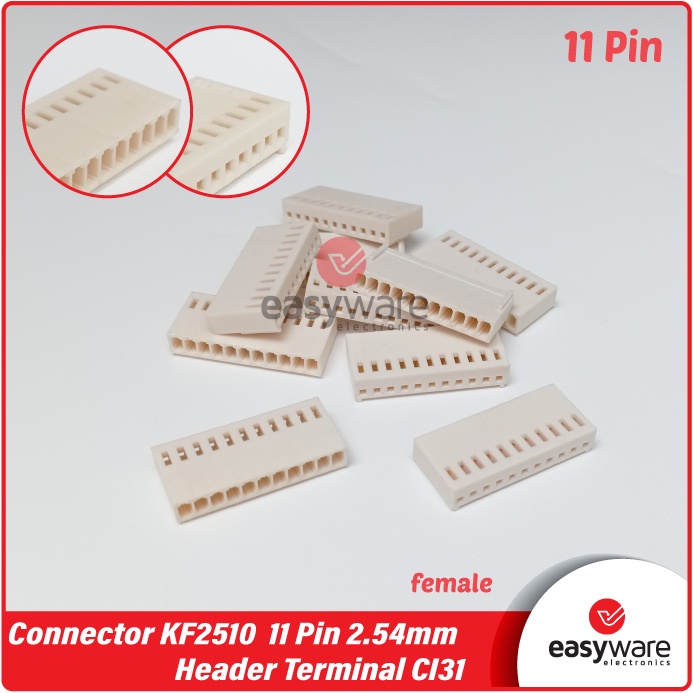

Male Straight, Male Right Angle or Female

Gambar produk
