Detail Molex KF2510 10P 10 Pin 10Pin 2.54mm Header Terminal CI31 Connector 2.54mm Hi #RekanEasyWare ...

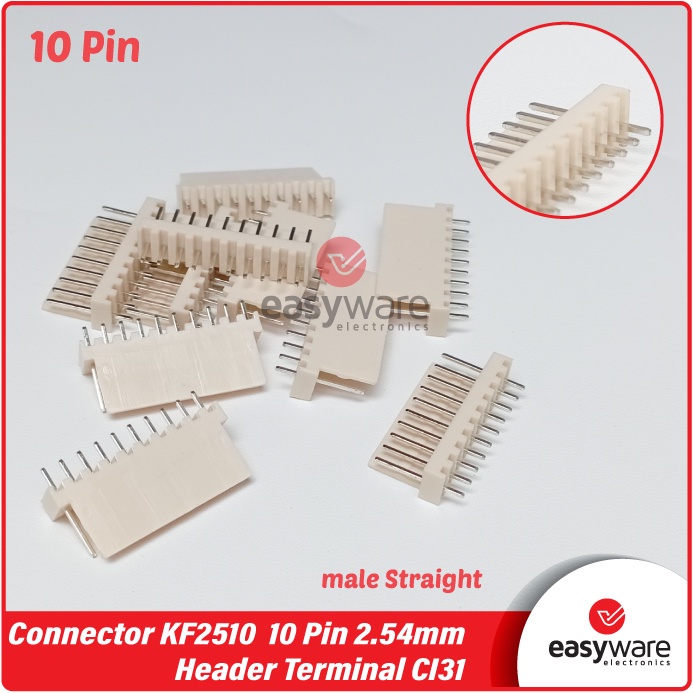

- EasyWare Part# [MALE STRAIGHT]: EP001001

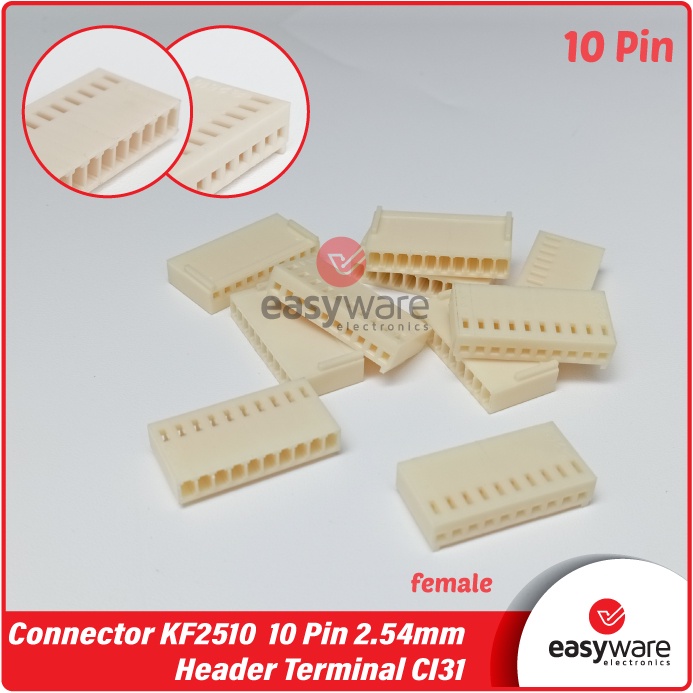

- EasyWare Part# [FEMALE]: EP001002
Catatan:
- Ada 2 varian dalam link produk ini.
- Harga untuk 1pcs
- Alternatif dari merek ternama seperti Molex dan JST, dikarenakan harganya yang terjangkau.
Spesifications :
- Type: Right Angle & Straight Pin Header Connector
- Pitch: 2.5mm
- Poles: 10 pins
- Wire Range:0.2mm² (24AWG)
- Applicable printed board thickness: 0.8 ~1.6mm
- Voltage rating: 250V AC/DC.
- Current rating: 3A AC/DC
- Working temperature: -25°C ~+85°C
- Withstand voltage: 1000V/min
- Contact resistance: ≤0.02 ohm
- Insulation resistance: ≥1000M ohm
- Color: cream (beige)
Package :
- 1x Molex KF2510 10P 10 Pin 10Pin 2.54mm Header Terminal CI31 Connector 2.54mm
Male Straight, Male Right Angle or Female
Gambar produk Molex KF2510 10P 10 Pin 10Pin 2.54mm Header Terminal CI31 Connector 2.54mm Molex KF2510 10P 10 Pin 10Pin 2.54mm Header Terminal CI31 Connector 2.54mm Molex KF2510 10P 10 Pin 10Pin 2.54mm Header Terminal CI31 Connector 2.54mm
