Molex DMS 59 to Dual DVI

Detail Molex DMS 59 to Dual DVI

Barang baru stok lama

The DMS-59 connector is used by ATI, NVIDIA, and Matrox for video cards sold in Lenovo Thinkcentres, Viglen Genies and Omninos, Dell, HP, and Sun computers.

DMS-59 is a 59-pin electrical connector generally used for computer video cards. It provides two DVI outputs on a single connector. An adapter cable is needed for conversion from DMS-59 to DVI or VGA, and different types of adapter cables exist. The connector is four pins high and 15 pins wide, with a single pin missing from the top row, in a D-shaped shell, with thumbscrews.

The application for DMS-59 is to support a higher density of video displays, in a similar amount of connector space to a DVI connector. DMS-59 supports two DVI Dual Link digital channels or two VGA analog channels from a single connector.
The compact size lets a half-height card support two high resolution displays,
and a full-height card (with two DMS-59 connectors) up to four high resolution displays.

Video Y Splitter Cable, DMS-59 pin to Dual DVI-I
For Dual Monitor setups or as a DMS-59pin to DVI-I Adapter
Consists of a Male DMS-59 pin to twin female DVI-I splitter

This cable will convert a DMS-59 video card to dual DVI - I

- Converts the DMS-59 port to digital DVI
- Can be used with DIGITAL monitors, flat panels and projectors.

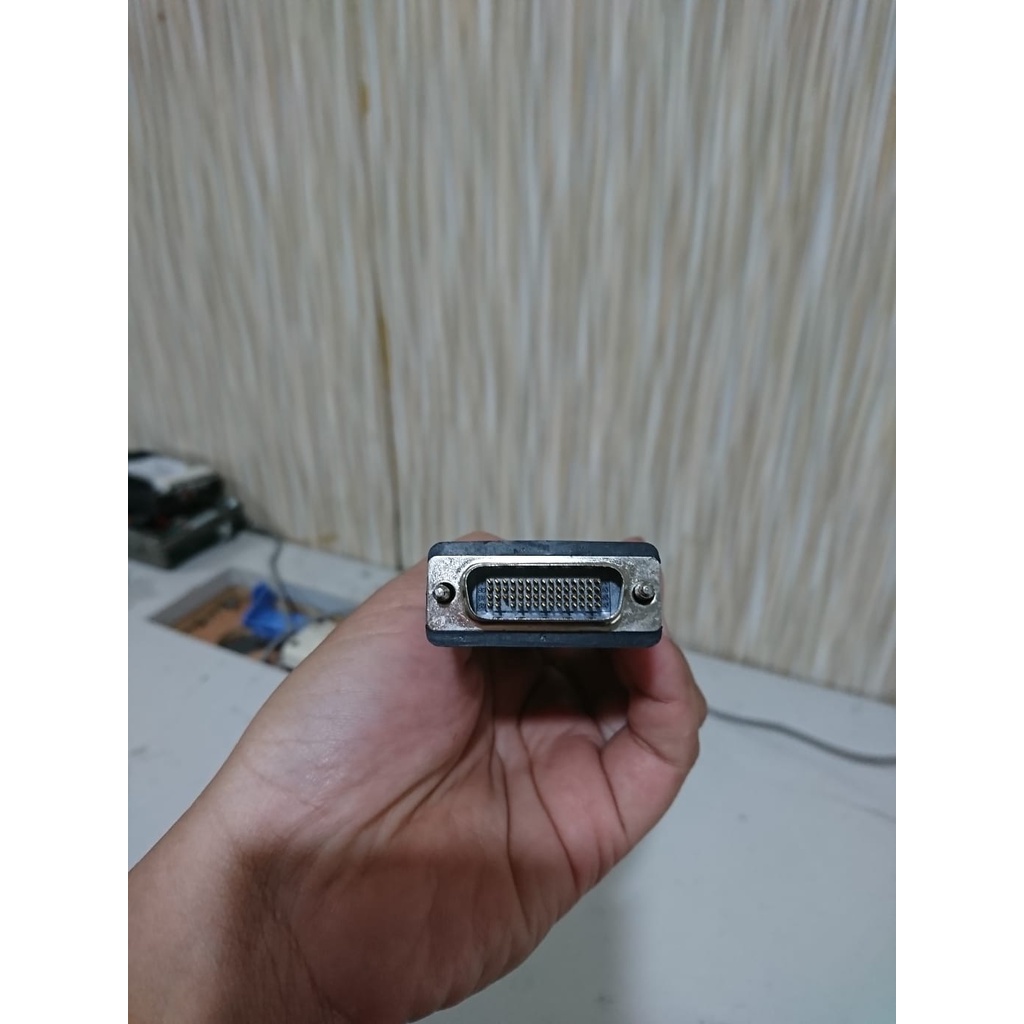

- The DMS-59 side is male and has 59 pins (3 rows of 15 and 1 row of 14 two pins).

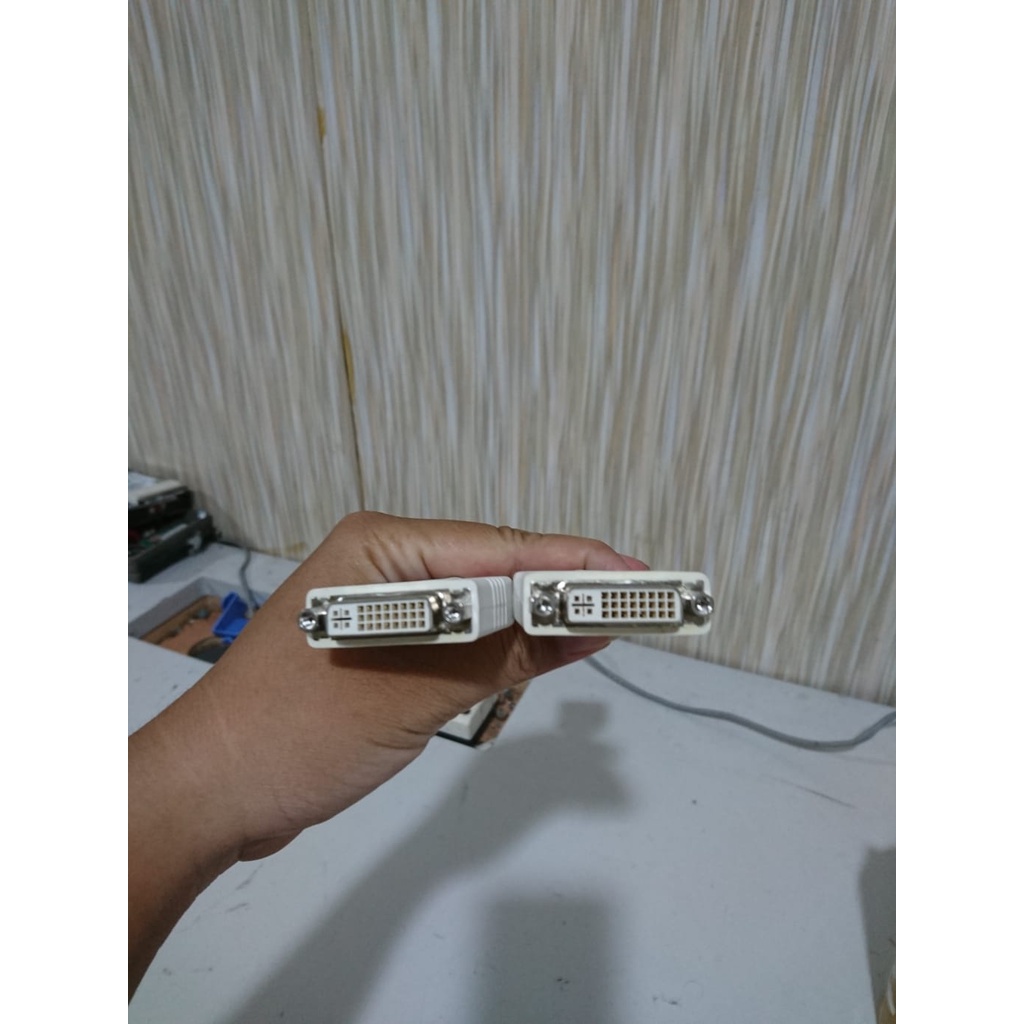

- The DVI side is female for the 24+5 pin monitor cables.
