MOJITO Digital Audio Stereo Amplifier Module, 2X15W Digital Audio Stereo Amplifier Module Board TPA3110 D

Detail MOJITO Digital Audio Stereo Amplifier Module, 2X15W Digital Audio Stereo Amplifier Module Board TPA3110 D

Honey, welcome to MOJITO. Your smile is like a cup of mojito. I hope you can feel the romance and beauty here. The customer service will give you the most satisfactory service. The products here make you intoxicated, just like that cup of mojito~

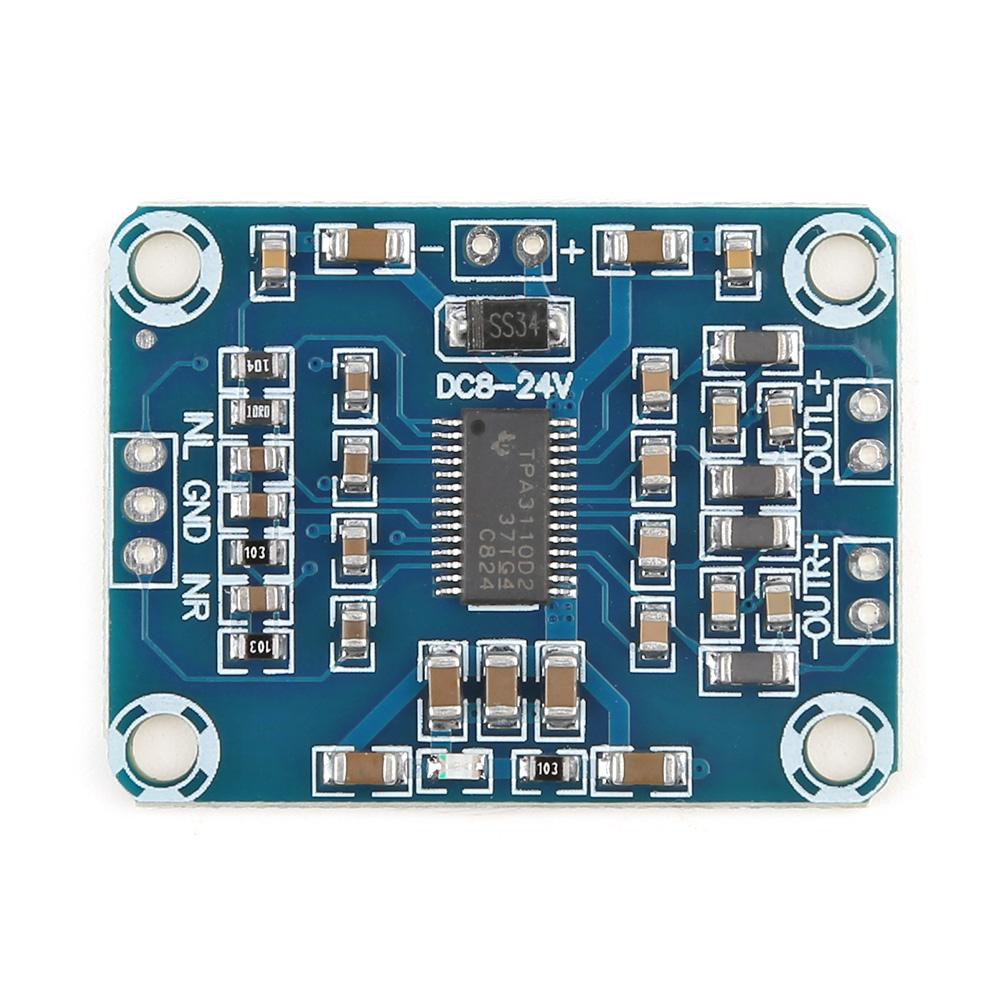

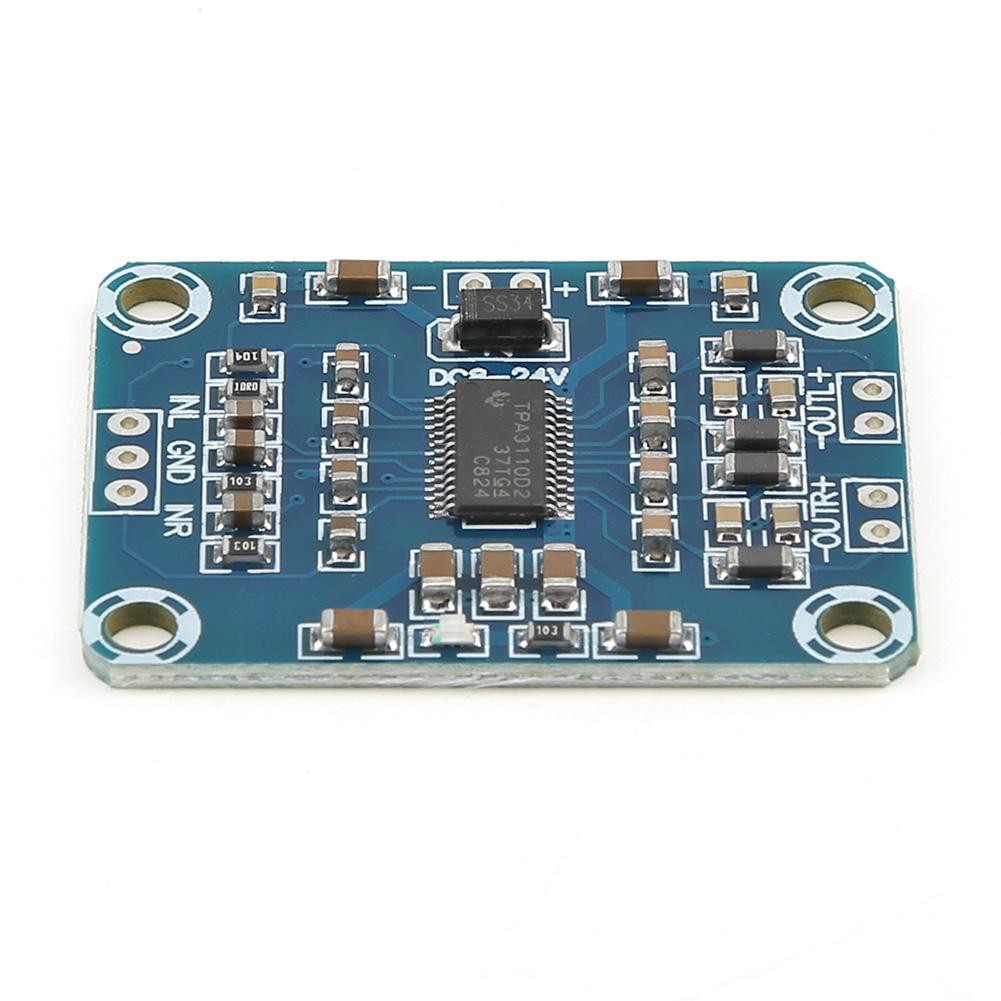

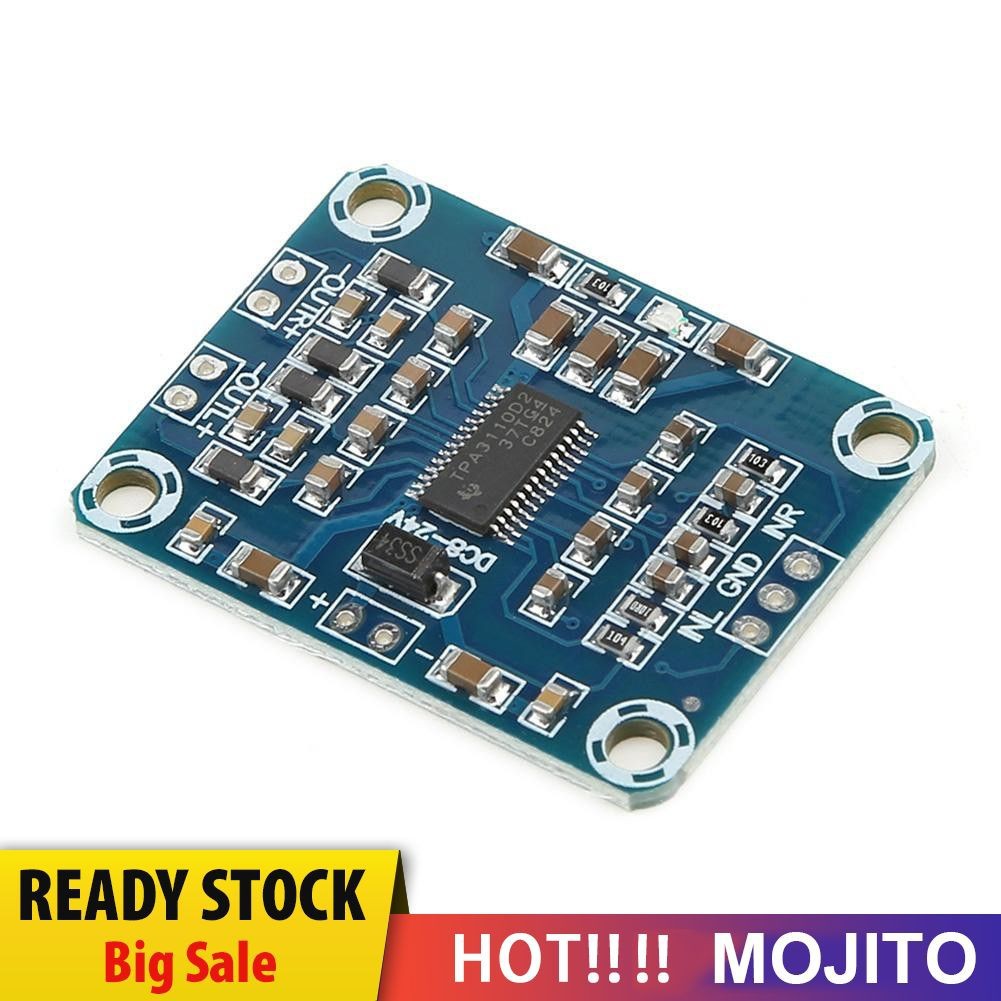

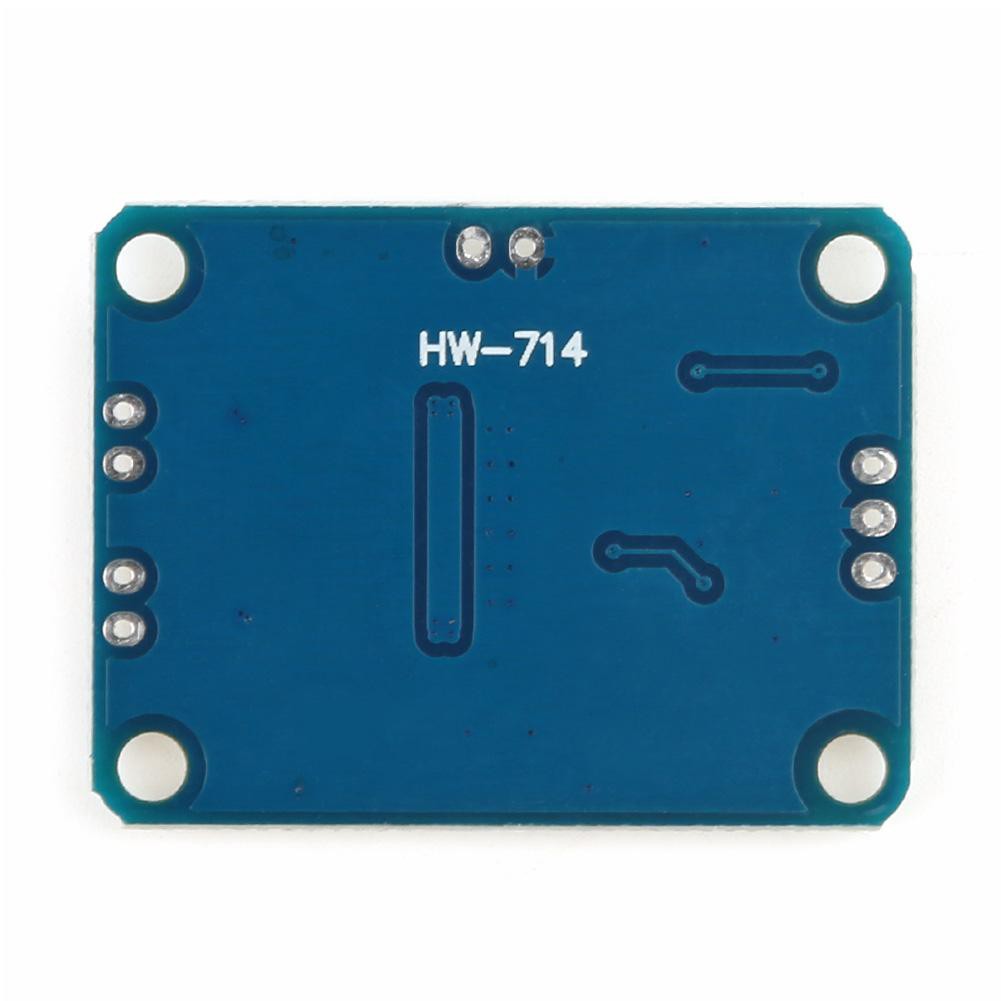

2X15W Digital Audio Stereo Amplifier Module Board TPA3110 12V Class D Power AMP Board
Feature:
1. The 2.0 channel 2*15W high power mini digital power amplifier board adopts TPA3110 power amplifier chip.
2. The chip does not need heat sink, but also has the function of overcurrent and overheating.
3. This power amplifier board is designed by the improvement of the official standard circuit.
4. It increases the power supply protection against reverse protection and 2 new design low pass filtering, and the bass thrust is stronger.
5. This product has no interference and no need for shielding treatment.

Specification:
Power amplifier chip: TPA3110
Output power: 15W*2
Working voltage: DC DC12V-24V
Working current: static: 8MA; maximum: 3A
Efficiency: ≥90%
Signal to noise ratio: 100dB
Frequency range: 20Hz-20KHz
Trumpet: 4-8ohm
Product use: audio power amplification
Product size: 35mm*25mm*3mm/1.37*0.98*0.11''
Product weight: 5g
Package size: 77mm*60mm*3mm/3.03*2.36*0.11''
Packing weight: 6g

Note:
Please allow slight size differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understand.
