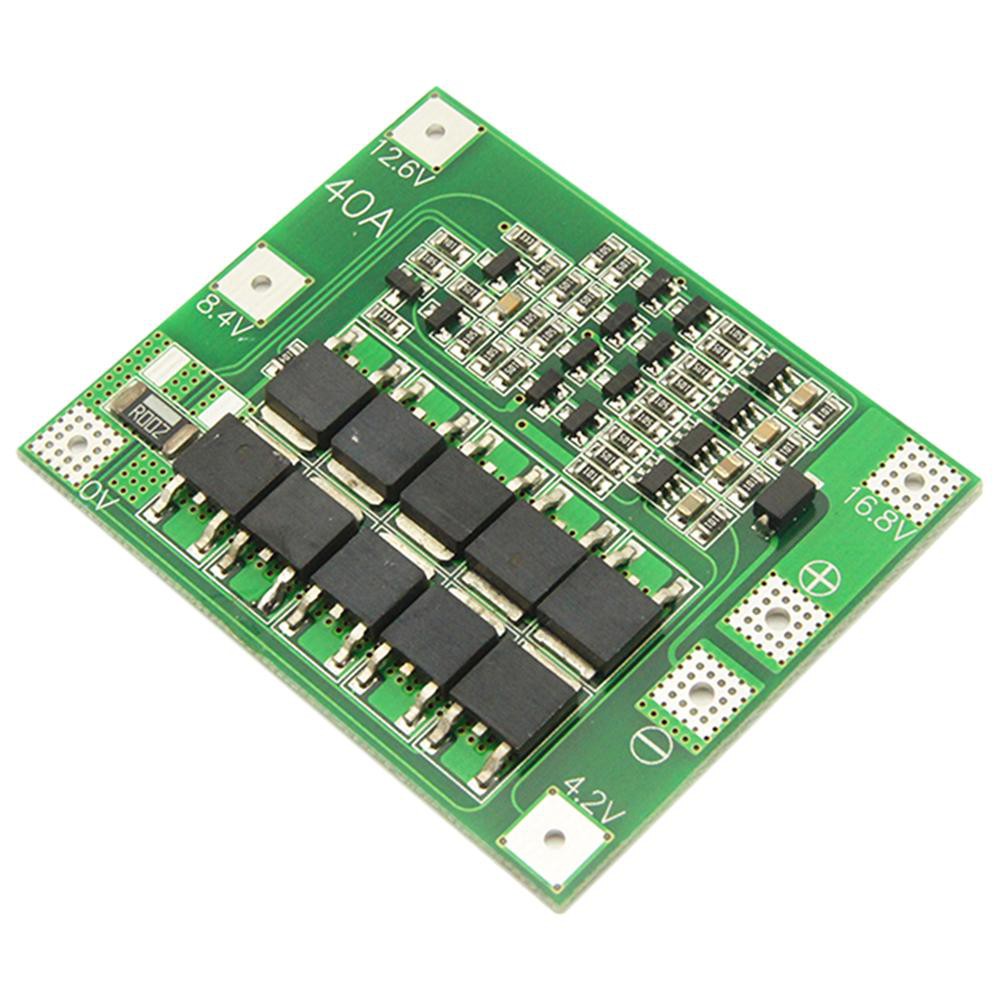

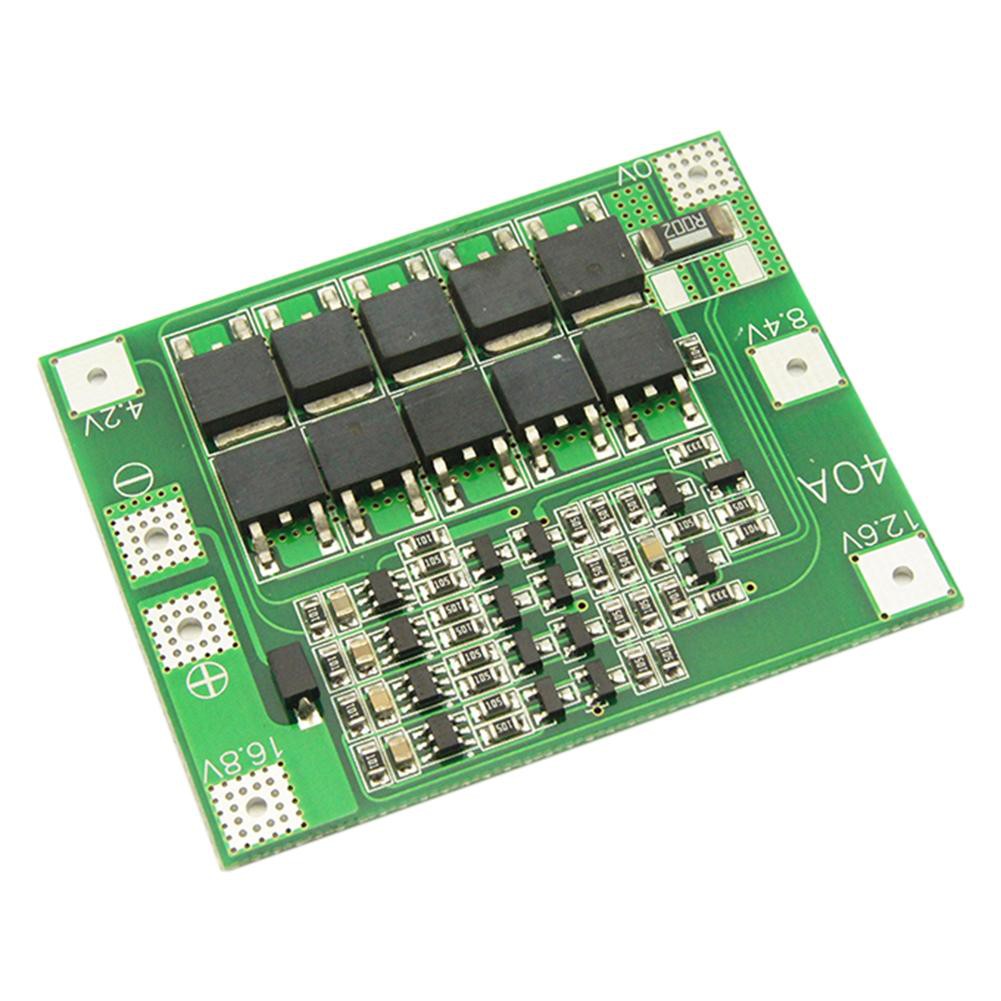

MOJITO 4S 16.8V 40A Lithium Battery Protection Board Li-on Battery Charger Module

Detail MOJITO 4S 16.8V 40A Lithium Battery Protection Board Li-on Battery Charger Module

Honey, welcome to MOJITO. Your smile is like a cup of mojito. I hope you can feel the romance and beauty here. The customer service will give you the most satisfactory service. The products here make you intoxicated, just like that cup of mojito~

Specifications:
Scope of application: nominal voltage 3.6V, 3.7V lithium battery (including 18650, 26650, polymer lithium battery)
Product size: 45 * 55 * 3.4mm/1.77*2.17*0.13" (standard version)
Product weight: 9.8g (standard)
Charging voltage: 16.8V - 18.1V
Continuous discharge current (upper limit): 40A (If the cooling environment is not good, please reduce the load current)
Continuous charging current (upper limit): 20A

Note:
1. The successful start of the drill requires four
10C-20C power batteries, or eight 5-10C power batteries, 0V 12.6V cable, and more than 3 square millimeters of copper wire (can not use nickel).
2. Strictly follow the wiring 0V, 4.2V, 12.6V, 16.8V, do not touch any components when welding the wire, do not intentionally short circuit.

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow slight measuring deviation due to manual measurement.
