Detail Module Step Down 20A 300W DC Adjustable Amp Volt CC Cv
Deskripsi Step Down 20A 300W DC Buck Converter Module Adjustable Amp Volt CC CV 20A 300W DC-DC Step Down Buck Converter Module Adjustable Amp Volt CC CV Modul sudah ditest sebelum dikirim
Specifications: Input Voltage: 6V to 40V DC (10V to 40V is suggested) Output Voltage: 1.2V to 36V DC Output Current: 20A (max.), 15A (suggested) Efficiency: 95% (24V to 12V, 20A) Output Ripple: '50mV Wiring Method: Terminal Short Circuit Protection: Self-recovery (cannot short circuit for long time) Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"

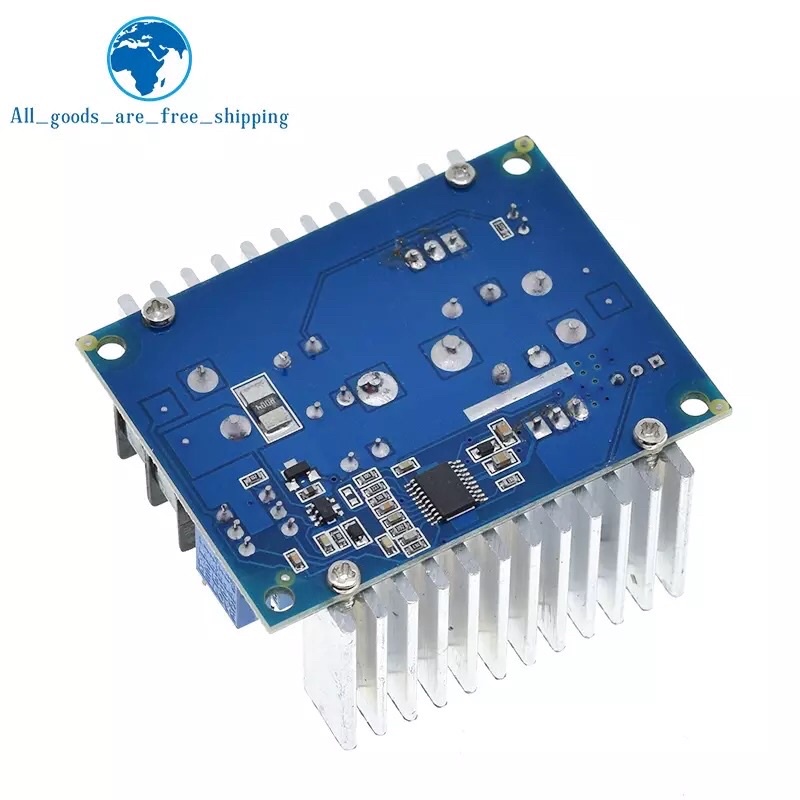

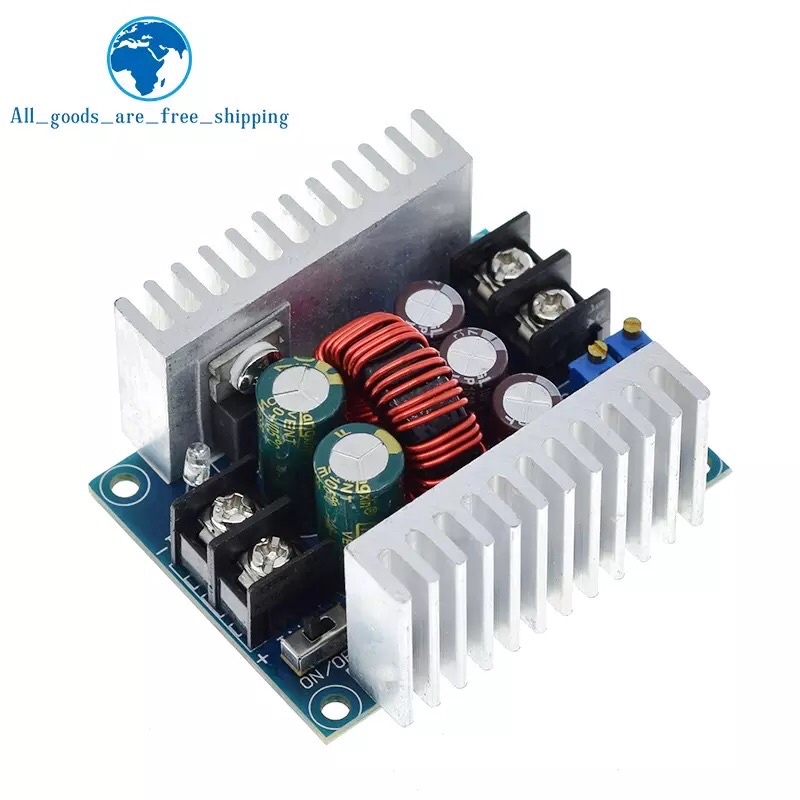

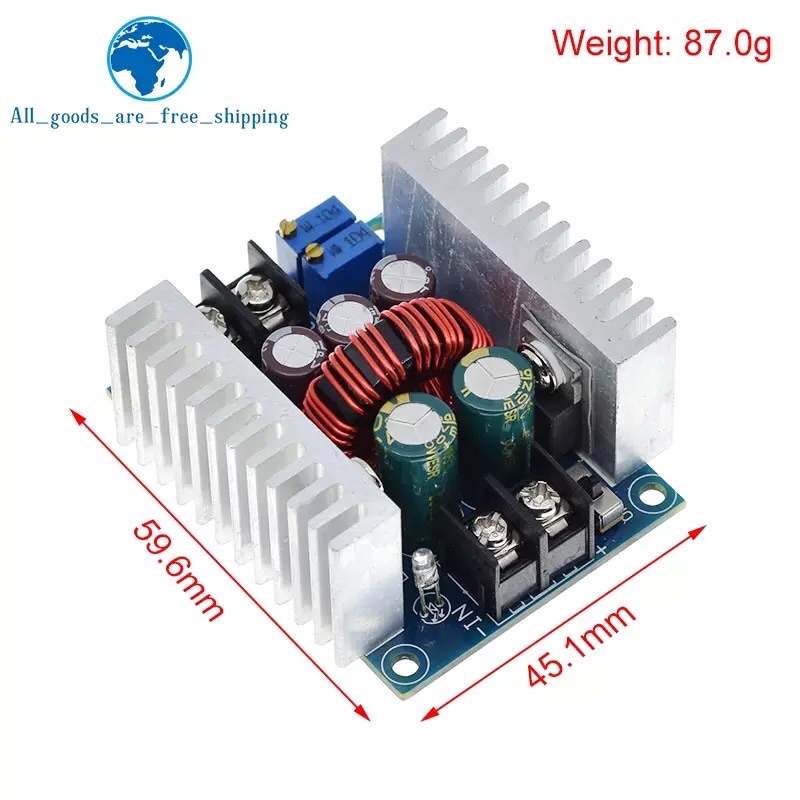

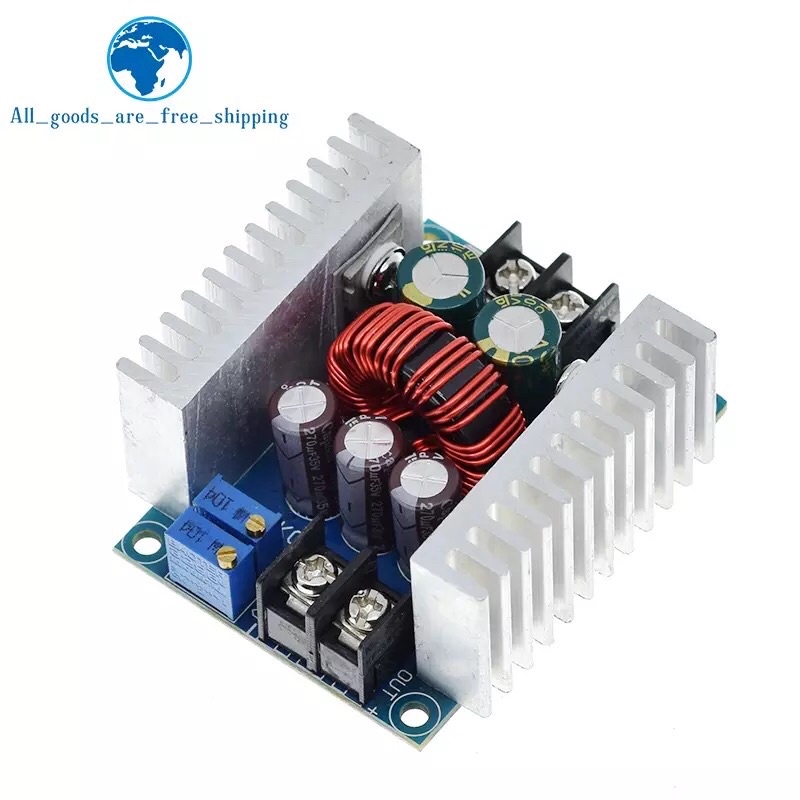

Gambar produk
Module Step Down 20A 300W DC Adjustable Amp Volt CC CvModule Step Down 20A 300W DC Adjustable Amp Volt CC CvModule Step Down 20A 300W DC Adjustable Amp Volt CC CvModule Step Down 20A 300W DC Adjustable Amp Volt CC Cv
