MODULE RELAY 5V 1 CHANNEL 5V KY-019 ACTIVE HIGH TRIGER RELAY 1 CHANNEL

Detail MODULE RELAY 5V 1 CHANNEL 5V KY-019 ACTIVE HIGH TRIGER RELAY 1 CHANNEL

REL-0004
==========

Deskripsi:
==================
Kita ada barang baru nih akang teteh sekalian barangnya yaitu RELAY 1 CHANNEL 5V KY-019 ACTIVE HIGH

Relay 1 channel ini bukan kaleng-kaleng yah daya tahannya lebih bagus terus dapat mengendalikan berbagai peralatan, dan peralatan lain dengan arus besar. Itu dapat dikontrol langsung oleh Microcontroller seperti Arduino UNO dll.

jadi tunggu apalagi langsung aja di order yah :-))

Spesifikasi:
==================
- 5V-12V to TTL control signal (Active High)
- The control signal DC or AC, 220V AC load can be controlled.
- There is a normally open and one normally closed contact
- A power indicator light
- A control indicator, pull off, disconnect does not shine
- Transistor drive to increase the relay coil control pins high impedance.
- The control pin has a pull-down circuit to prevent malfunction relay vacant
- Equipped with fixed screw holes, easy to install,
- Size 1.8cm*4.0cm*1.9cm

Paket
==================
1 x RELAY 1 CHANNEL 5V KY-019 ACTIVE HIGH

UNTUK HARGA GROSIR CHAT US ^^

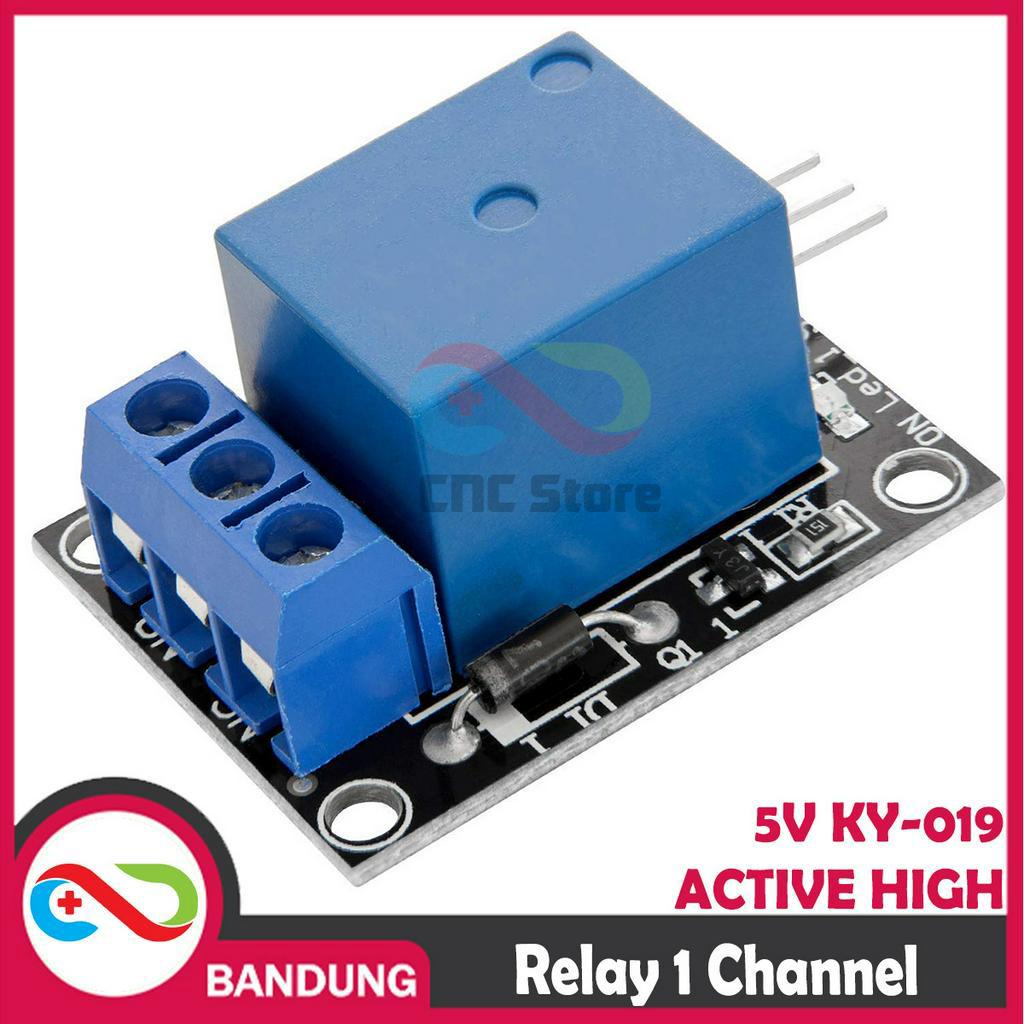

Gambar produk
