Module Power Bank Mainboard Circuit Board 5V 2A

Detail Module Power Bank Mainboard Circuit Board 5V 2A

DIY Circuits 3.7V To 5V 1A 2A Boost Module DIY Power Bank Mainboard Circuit Board Dual USB Charging
Mobile Phone Circuits

Features:
1. 4 level LED lights show power, non-working state smart automatic shutdown;
2. Built-in lithium battery protection IC, overcurrent, overvoltage, undervoltage protection;
3. Dual USB output;
4. Motherboard size: 69 x 32 x 8mm(L x W x H)

Product basic parameters:
Input port: Micro USB (Android port)
Input requirements: 5V constant voltage power supply can be used for charging input power, the most matching charger is 5V 1A or more
Output port: USB
Output parameters: 5V 1A / 5V 2A

Requirements for rechargeable batteries:

Available battery(3.7V-4.2V polymer lithium battery):
18650 battery, mobile phone battery, flat battery, MP3 battery, can choose single cell power supply, or multiple cell parallel power supply(does not support the series). (Note: increasing capacity in parallel and increasing voltage in series, can only be used in parallel!)

Can be connected in parallel with 2-6 pcs 18650 batteries!!!

Batteries are not available:
Dry cells, batteries, 1.2V rechargeable batteries, nickel hydrogen batteries, 3.2V iron lithium polymers, lithium batteries, etc.

Product installation should pay attention to the following points:
1. The battery should be connected in parallel, only the voltage between 3.2-4.2V can work, 18650 flat head and polymer batteries are available;
2. The battery is connected to the motherboard, B+ stands for the positive pole, B- stands for the negative pole, if it's connected reversely will burn the motherboard;
3. The old batteries and new batteries, the batteries which model and brands are inconsistent, these battery can not be mixed.

Package included:
1 x 3.7V to 5V 2A boost modul Circuit


Baca sebelum membeli (dengan membeli berarti anda setuju dgn kondisi yg tertera).
- untuk pembelian berbagai jenis KIT (ampli / step up / stepdown) TIDAK BISA RETUR karena semua produk sudah lolos QC.
- TIDAK BISA RETUR juga dikarenakan produk jenis KIT adalah produk yg sangat sensitif dengan pemasangan yg salah.
- Jika anda tidak yakin dengan kualitas produk anda bisa mencoba membeli sedikit dulu untuk mengetest kualitas produk.

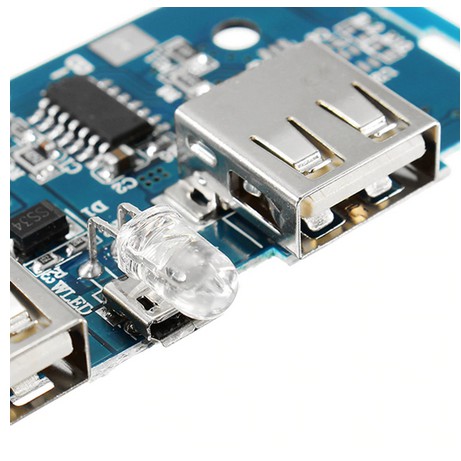

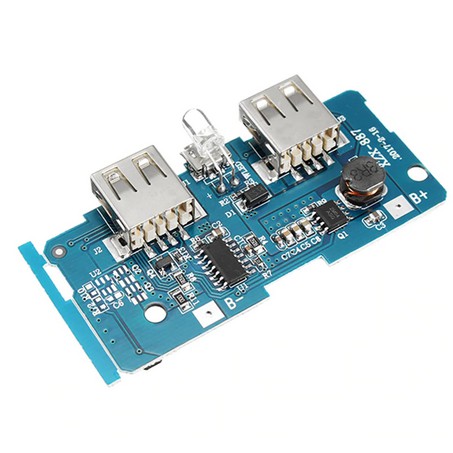

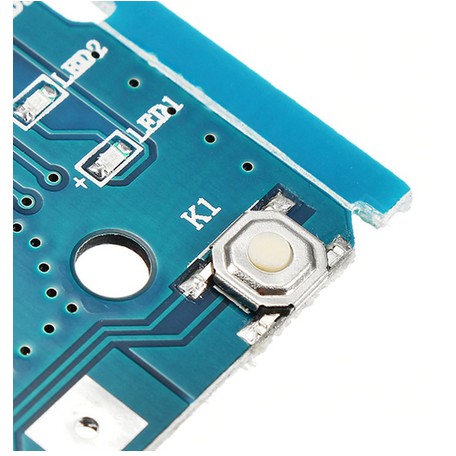

Gambar produk
