Detail Module New Gsm sim800l v2 GSM micro sim card Wireless Extension quad band Antenna Cable Arduino 5V

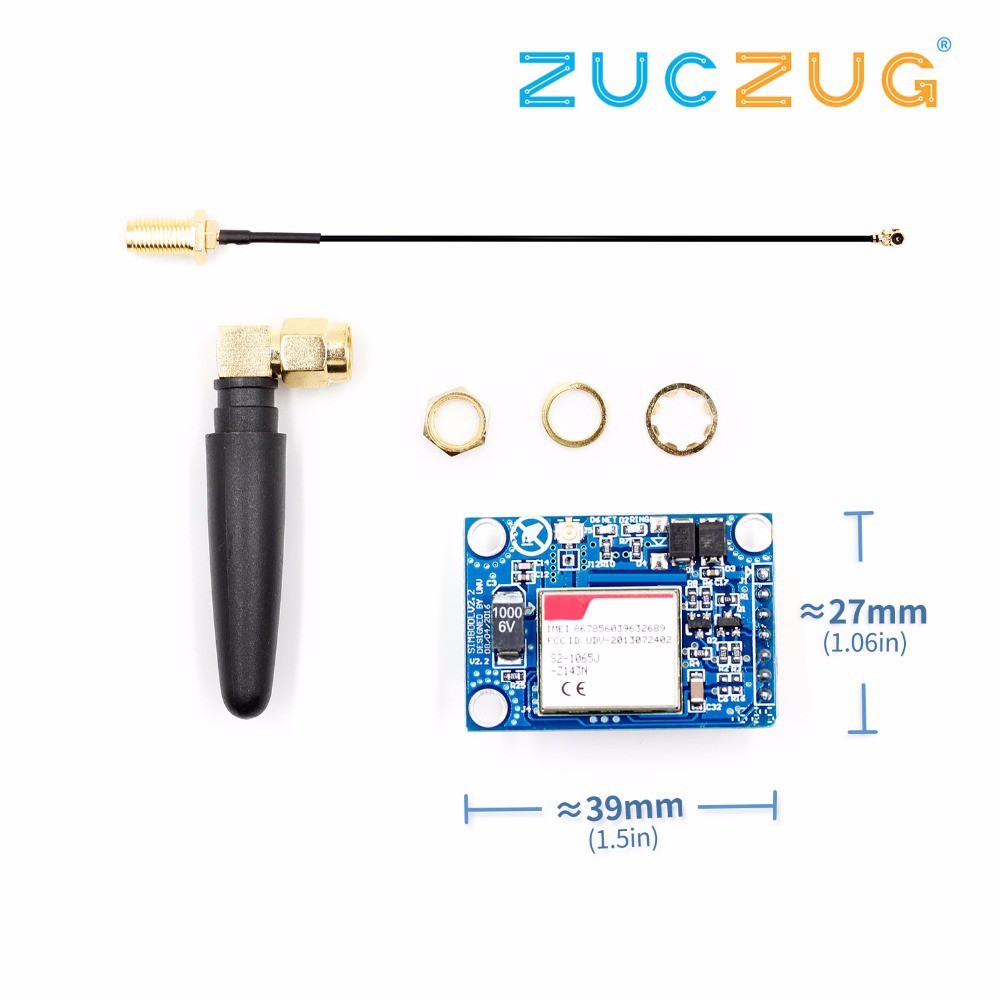

Package Included:
1 x SIM900A V4.0 kit
1x Power Cable
1x Antenna


Features:
The onboard two set power supply interface VCC5 5V power supply, VCC4 interface, 3.5--4.5V power supply,

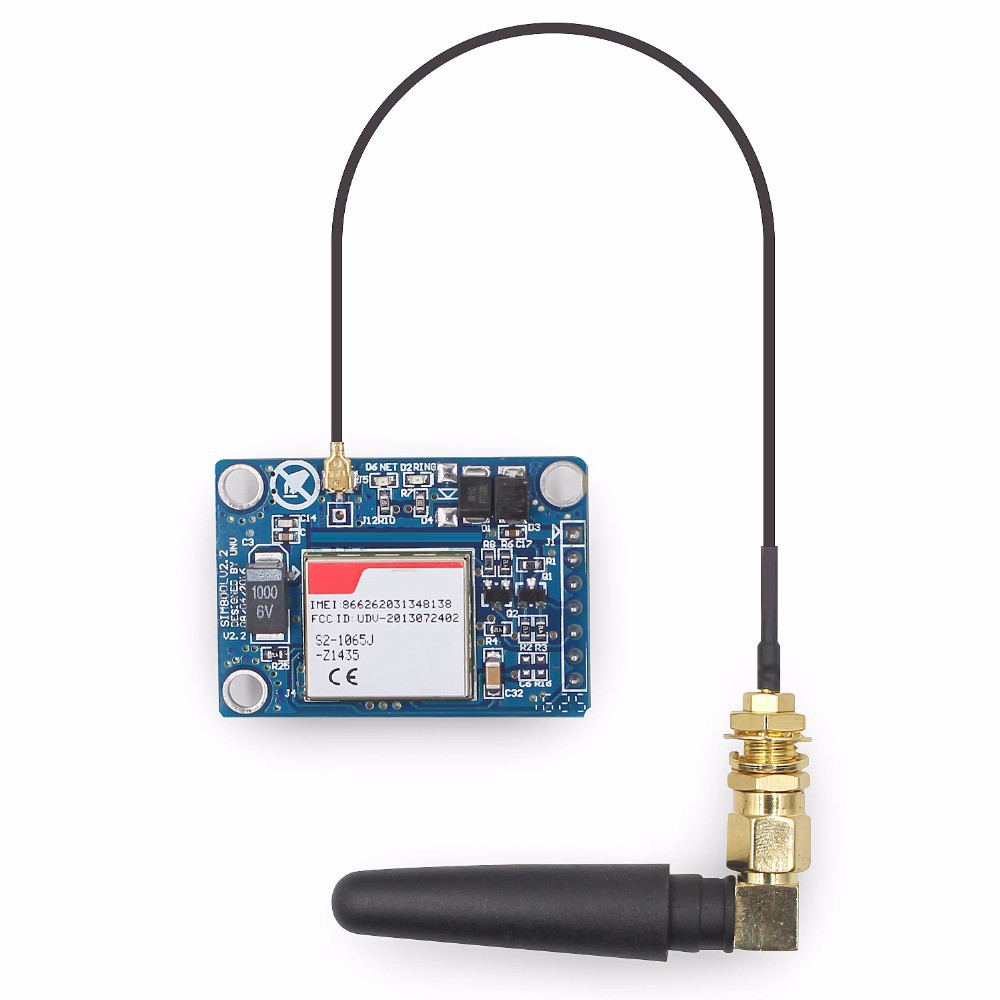

The onboard SMA (default) and IPXmini antenna interface, SIM900A interface reserved reset.
a very large amount of data under the condition of the recommended current more than 1A.
Support 2, mobile phone 3,4G card.
The serial port circuit: support for 3.3V single chip microcomputer. TTL serial port support 3.3 and 5V single chip microcomputer.
Antenna circuit: guarantee short and straight, so as to ensure the signal strength.
Two power supply interface: VCC5, 5V DC above 1A. Computer 5V power supply can be early computer USB. DC long data circuit over larger recommended 5V1A. VCC4, 3.5--4.5V power supply, suitable for lithium battery.
A TTL level, compatible with 3.3V and 5V.

The control interface of each pin description:
GND - GND
SIMR SIM900A RXD, TTL level, can not be directly connected to the 232 level
SIMT SIM900A TXD, TTL level, can not be directly connected to the 232 level
RST - SIM900A reset, active low
VCC_MCU when the SIM900A module and 5V TTL level communication, this pin is connected to DC 5V; when the level of communication of SIM900A and 3.3V TTL, this pin is connected to DC 3.3V.
VCC5----DC 5V input.
VCC4------DC3.5--4.5 input

Specifications:
Size:49mm x 47mm
