Module MP3 Bluetooth 2 x 5 Watt With Microphone 3.7-5V

Detail Module MP3 Bluetooth 2 x 5 Watt With Microphone 3.7-5V

Microphone function
Bluetooth version 5.0
Power supply voltage: 5V (range 3.7V-5V) and current not less than 2A.

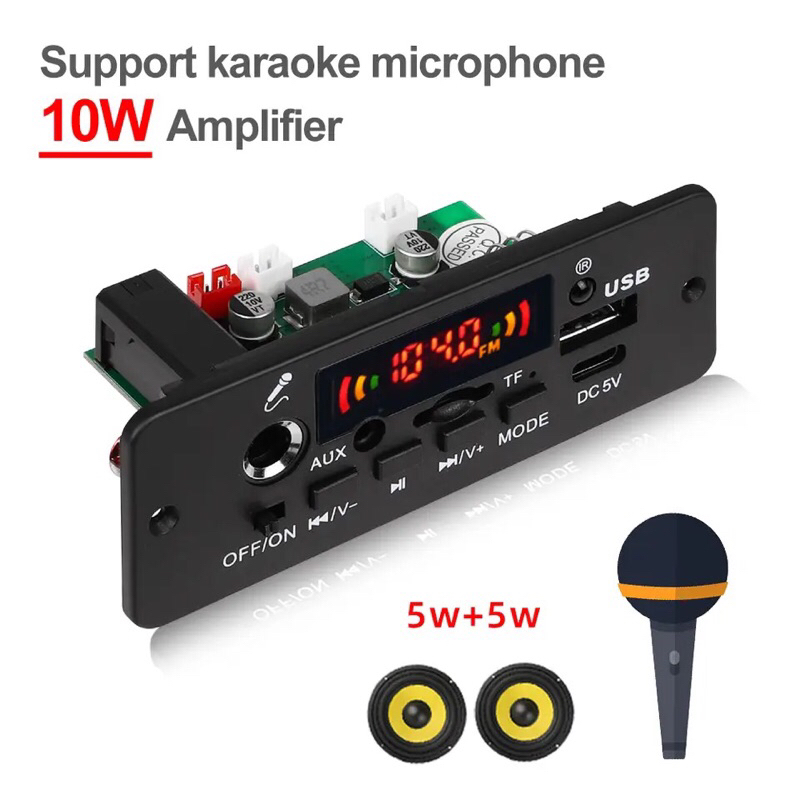

Power: 2*5W, and two 5W speakers can be connected at the same time.
Connect the microphone function,
Folder switching function
Music format: MP3/WMA/WAV/APE/FLAC lossless music format.
Radio FM frequency: 87.5—107.5mhz.

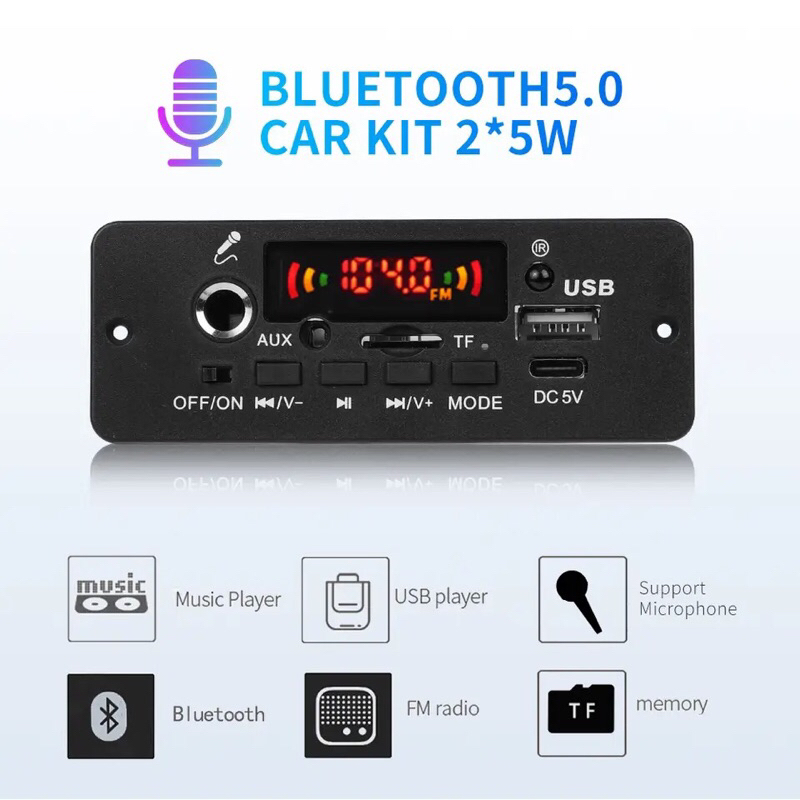

Introduction of support function: Support MP3/USB/TF/LINE IN/FM/Bluetooth/remote control/DC 5V.

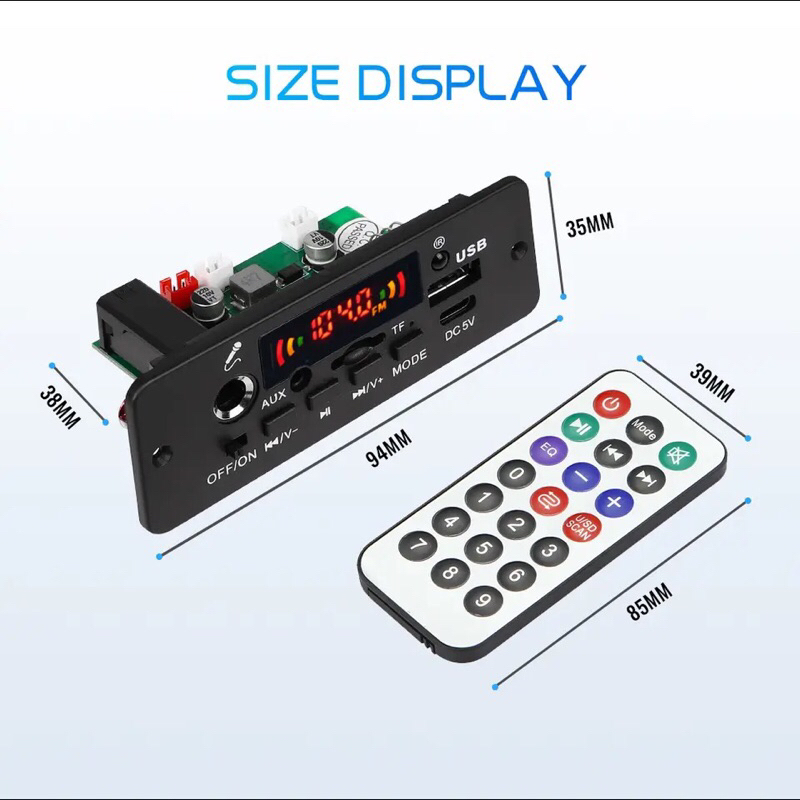

About structure: panel size: 94 * 35 MM, two corners of the panel and the position of screw holes, and the depth of the panel is 38 mm.

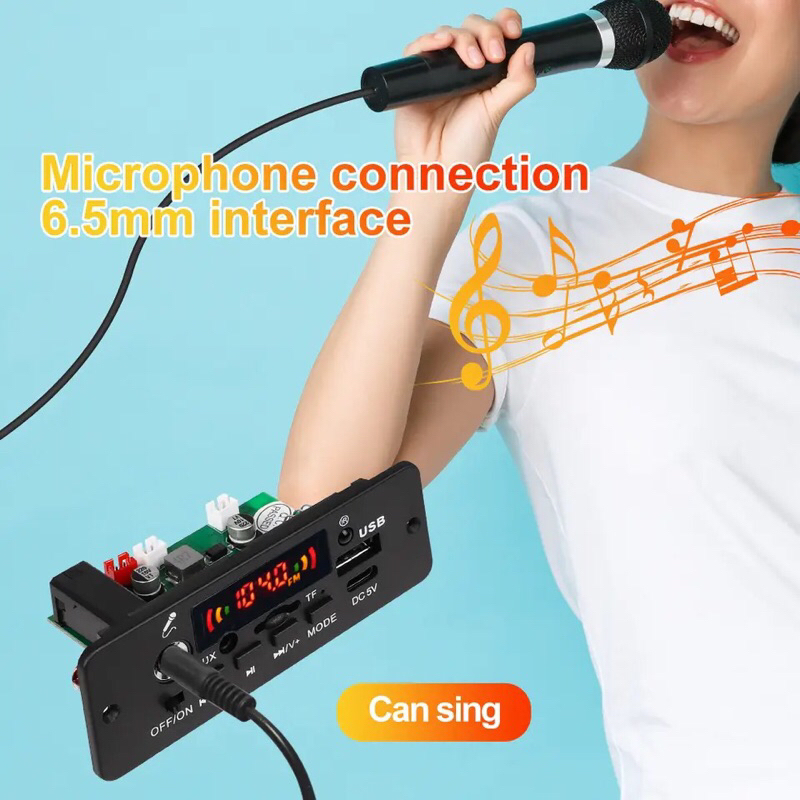

1. Microphone interface;
2. IR: infrared receiving module;
3, LED: color screen display, digital display in red;
4. USB: Connect a U disk (maximum support 32 GB);
5. OFF/ON: power switch;
6, VOL-: short press is to select the previous song; Long press is to reduce the volume; Double-click to switch to the previous folder;
7. AUX: Audio input interface;
8. SCAN: Short press is to switch between pause and play; In FM state, short press is an automatic station;
9. TF card: connect TF memory card (maximum support 32 GB);
