Module Mini USB 24 channels steering gear controller USC-24 (1528)

Detail Module Mini USB 24 channels steering gear controller USC-24 (1528)

Module mini USB 24 channels steering gear controller steering gear control board steering gear driver USC-24 (wire feed) (1528)

Product parameters:

1. Control chip power supply range: 6.5V~12V or 4.5V~5.5V. (Why are there two ranges? Because there are two input terminals) (USB can supply power to the chip of the steering gear control board, automatic selection, with USB reverse protection, which can protect your computer from being burned by the reverse USB voltage)

2. The power supply range of the steering gear: DC (the voltage is related to the parameters of the steering gear, generally 5V DC is used).

3. Control channel: control 16 channels at the same time. (The speed of the steering gear is precisely adjustable, and the robot moves smoothly and freely)

4. Communication input: USB or serial port (TTL, USART). (You can use a wireless Bluetooth module or other wireless modules to wirelessly control the steering gear controller)

5. Signal output: PWM (accuracy 1us).

6. Servo motor drive resolution: 1us, 0.09 degrees.

7. Baud rate range: 9600 19200 38400 57600 115200 128000. (Fully automatic recognition, no need to set)

8. Supported servo motors: Futaba or Hitec and domestic brands such as Fraser, which kill all servos controlled by PWM signals.

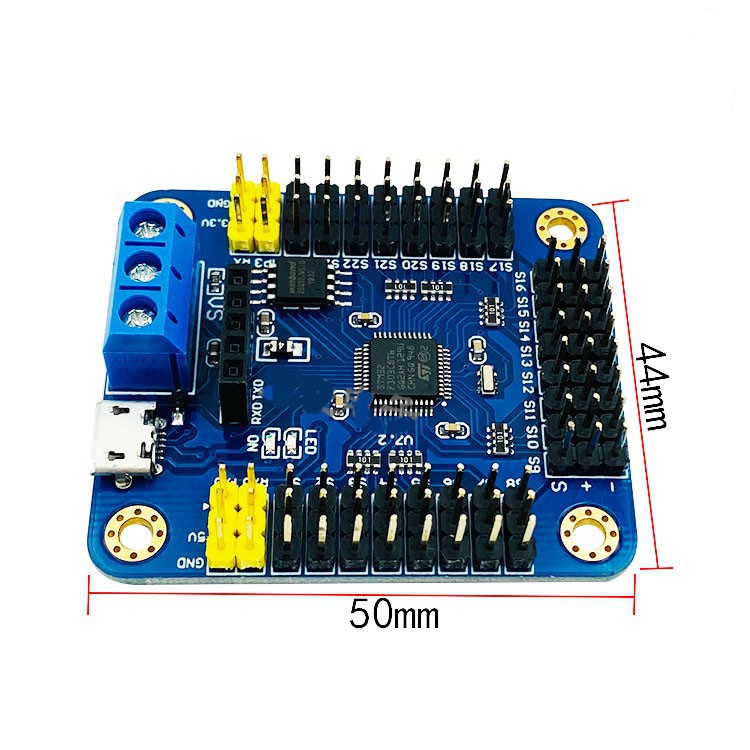

9. PCB size: 51mm×43.5mm×1.6mm (installation hole spacing: 42*35.5mm).

10. Control mode: USB and serial port (TTL) accept commands. (Comes with USB data cable and host computer control software, the software can be upgraded at any time)

11.flash: Onboard 512K ROM. (If each command is to control 32 servos at the same time, more than 500 commands can be saved. If the commands are very short, saving thousands of them is not a problem)

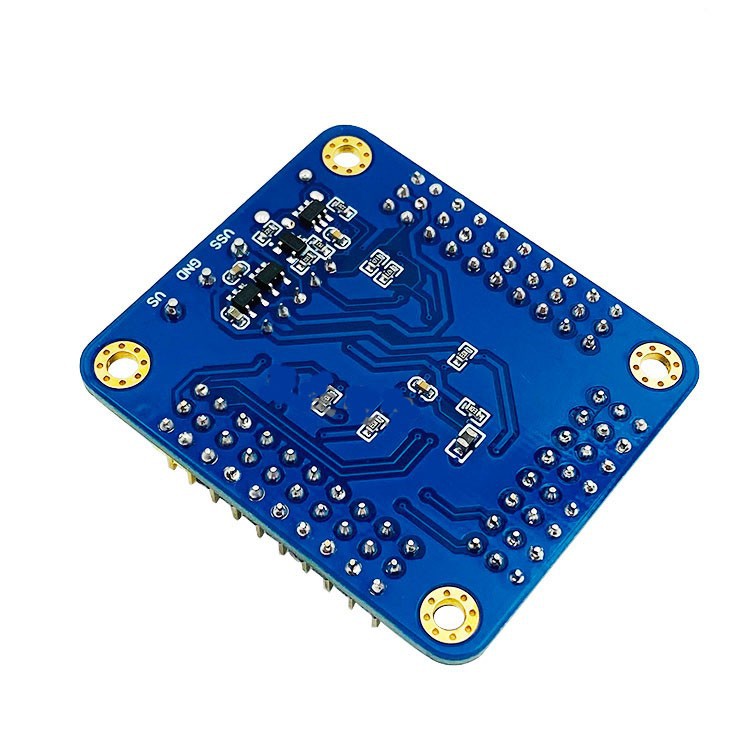

Gambar produk
