Module Mini MP3 Bluetooth 4.1 Lossless Speaker Decoder Amplifier Board Stereo Receiver Input Dc 3.7-5V USB TF SD Card
Deskripsi singkat
Elektronik > Perangkat Audio & Speaker > Amplifier & Mixer > Module Mini MP3 Bluetooth 4.1 Lossless Speaker Decoder Amplifier Board Stereo Receiver Input Dc 3.7-5V USB TF SD Card
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Module Mini MP3 Bluetooth 4.1 Lossless Speaker Decoder Amplifier Board Stereo Receiver Input Dc 3.7-5V USB TF SD Card
Harga untuk 1 Pcs.1 GRATIS DUS PACKING
1 GRATIS BUBBLE WRAP
Harga Tertera:

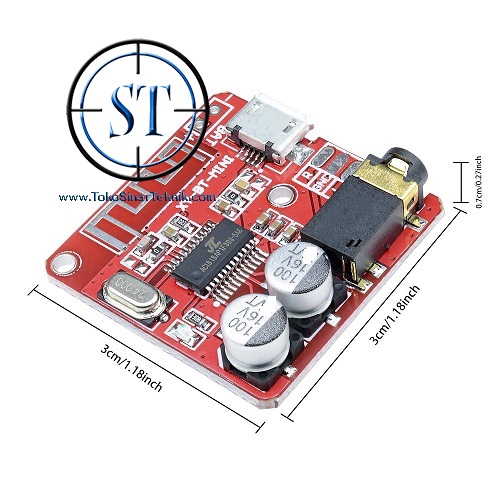

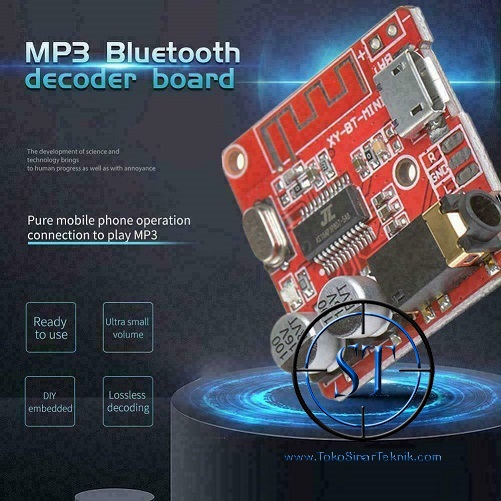

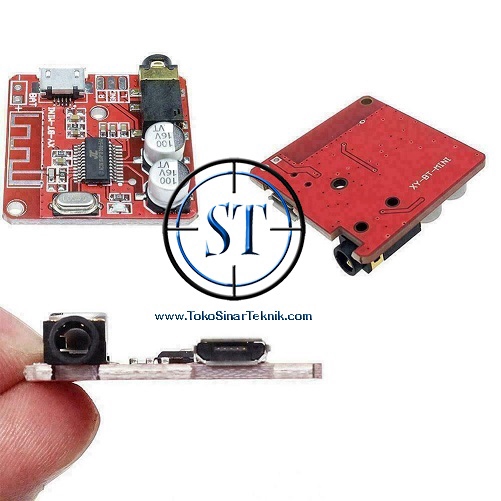

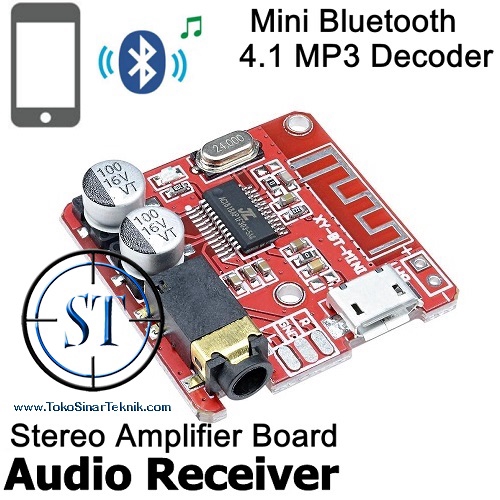

1Pcs MP3 Mini Bluetooth BLE 4.1 Decoder Board
Parameter characteristics:
Power Supply: DC 3.7 - 5V
SNR 90dB
THD+N -70dB
Crosstalk -86dB
DNR 91dB
Support Profile A2DP/AVCTP/AVDTP/AVRCP/HFP
LOS >15m
Interface details:
USB powered Universal Micro USB 5V power supply
3.7-5V Supply Pad External 3.7-5V lithium battery power conversion
LED indicator Bluetooth mode long blue light
3.5mm stereo audio interface Standard 3.5mm interface, output stereo sound source, plug in headphones, connect amplifiers and other devices
1>.Connect input power from Micro USB or pads.The power indicator LED will ON.
2>.Connect to headset or speakers or amplifier.
3>.It will into Bluetooth mode and it is ready to pair after power on.
4>.Bluetooth name is ‘ XY_BT ’.
5>.Pair and connect to Bluetooth.You will hear the prompt voice ”The Bluetooth device is connected successfully”.
6>.Play music.
Gambar produk
