Module hsm-20g hsm20g hsm20 temperature humidity sensor

Elektronik > Elektronik Lainnya > Module hsm-20g hsm20g hsm20 temperature humidity sensor
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:arduinounoLihat semua produk Elektronik oleh arduinouno
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Module hsm-20g hsm20g hsm20 temperature humidity sensor

Specification:
- Input Voltage: DC 5.0 +/- 0.2V
- Output Voltage: DC 1.0 - 3.0V
- Measurement accuracy +/- 5% RH
- Operating current maximum: 2mA
- Storage RH range 0 to 99% RH
- Operating RH range 20 to 95% RH (100% RH intermittent)
- Transient Condensation 3 %RH
- Temperature storage -20C to 70C
- Temperature operating 0C to 50C
- Hysteresis (RH@25C) Max 2%RH
- Long term stability (typical drift per year) +/- 1.5%
- Linearity
- Time Response (63% step change) 1 min
- Dimension (L*W) 34mm * 22mm

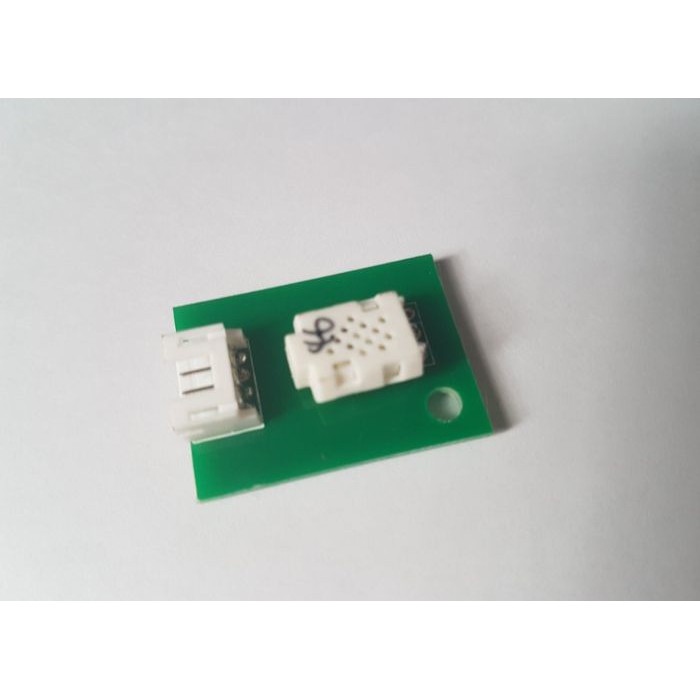

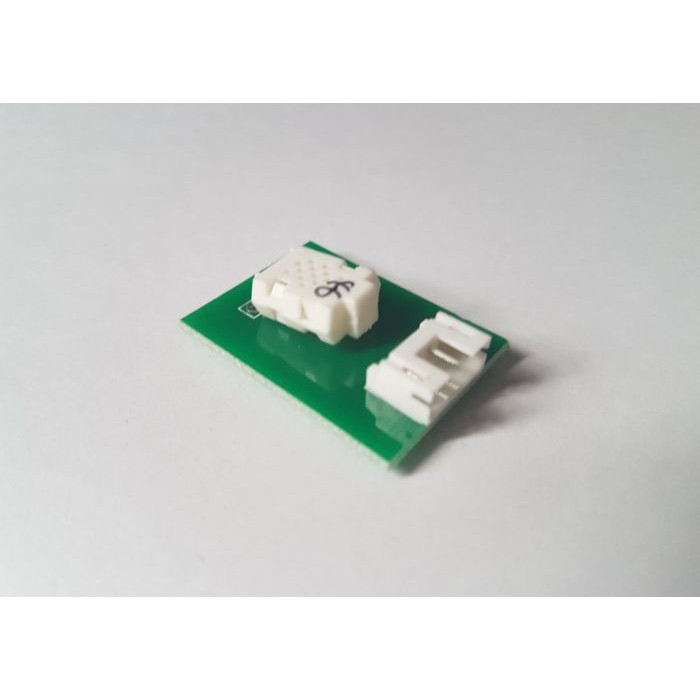

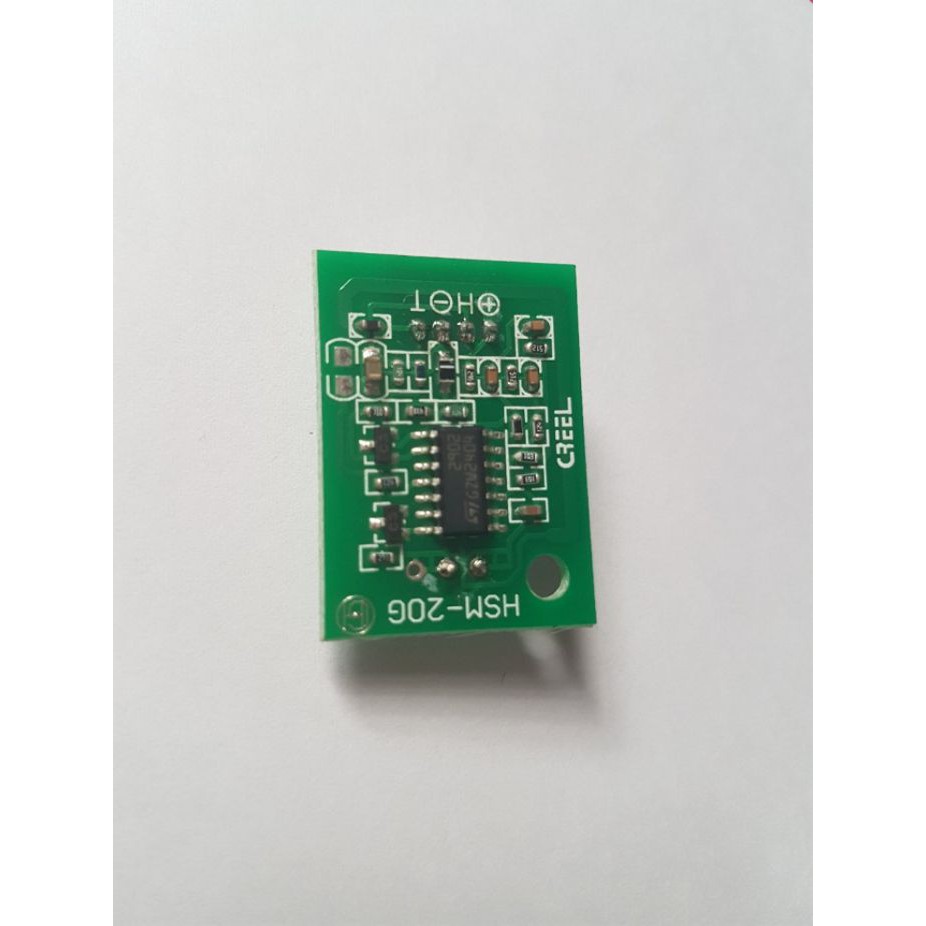

Gambar produk

Module hsm-20g hsm20g hsm20 temperature humidity sensor
Module hsm-20g hsm20g hsm20 temperature humidity sensor
Module hsm-20g hsm20g hsm20 temperature humidity sensor
Module hsm-20g hsm20g hsm20 temperature humidity sensor
Module hsm-20g hsm20g hsm20 temperature humidity sensor
Module hsm-20g hsm20g hsm20 temperature humidity sensor
Lihat lebih banyak informasi produk
