Detail Module Frequency Wireless Receiving dan Transmitting 433Mhz(8149)

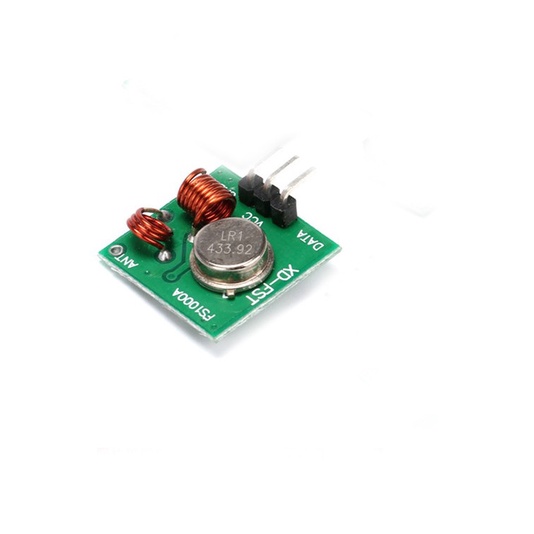

Module Frequency Wireless Receiving dan Transmitting 433Mhz(8149)Spesifikasi TX:
Arus Kerja: Maximum <=40mA (12V), minimum <=9mA (3V);
Mode Resonan: SAW;
Mode Modulasi: ASK / OOK;
Frekuensi Kerja: 315MHz~433.92MHz (Frekuens dapat dicostumize);
Daya Transmiter/pemancar: 25mW (315MHz, 12V);
Frekuensi error: 150KHz (maximum);
Kecepatan: <= 10Kbps;
Ukuran: 30 x 14 x 7mm;
Antena Eksternal: 32cm single core, helically wound;

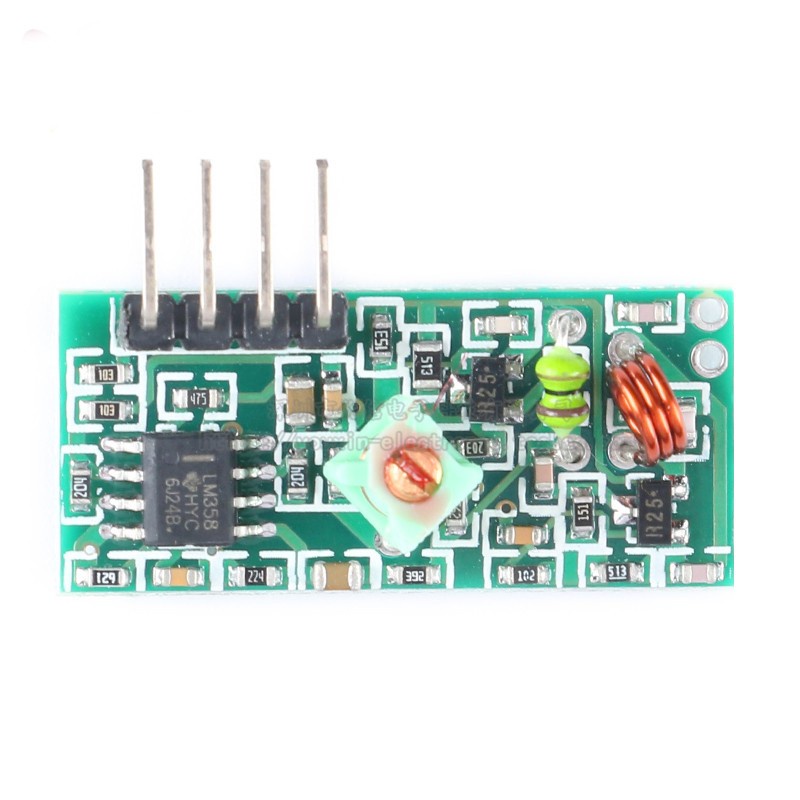

Spesifikasi RX:
Frekuensi Kerja: 315MHzz~433.92MHz (Special frequency can be customized);
Bandwidth: 2MHz (315MHz, the test result of lowing sensitivity 3dBm);
Ukuran: 19 x 19mm;
Antena Eksternal: 25cm multicore or single core wire
Range Pemancaran: 20~200 meters;
Kecepatan transmite: 4KB/s';
Daya Pemancar: 10mW;
Frekuensi Pemancar: 433MHz;
Pin (Kiri ke kanan): Data, VCC, GND;
Link Referensi: motorcycle, car prevention of burglary, home prevention of burglary, electrically operated gate, roller shutter door, roll-up window, remote control socket, remote control LED, acoustic remote control, remote control electrically operated gate, remote control retractable door, remote control roller shutter gate, pan door, remote control door machine and other lock control, remote curtains, alarm apparatus, remote motorcycle, remote MP3 player etc.

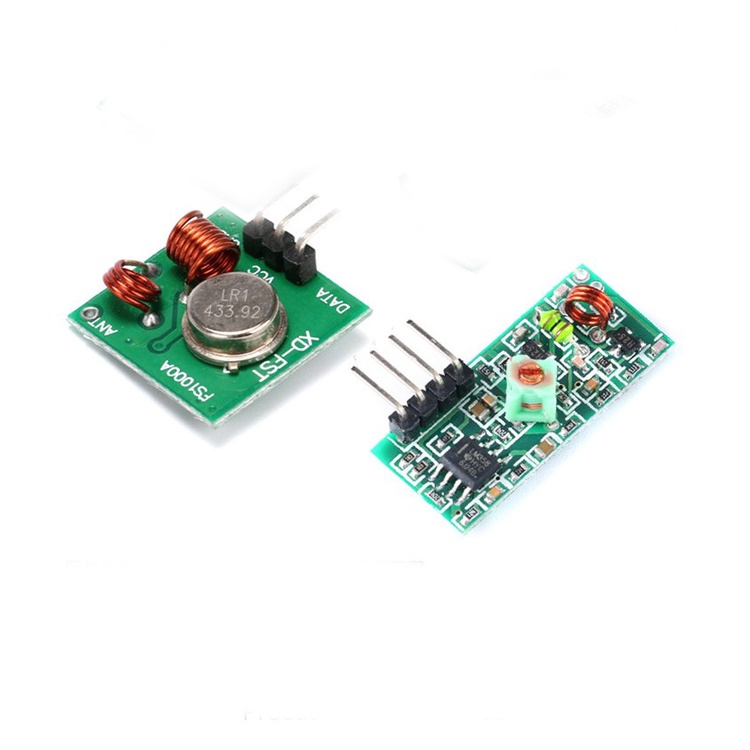

Gambar produk
