TPS61088 boost fast charging source module 3.2V3.7V4.2V to 5V9V12V mobile phone QC fast charging

Product parameters:

Name: Single-cell lithium battery boost fast charging source module
Main control chip: TPS61088A
Identification chip: FP6601Q
Input voltage: 2.8～4.5V, very suitable for 3.7V polymer lithium battery
Output voltage: The default is 5V, after triggering fast charge, it is between 4.5V and 12V according to the agreement.
Input rated current: 8A
Output current: 5V3A, 9V2A, 12V2A. The output current is adaptive.
Output power: maximum 24W.
Support agreement: QC2.0, QC3.0, Huawei FCP, DCP agreement
The efficiency can reach up to 93%, with a typical value of 90%.
Input wiring method: solder wire, use thicker wire as much as possible

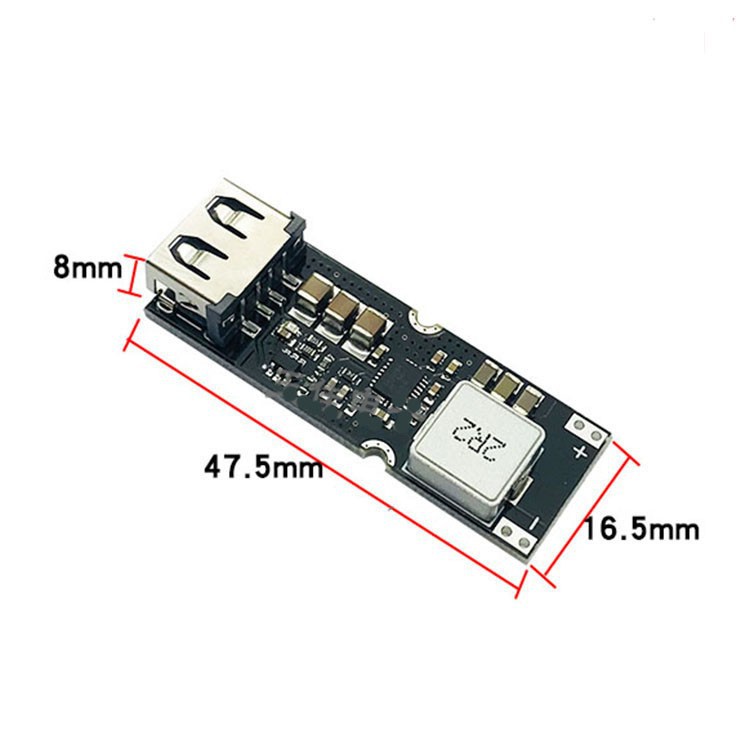

Module size: 47.5 (length) * 16.5 (width) * 8 (height) mm (including USB)
Module net weight: about 7 grams

feature of product:

Support FCP voltage and current output protocol.
Support Qualcomm QC2.0/3.0 classA 5V, 9V, 12V voltage output.
Automatically recognize FCP and QC2.0/3.0 fast charge protocol.
Support YD/T 1591 protocol equipment of Chinese telecom company.
