Module DC 600W 12 Ampere booster step up voltage current power

Detail Module DC 600W 12 Ampere booster step up voltage current power

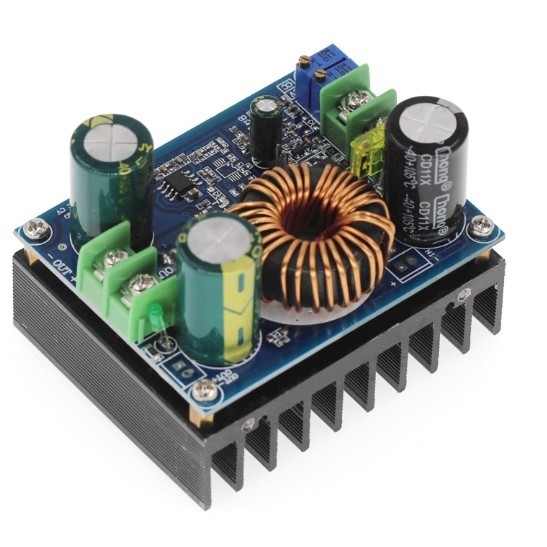

600W 12A DC-DC Boost Module Voltage Constant Current Power

Module Parameters:
Module Name: 600W boost constant current module, non-isolated
Input voltage 1: 12-60VDC (default range, for wide input voltage range applications)
Input voltage 2: 9-16VDC (for 3 lithium battery and 12V battery) ,

Input Current: 16A MAX. (over 10A,please enhance heat dissipation,such as 5cm cooling fan)

Quiescent Current: 15mA (when 12V
step up to 20V), if the output voltage is higher, the quiescent current will increase.)

Output Voltage : 12-80VDC (continuously adjustable),default output: 19VDC
Output Current: 12A Max. (over 10A,please enhance heat dissipation.), the greater the input and output voltage difference , the smaller the output current

Constant current range :0.1-12A
Output power: = Input voltage * 10A, such as: input 60V * 10A = 600W,if need more output power, such as need the output to 15A,two modules can be used in paralle, the current of each module can be adjusted to 8A.

Conversion efficiency: Up to 95%
Operating Frequency: 150KHz
Operating temperature: -40 to +85 c (if the ambient temperature is too high, please enhance heat dissipation)
Overcurrent protection: Yes (if the input exceeds 17A, automatically reduces the output voltage)

Short-circuit protection: Yes (20A input fuse,double short-circuit protection.)
Output feeding back protection:Yes (for charging,the separate output diode is not required.)

Input Reverse Polarity Protection:None (If need please install diode at the input port )

Application:
DIY a regulator power supply, input 12V, output can be 12-80V adjustable. / The power supply for electronic equipment. / Used as a car power supply, Power supply for laptop,PDA, or other digital products / DIY a laptop mobile power supply: 12V coupled with high-capacity lithium batteries, / Solar panel regulator / Batteries charger / Driving high-power LED lights
